TIRE PRESSURE WARNING SYSTEM

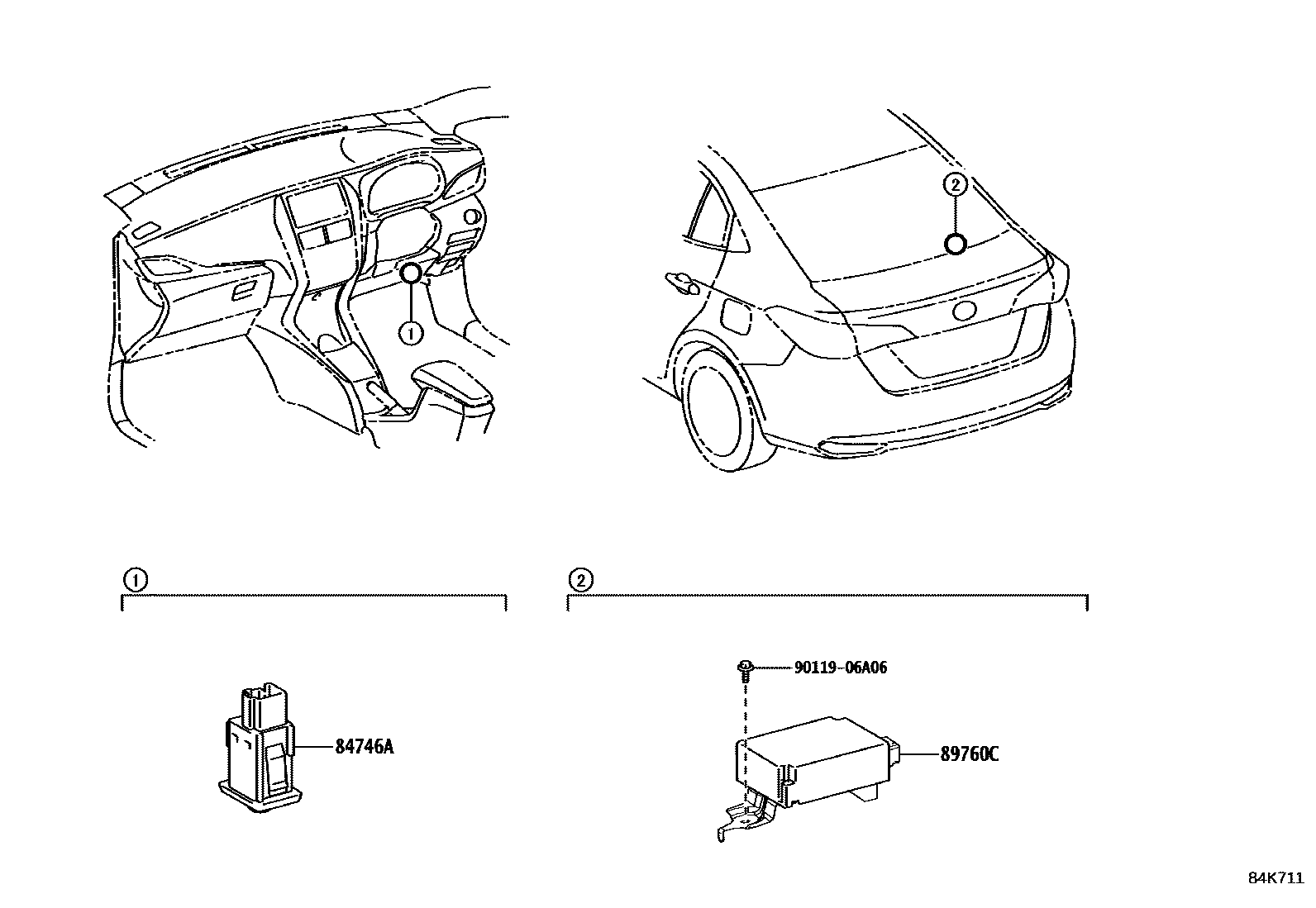

Parts diagram

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-50010i201908

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-52140i201908

9011906A06

main90119-06A06

3 parts on this diagram · 1 diagram in section
