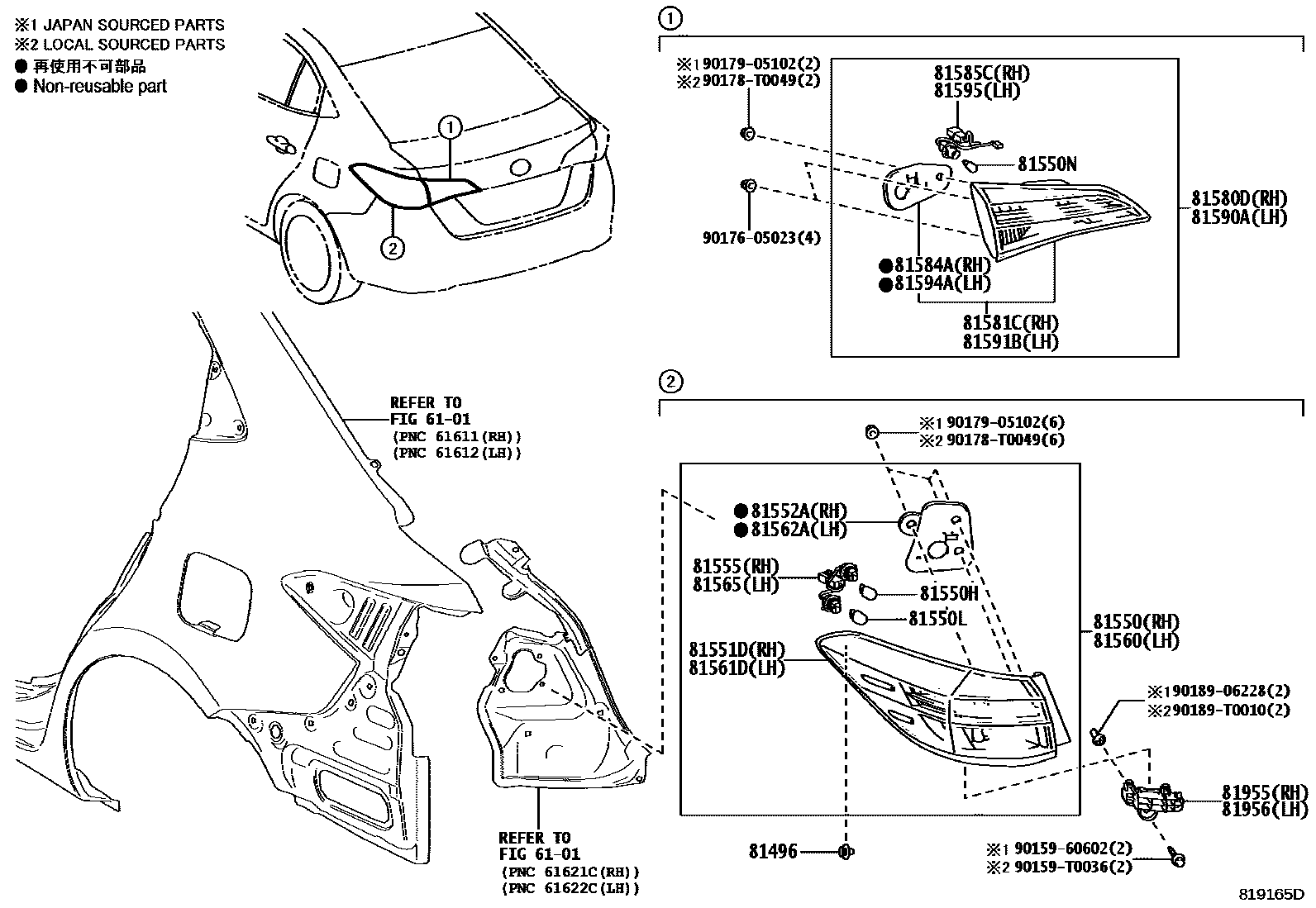

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iNSP151201908

(J)

main81497-0D070iNSP151201908

(L)

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0DA61iNSP151..G,V201908

main81550-0DA71iNSP151..D,R201908

81550HBULB, TAIL & STOP LAMP

main90981-13044iNSP151..D,R201908

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iNSP151201908

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iNSP151201908

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0DA61iNSP151..G,V201908

sub81550-0DA61

main81551-0DA71iNSP151..D,R201908

sub81550-0DA71

81552AGASKET, REAR COMBINATION LAMP, RH

main81554-0DA61iNSP151..G,V201908

main81554-0DA71iNSP151..D,R201908

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0DA61iNSP151..G,V201908

main81555-0DA71iNSP151..D,R201908

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0DA61iNSP151..G,V201908

main81560-0DA71iNSP151..D,R201908

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0DA61iNSP151..G,V201908

sub81560-0DA61

main81561-0DA71iNSP151..D,R201908

sub81560-0DA71

81562AGASKET, REAR COMBINATION LAMP, LH

main81564-0DA61iNSP151..G,V201908

main81564-0DA71iNSP151..D,R201908

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0DA61iNSP151..G,V201908

main81555-0DA71iNSP151..D,R201908

81580DLAMP ASSY, REAR, RH

main81580-0D510iNSP151..G,V201908

main81580-0D520iNSP151..D,R201908

81581CLENS AND BODY, REAR LAMP, RH

main81581-0D510iNSP151..G,V201908

main81581-0D520iNSP151..D,R201908

81584AGASKET, REAR LAMP RH

main81582-0D510iNSP151201908

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-0D510iNSP151..G,V201908

main81585-0D520iNSP151..D,R201908

81590ALAMP ASSY, REAR, LH

main81590-0D510iNSP151..G,V201908

main81590-0D520iNSP151..D,R201908

81591BLENS AND BODY, REAR LAMP, LH

main81591-0D510iNSP151..G,V201908

main81591-0D520iNSP151..D,R201908

81594AGASKET, REAR LAMP LH

main81592-0D510iNSP151201908

81595SOCKET & WIRE, REAR LAMP, LH

main81585-0D510iNSP151..G,V201908

main81585-0D520iNSP151..D,R201908

81955RETAINER, REAR COMBINATION LAMP, RH

main52562-0D140iNSP151201908

81956RETAINER, REAR COMBINATION LAMP, LH

main52563-0D140iNSP151201908

9015960602

main90159-60602

90159T0036

main90159-T0036

9017605023

main90176-05023

90178T0049

main90178-T0049

9017905102

main90179-05102

9018906228

main90189-06228

90189T0010

main90189-T0010

30 parts on this diagram · 2 diagrams in section
