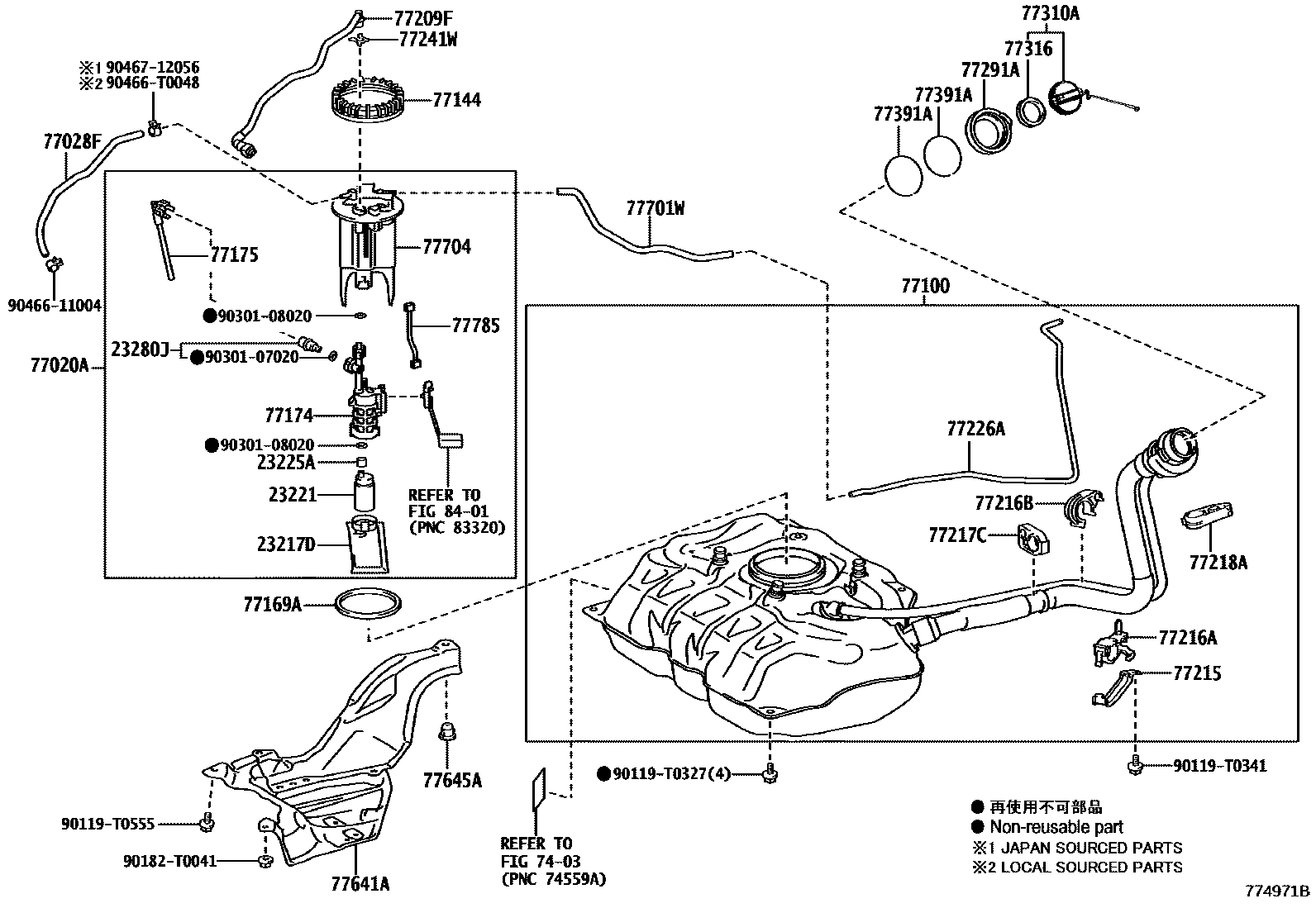

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
7403
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77028FTUBE SUB-ASSY, FUEL EMISSION, NO.2
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77215PLATE, FUEL TANK FILLER PIPE FLANGE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77241WCLIP, TUBE JOINT
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77641APROTECTOR, FUEL TANK, NO.1
77645ARETAINER, FUEL TANK PROTECTOR
77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1
77704CANISTER SUB-ASSY, CHARCOAL
77785HARNESS, FUEL PUMP
8401
90119T0327
main90119-T0327
90119T0341
main90119-T0341
90119T0555
main90119-T0555
90182T0041
main90182-T0041
9030107020
main90301-07020
9030108020
main90301-08020
9046611004
main90466-11004
90466T0048
main90466-T0048
9046712056
main90467-12056
39 parts on this diagram · 3 diagrams in section
