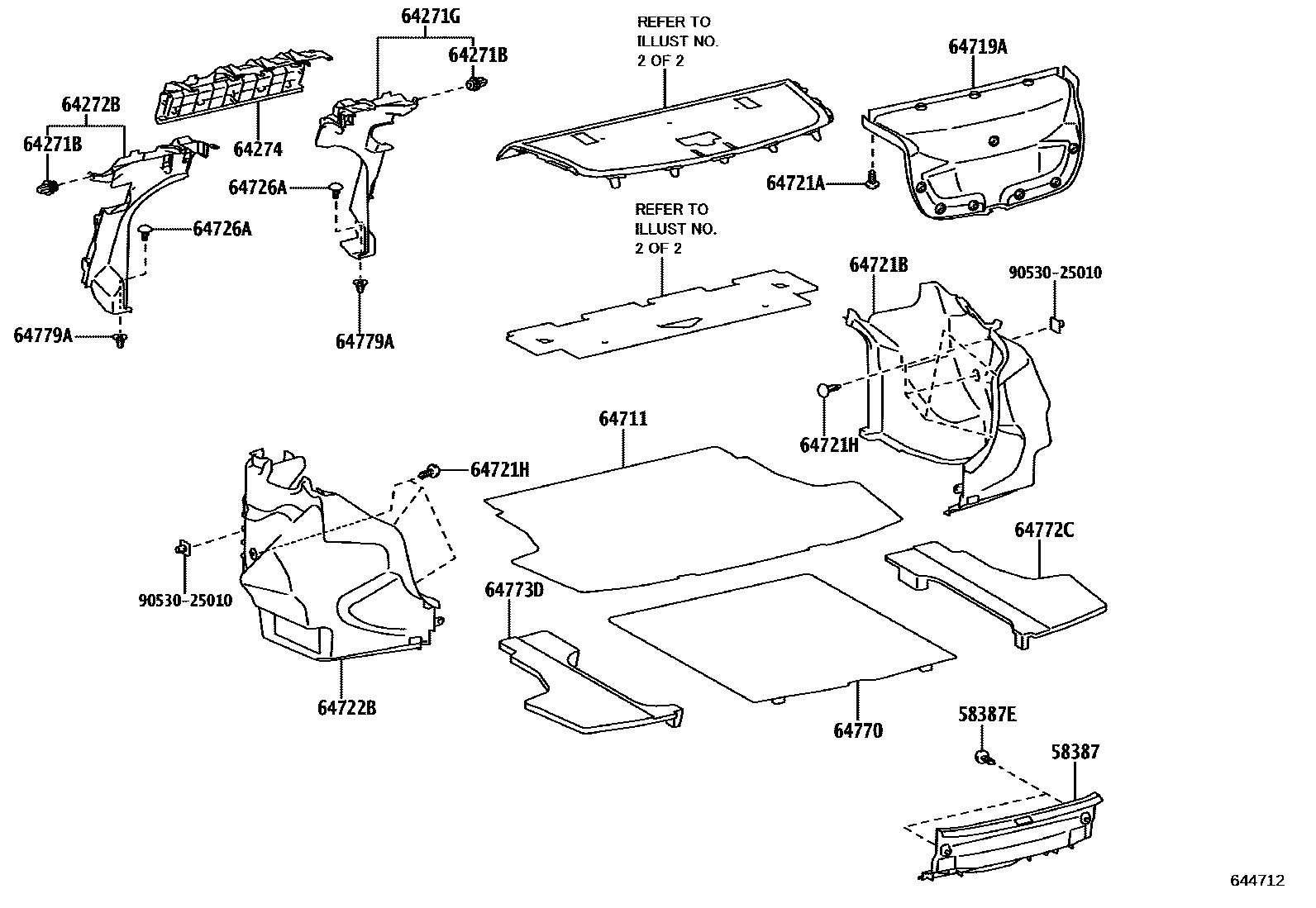

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1PACKAGE TRAY TRIM PANEL

58387PLATE, REAR FLOOR FINISH

main58387-0D230iNSP151201908

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C3iNSP151201908-202104

BLACK,TRIM0#

sub90467-08186¥120

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-T0021iNSP151201908

64271GBOARD, ROOM PARTITION, RH

main64271-0D110iNSP151201908

64272BBOARD, ROOM PARTITION, LH

main64272-0D100iNSP151201908

64274PAD, ROOM PARTITION TRIM, NO.1

main64275-0D240iNSP151201908

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-0D410-C1iNSP151201908

BLACK,TRIM0#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0D210-C1iNSP151201908

BLACK,TRIM0#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-08186-C3iNSP151201908-202104

BLACK,TRIM0#

sub90467-08186¥120

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-0D350-C1iNSP151..D201908

BLACK,TRIM0#

main64721-0D360-C1iNSP151..G,R,V201908

BLACK,TRIM0#

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C3iNSP151201908-202104

BLACK,TRIM0#

sub90467-08186¥120

64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2

main64722-0D350-C1iNSP151..D201908

BLACK,TRIM0#

main64722-0D360-C1iNSP151..G,R,V201908

BLACK,TRIM0#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-0D020iNSP151¥170201908

64770COVER ASSY, SPARE WHEEL

main64770-0D360iNSP151201908

64772CPAD, SPARE WHEEL COVER

main64772-0D140iNSP151201908

64773DCOVER, SPARE WHEEL, NO.2

main64773-0D080iNSP151201908

64779ASTOPPER, SPARE WHEEL COVER

main64779-0D050iNSP151201908

9053025010

main90530-25010¥100

18 parts on this diagram · 2 diagrams in section
