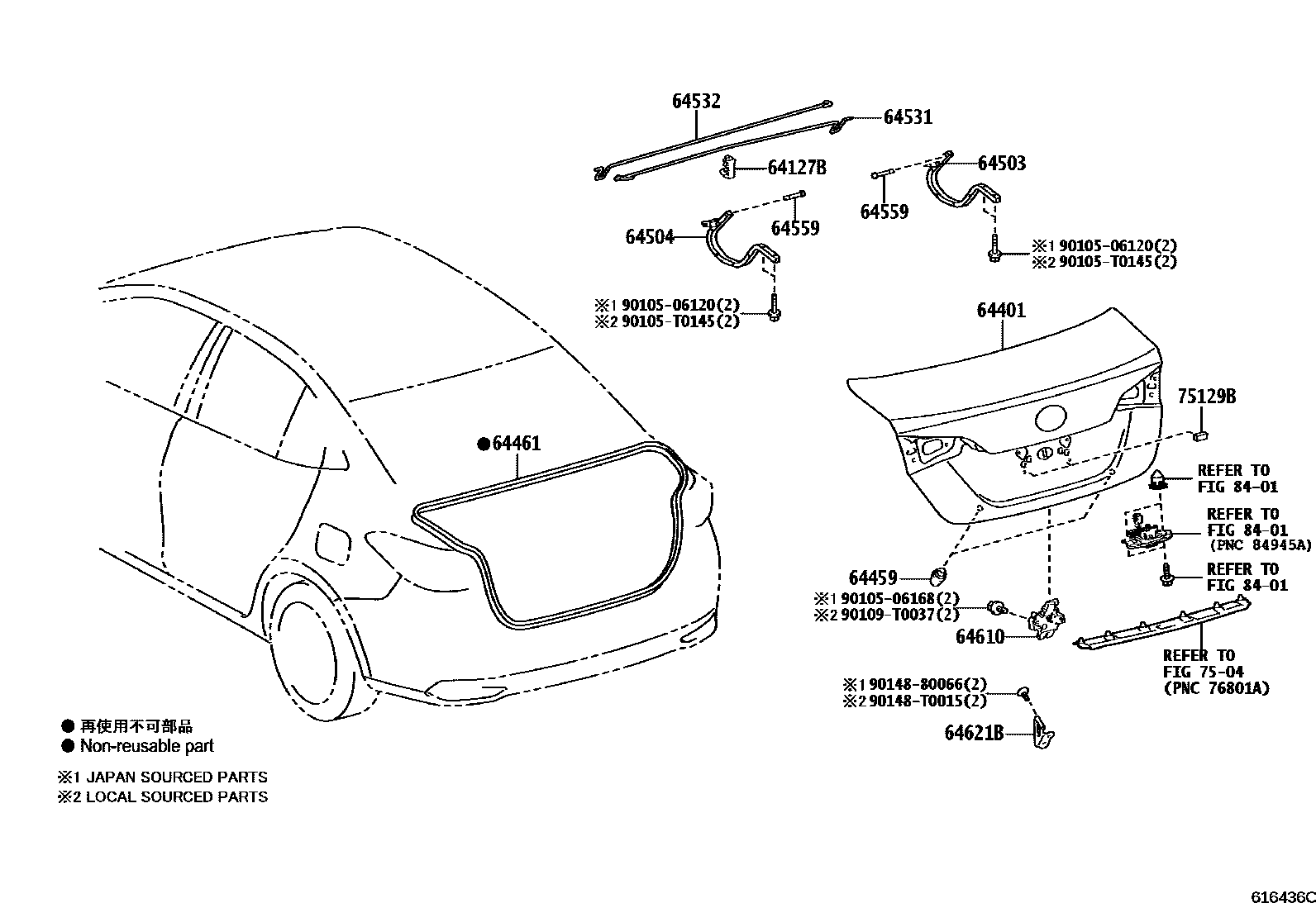

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1LUGGAGE COMPARTMENT DOOR 0002 1LUGGAGE DOOR LOCK CONTROL CAB

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D060iNSP151201908

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D360iNSP151..R201908

main64401-0D490iNSP151..G,V201908

main64401-0D500iNSP151..D201908

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069iNSP151¥170201908

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D230iNSP151201908

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-0D110iNSP151201908

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-0D110iNSP151201908

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D350iNSP151201908

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D340iNSP151201908

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iNSP151¥100201908

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-02080iNSP151201908

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06080iNSP151201908

7504

75129BCUSHION, REAR LICENCE PLATE

main75129-0D020iNSP151201908

8401

9010506120

main90105-06120¥90

9010506168

main90105-06168¥120

90105T0145

main90105-T0145

90109T0037

main90109-T0037

9014880066

main90148-80066¥60

90148T0015

main90148-T0015

20 parts on this diagram · 2 diagrams in section
