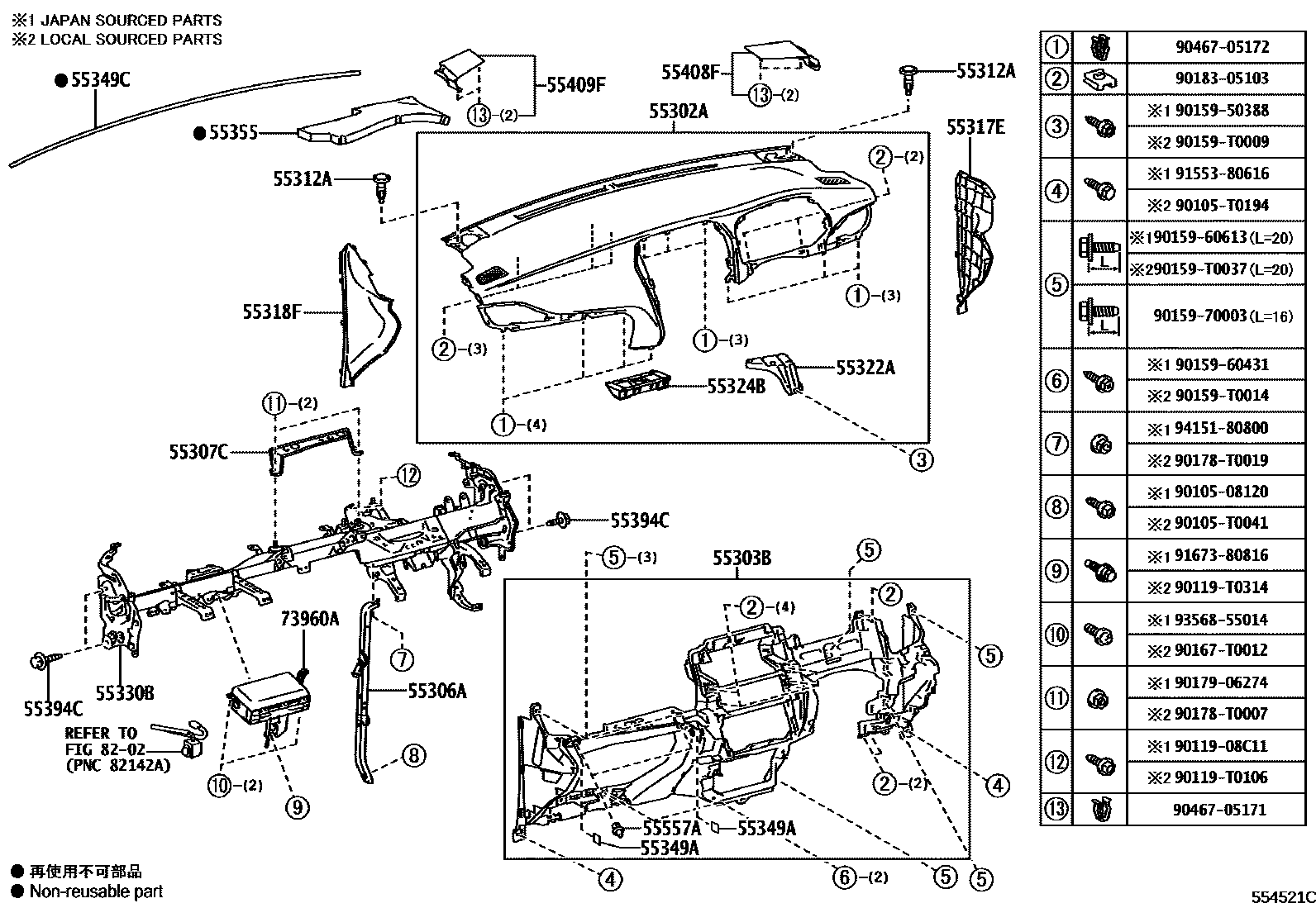

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D300-C0iNSP151201908

BLACK,TRIM0#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D260-C0iNSP151201908

BLACK,TRIM0#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D430iNSP151201908

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55308-0D140iNSP151201908

55312ACLIP, INSTRUMENT PANEL

main52161-0K040iNSP151¥120201908

(L)

main52161-16010iNSP151¥120201908

(J)

sub52161-0K040¥120

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-0D330-C0iNSP151201908

BLACK,TRIM0#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-0D290-C0iNSP151201908

BLACK,TRIM0#

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-0D280iNSP151201908

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-0D280iNSP151201908

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0D820iNSP151201908

55349ACUSHION, INSTRUMENT PANEL

main55349-0D410iNSP151201908

55349CCUSHION, INSTRUMENT PANEL

main55349-0D290iNSP151201908

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D440iNSP151201908

55394CBOLT, INSTRUMENT PANEL

main55394-52010iNSP151¥100201908

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-0D050-C0iNSP151201908

BLACK,TRIM0#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-0D070-C0iNSP151201908

BLACK,TRIM0#

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-52030iNSP151¥200201908

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0D200iNSP151201908

8202

9010508120

main90105-08120¥90

90105T0041

main90105-T0041

90105T0194

main90105-T0194¥90

9011908C11

main90119-08C11¥80

90119T0106

main90119-T0106¥80

90119T0314

main90119-T0314

9015950388

main90159-50388¥50

9015960431

main90159-60431¥70

9015960613

main90159-60613¥60

9015970003

main90159-70003¥60

90159T0009

main90159-T0009

90159T0014

main90159-T0014

90159T0037

main90159-T0037

90167T0012

main90167-T0012

90178T0007

main90178-T0007¥80

90178T0019

main90178-T0019

9017906274

main90179-06274¥70

9018305103

main90183-05103¥90

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

9155380616

main91553-80616¥70

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

43 parts on this diagram · 4 diagrams in section
