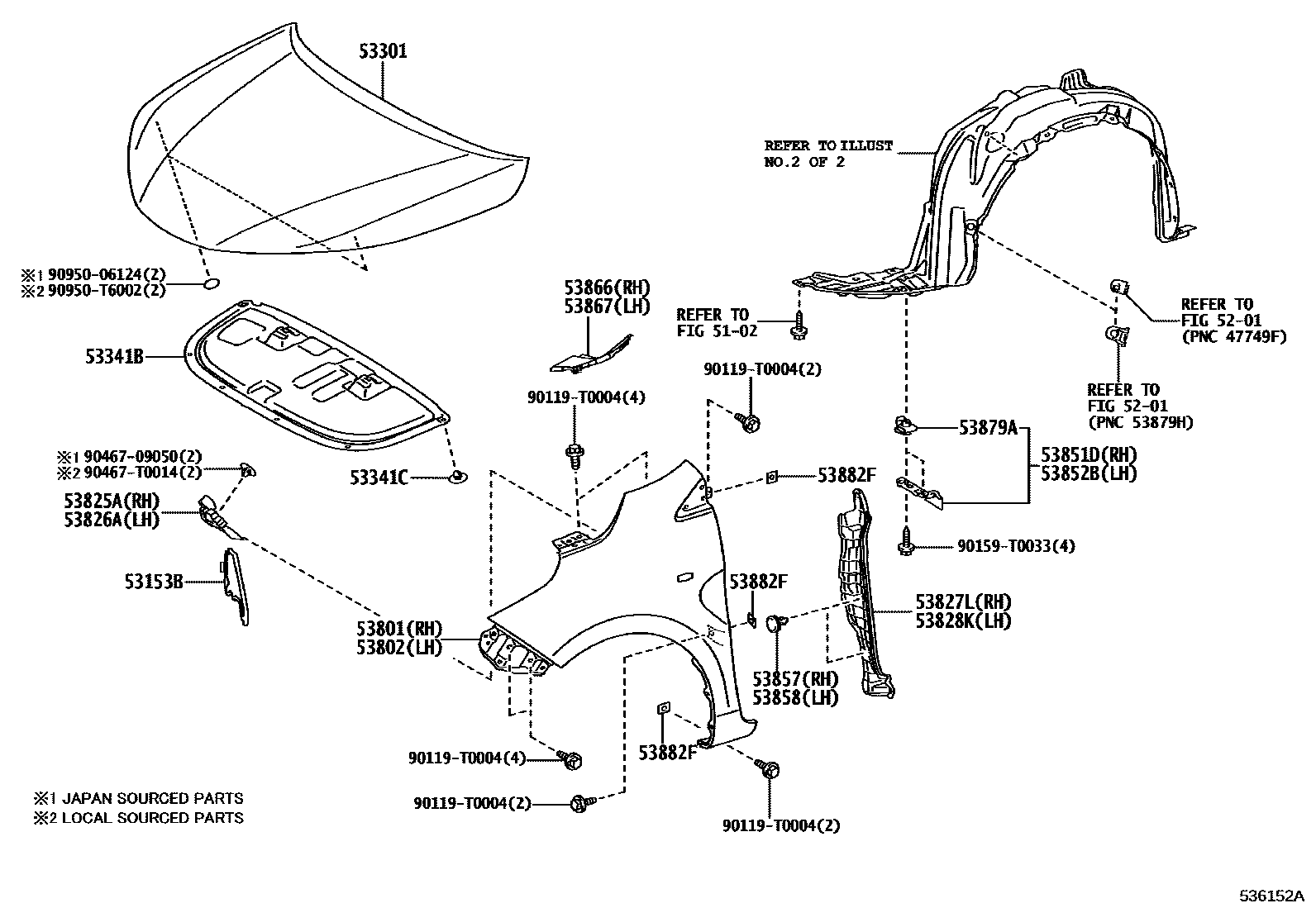

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

5102

5201

53153BGUIDE, FRONT SIDE AIR

main53153-0D060iNSP151201908

53301HOOD SUB-ASSY

main53301-0D320iNSP151201908

sub53301-0D280

53341BINSULATOR, HOOD

main53341-0D350iNSP151201908

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNSP151201908

(J)

main90467-T0014iNSP151201908

(L)

53801FENDER SUB-ASSY, FRONT RH

main53801-0D210iNSP151..D201908

sub53801-0D090

main53801-0D220iNSP151..G,R,V201908

sub53801-0D100

53802FENDER SUB-ASSY, FRONT LH

main53802-0D210iNSP151..D201908

sub53802-0D090

main53802-0D220iNSP151..G,R,V201908

sub53802-0D100

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-0D080iNSP151201908

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-0D080iNSP151201908

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D250iNSP151201908

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D250iNSP151201908

53851DPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-0D190iNSP151201908

53852BPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-0D110iNSP151201908

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0K010iNSP151201908

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0K010iNSP151201908

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D260iNSP151201908

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D260iNSP151201908

53879ARETAINER, FRONT FENDER LINER

main53879-17020iNSP151201908

53882FSEAL, FRONT FENDER

main53882-33060iNSP151201908

90119T0004

main90119-T0004

90159T0033

main90159-T0033

9046709050

main90467-09050

90467T0014

main90467-T0014

9095006124

main90950-06124

90950T6002

main90950-T6002

26 parts on this diagram · 2 diagrams in section
