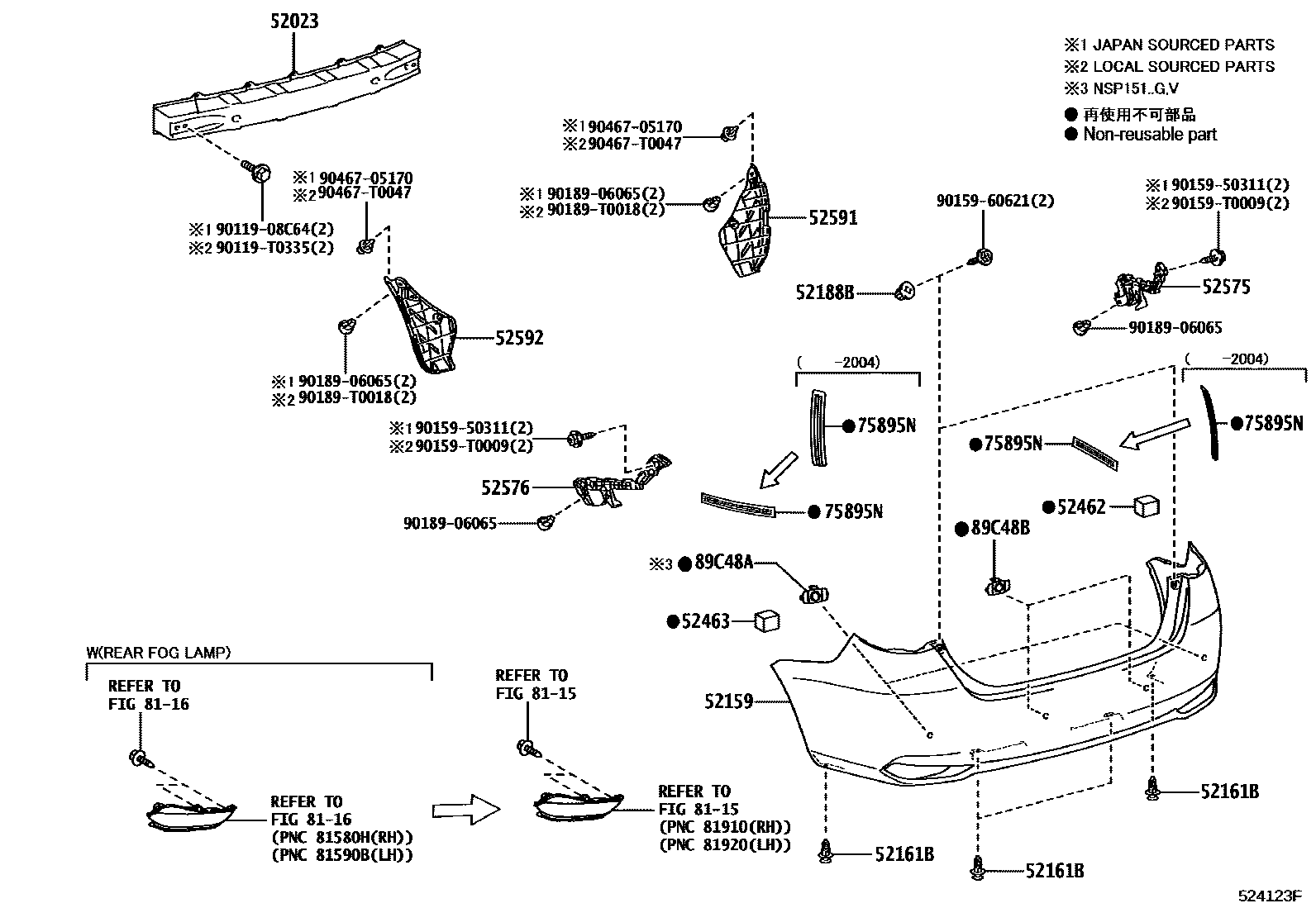

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0D060iNSP151201908

52159COVER, REAR BUMPER

main52159-0U943iNSP151..D,R201908-202004

PAINT REQ.

sub52159-0U960

sub75895-53010¥790

main52159-0U944iNSP151..G,V201908-202004

PAINT REQ.

sub52159-0U961

sub75895-53010¥790

main52159-0U960iNSP151..D,R202004

PAINT REQ.

main52159-0U961iNSP151..G,V202004

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iNSP151¥120201908

(L)

main52161-16010iNSP151¥120201908

(J)

sub52161-0K040¥120

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040iNSP151¥80201908-202104

52462PAD, REAR BUMPER, RH

main52462-0D090iNSP151201908

52463PAD, REAR BUMPER, LH

main52462-0D090iNSP151201908

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D370iNSP151201908

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D360iNSP151201908

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D430iNSP151201908

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D430iNSP151201908

75895NTAPE, MOULDING, NO.1

main75895-28010iNSP151¥1,260201908-202004

main75895-53010iNSP151¥790202004

8115

8116

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-0D030iNSP151..G,V201908

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-0D030iNSP151201908

9011908C64

main90119-08C64¥90

90119T0335

main90119-T0335

9015950311

main90159-50311¥70

9015960621

main90159-60621¥60

90159T0009

main90159-T0009

9018906065

main90189-06065¥80

90189T0018

main90189-T0018

9046705170

main90467-05170¥80

90467T0047

main90467-T0047

24 parts on this diagram · 1 diagram in section
