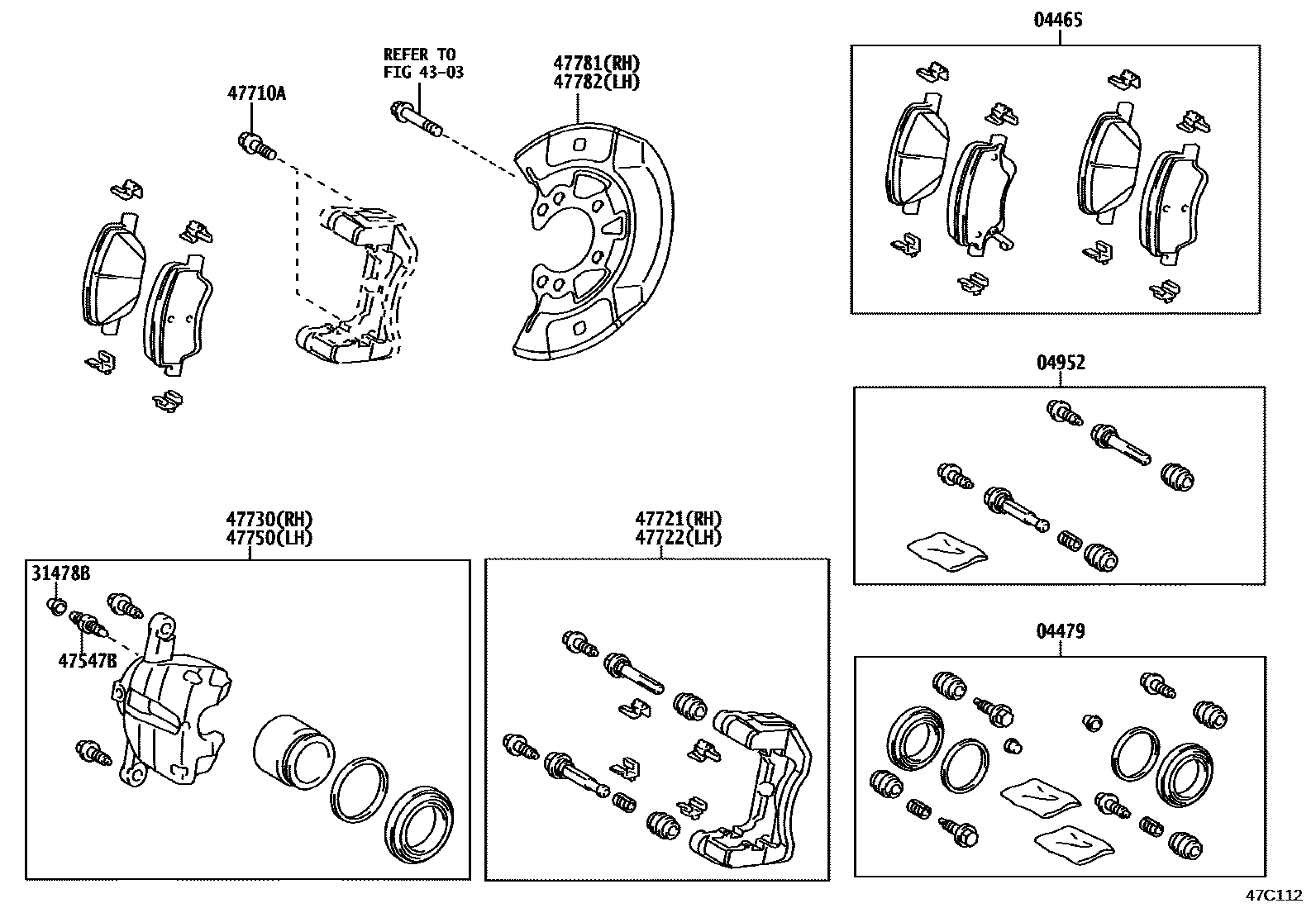

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02350iNSP151..D,R201908

MARK AK PA563H

main04465-0D130iNSP151..G,V¥8,600201908

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D150iNSP151..D,R201908

main04478-0D181iNSP151..G,V201908

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-0D040iNSP151..D,R201908

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iNSP151..G,V201908

main31478-0D060iNSP151..D,R201908

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030iNSP151..G,V201908

main90069-39013iNSP151..D,R201908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNSP151¥160201908

*12-1.25PX29.5-23,(J)

main90105-T0186iNSP151201908

*12-1.25PX29.5-23,(L)

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09520iNSP151..D,R201908

main47721-0D250iNSP151..G,V201908

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09220iNSP151..D,R201908

main47722-0D240iNSP151..G,V201908

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D160iNSP151..D,R201908

main47730-0D250iNSP151..G,V201908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D160iNSP151..D,R201908

main47750-0D240iNSP151..G,V201908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D200iNSP151201908

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-0D200iNSP151201908

13 parts on this diagram · 2 diagrams in section
