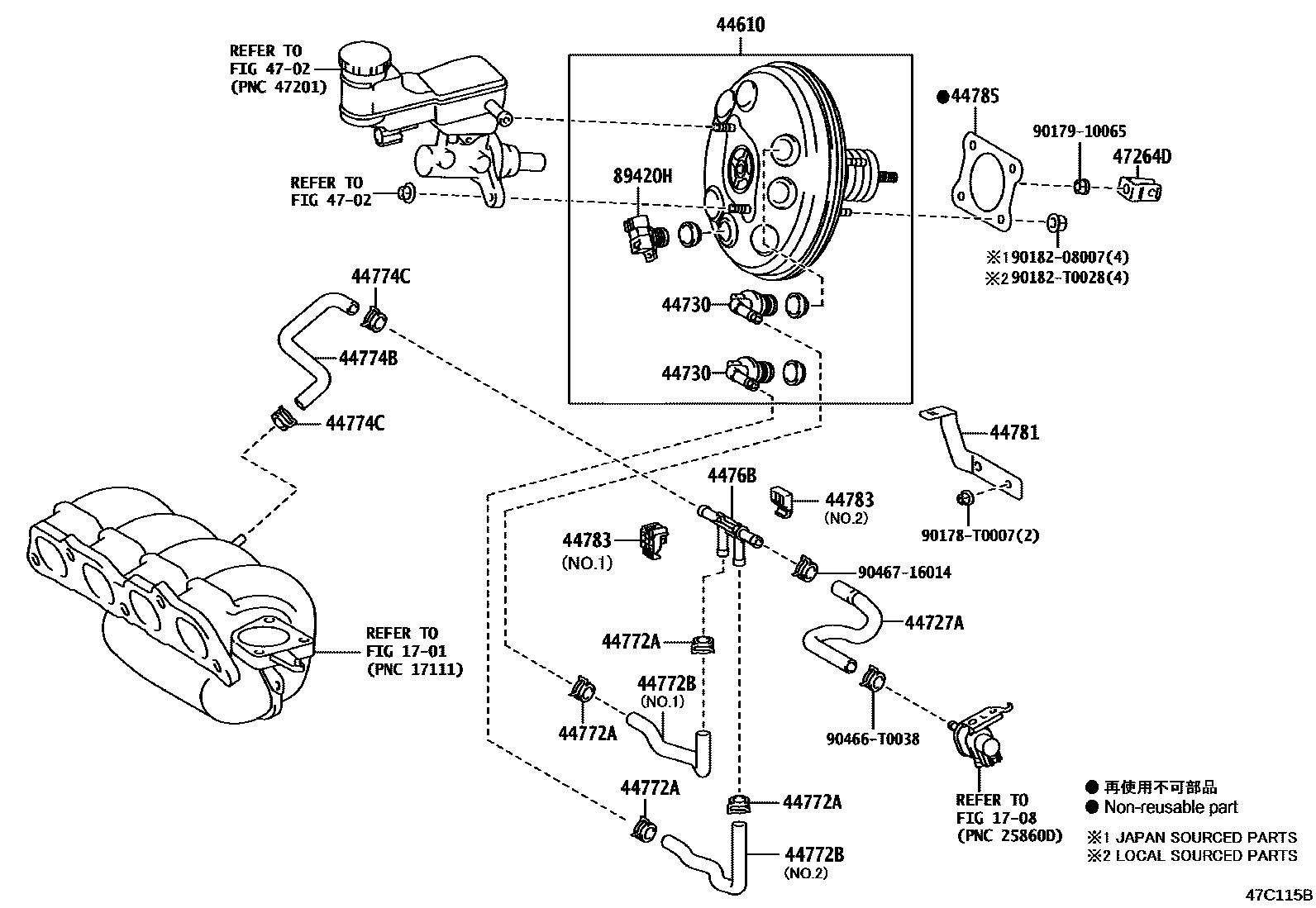

BRAKE BOOSTER & VACUUM TUBE
1701
1708
44610BOOSTER ASSY, BRAKE
44727AHOSE, AIR, NO.2
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
4476BEJECTOR, BRAKE BOOSTER VACUUM
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
(L)
(J)
44772BHOSE, CHECK VALVE TO BRAKE BOOSTER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44774BHOSE, UNION TO CONNECTOR TUBE
44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)
(L)
(J)
44781BRACKET, HOSE
44783CLAMP, VACUUM HOSE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44785GASKET, BRAKE BOOSTER
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
89420HSENSOR ASSY, VACUUM
90178T0007
9017910065
9018208007
90182T0028
main90182-T0028
90466T0038
main90466-T0038
9046716014
23 parts on this diagram · 2 diagrams in section
