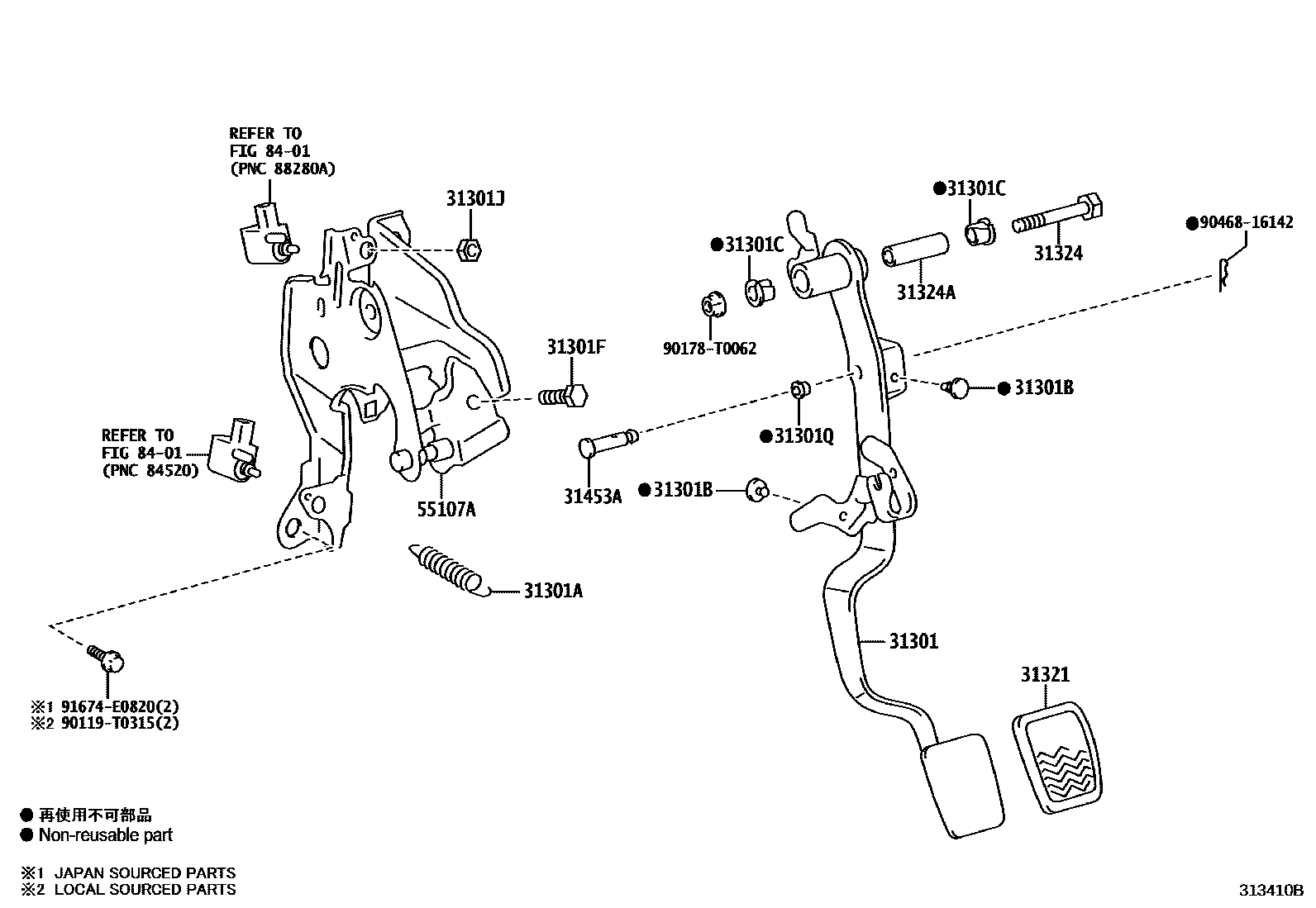

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D340iNSP151..6F201908

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14018iNSP151..6F201908

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNSP151..6F201908

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNSP151..6F201908

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91112-61025iNSP151..6F201908

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10017iNSP151..6F201908

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-08033iNSP151..6F201908

31321PAD, CLUTCH PEDAL

main31321-0D050iNSP151..6F201908

31324SHAFT, CLUTCH PEDAL

main90101-10081iNSP151..6F201908

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iNSP151..6F201908

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iNSP151..6F201908

L=31.5

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D370iNSP151..6F201908

8401

90119T0315

main90119-T0315

90178T0062

main90178-T0062

9046816142

main90468-16142

91674E0820

main91674-E0820

17 parts on this diagram · 2 diagrams in section
