HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNSP15#..GCC,GEN,TH,VN202303

main88374-33070iNSP151..MA202305

88374CVALVE, SERVICE, NO.2

main88374-30010iNSP15#..GCC,GEN,MA,TH,VN202303

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iNSP15#..GCC,GEN,MA,TH,VN202303

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iNSP15#..GCC,GEN,MA,TH,VN202303

88460CONDENSER ASSY, COOLER

main88460-0D560iNSP150..GCC202303

main88460-0D570iNSP15#..GEN,TH,VN202303

main88460-0D640iNSP151..MA202305

main88460-0D660iNSP150,151..PKN202407

88474DRYER, COOLER

main88474-12010iNSP15#..GCC,GEN,MA,TH,VN202303

88706ATUBE SUB-ASSY, LIQUID, A

main88706-0DA30iNSP152202303

main88706-0DA80iNSP150..GCC202303

main88706-0DA90iNSP150,151..GEN,VN202303

main88706-0DC10iNSP151..MA202305

main88706-0DE00iNSP150,151..PKN202407

88706GRING, O(FOR LIQUID TUBE)

main90099-14119iNSP15#..GCC,GEN,MA,TH,VN202303

ID=6.7,OD=10.3

88707BTUBE SUB-ASSY, SUCTION, B

main88707-0D340iNSP150,151..PKN202407

main88707-0D370iNSP152202303

main88707-0D380iNSP150,151..LHD202303

main88707-0D430iNSP151..MA202305

88707DRING, O(FOR SUCTION TUBE)

main90068-14043iNSP15#..GCC,GEN,TH,VN202303

ID=13.4,OD=18.2

main90099-14121iNSP151..MA202305

ID=13.4,OD=18.2

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0D770iNSP152202303

main88711-0D780iNSP150..GCC202303

main88711-0D790iNSP150,151..GEN,VN202303

main88711-0D880iNSP151..MA202305

main88711-0DA20iNSP150,151..PKN202407

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

main90099-14120iNSP15#..GCC,GEN,MA,TH,VN202303

ID=10.8,OD=15.6

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0D760iNSP15#..GEN,TH,VN202303

main88712-0D800iNSP151..MA202305

main88712-0D820iNSP150..GCC202303

main88712-0DA30iNSP150,151..PKN202407

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main90099-14121iNSP15#..GCC,GEN,MA,TH,VN202303

ID=13.4,OD=18.2

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-0D210iNSP15#..GCC,GEN,TH,VN202303

main88718-0D290iNSP151..MA202305

main88718-0DB10iNSP150,151..PKN202407

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-0D550iNSP15#..GCC,GEN,TH,VN202303

main88718-0D810iNSP151..MA202305

main88718-0DB20iNSP150,151..PKN202407

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNSP15#..GCC,GEN,MA,TH,VN202303

88891HCOVER, COOLER, NO.1

main88891-0D290iNSP152202303

main88891-0D320iNSP150,151..GEN,VN202303

main88891-0D360iNSP151..MA202305

main88891-0D460iNSP150..GCC202303

main88891-0D480iNSP150,151..PKN202407

90105T0052

main90105-T0052

90105T0241

main90105-T0241

90178T0053

main90178-T0053

9046707164

main90467-07164

9046707215

main90467-07215

90467T0050

main90467-T0050

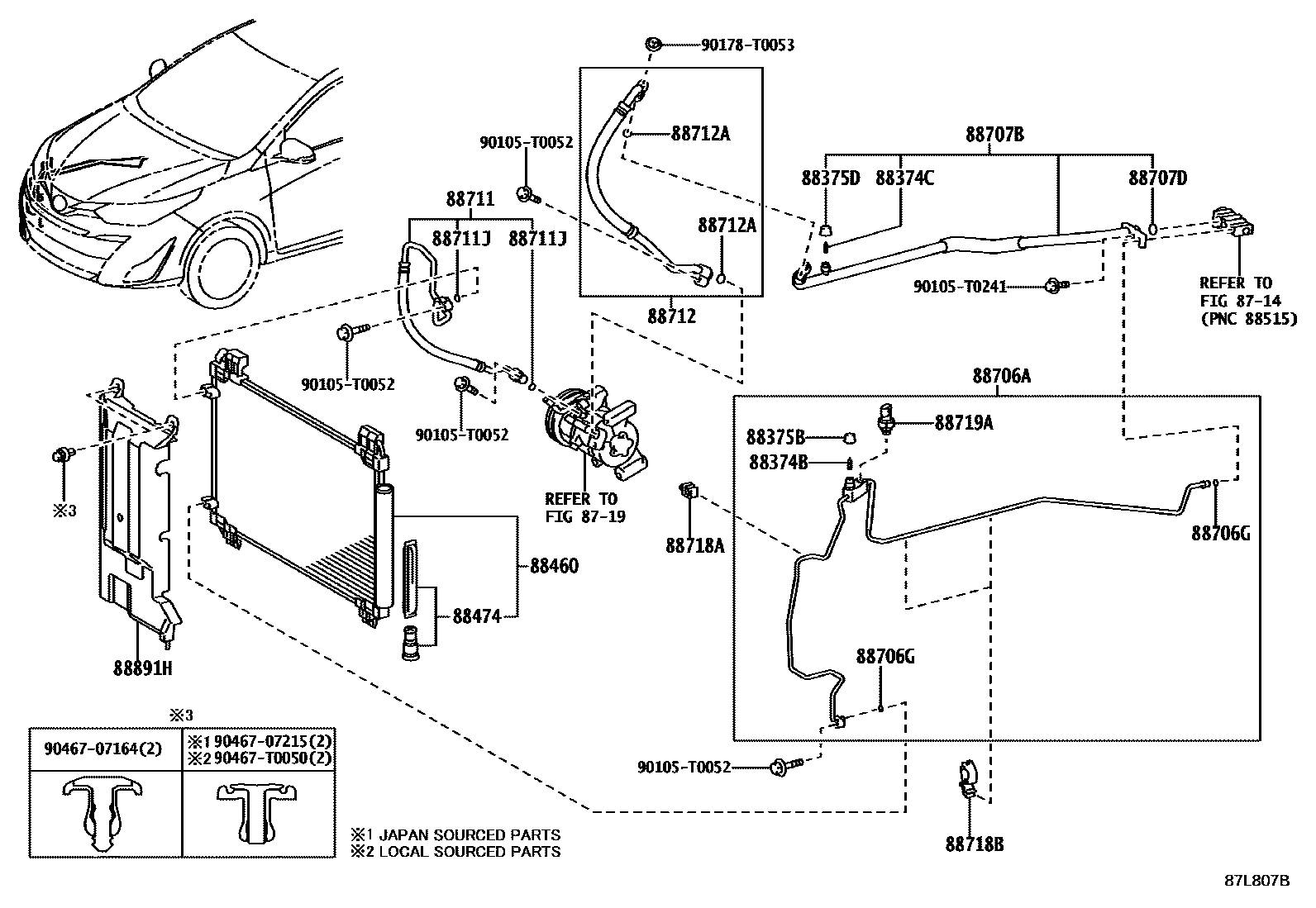

26 parts on this diagram · 5 diagrams in section
