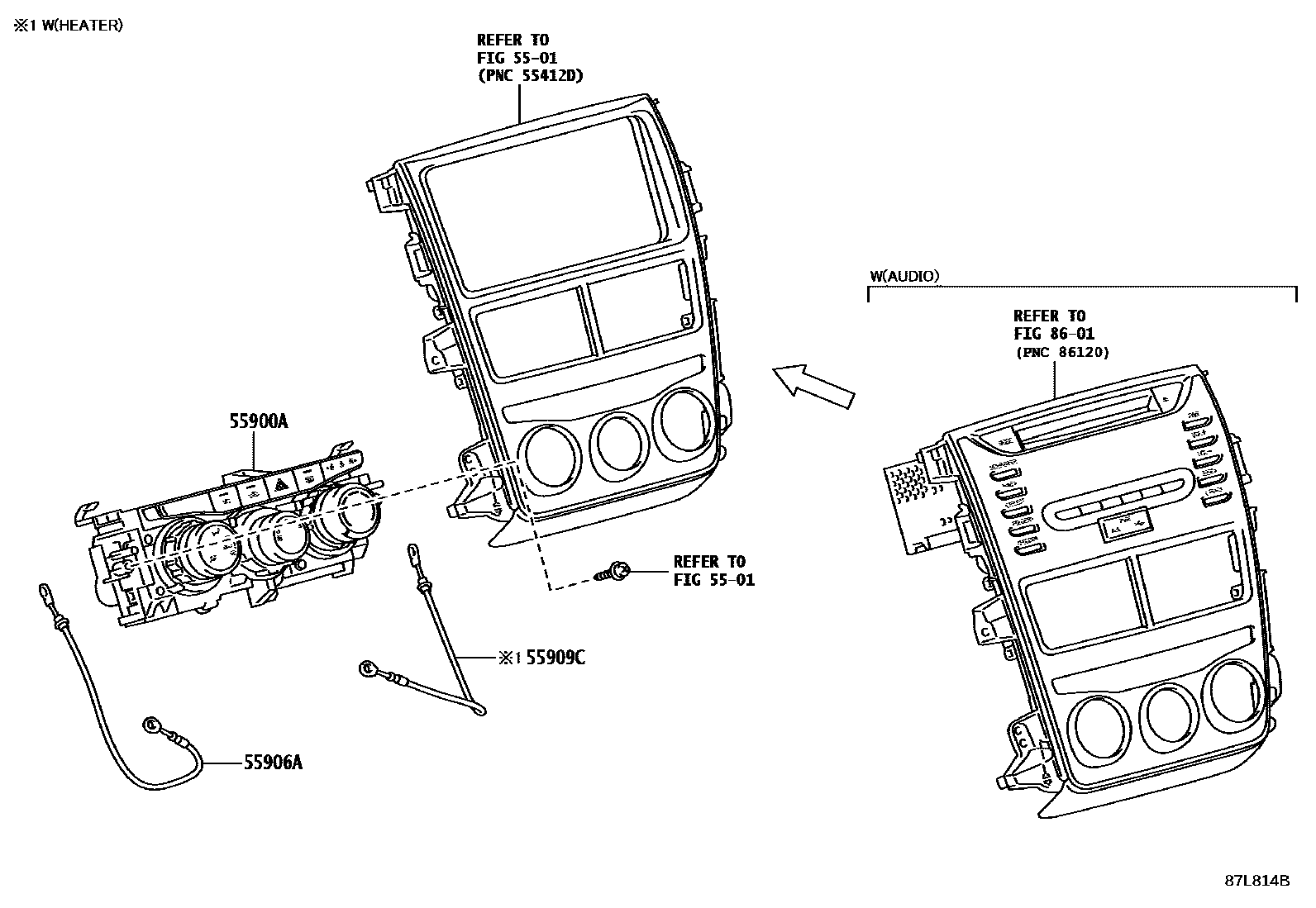

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1MANUAL HEATER CONTROL 0002 1AUTO HEATER CONTROL 0003 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR 0006 1SENSOR

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-0DJ90iNSP151..G..MA202305

main55900-0DN70iNSP152202303

YP2 PACKAGE

main55900-0DN80iNSP151..4D..G..VN202303

YP2 PACKAGE

main55900-0DN90iNSP151..CVT..PKN202407

YP2 PACKAGE&AUDIO-*DA & *BT & USB & 6SPEAKER

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-0DA40iNSP150..D202407

main55900-0DA60iNSP150..G202407

main55900-0DB20iNSP150,151..R..(GCC,VN)202303

main55900-0DG20iNSP151..R..MA202305

main55900-0DJ50iNSP151..D202303

main55900-0DJ60iNSP150,151..R..GEN202303

main55900-0DF80iNSP152202303

ECO PACKAGE

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0D180iNSP150..PKN;NSP151..R..MA202305

main55906-0D190iNSP150,151..LHD..(D,R)202303

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0D090iNSP150..PKN202407

main55909-0D170iNSP150,151..LHD..(D,R)202303

8601

6 parts on this diagram · 6 diagrams in section
