HEADLAMP

0001 1HALOGEN(MULTI REFLECTOR TYPE)0002 1HALOGEN(PROJECTOR TYPE) 0003 1LED HEADLAMP 0004 1LED HEADLAMP

5304

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-YP320iNSP151..5F..GEN202303

ECO PACKAGE&YP2 PACKAGE

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-YP320iNSP151..5F..GEN202303

ECO PACKAGE&YP2 PACKAGE

81110HEADLAMP ASSY, RH

main81110-0DF21iNSP151..5F..GEN202303

ECUADOR

main81110-0DJ60supersedes 81110-0DF11iNSP152202303

G PACKAGE

main81110-YP241supersedes 81110-0DN40iNSP151..MA202305

YP1 PACKAGE

main81110-YP320supersedes 81110-0DF11iNSP152202303

ECO PACKAGE&YP2 PACKAGE

main81110-YP330iNSP150,151..LHD..(D,R)202303

YP2 PACKAGE

main81110-YP340iNSP15#..PKN,TH202303

YP2 PACKAGE

main81110-YP350iNSP151..R..GEN202303

YP2 PACKAGE

main81110-YP360iNSP151..5F..GEN202303

ECUADOR&E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE

81110BBULB(FOR HEADLAMP, NO.1)

81110DBULB(FOR HEADLAMP, NO.2)

81132BGASKET, HEADLAMP LENS

main81132-48C30×2iNSP152202303

G PACKAGE&YP2 PACKAGE

81135UNIT ASSY, HEADLAMP, RH

main81130-0DF21iNSP151..5F..GEN202303

ECUADOR

main81130-0DJ60supersedes 81130-0DF11iNSP152202303

G PACKAGE

main81140-YP241supersedes 81130-0DN40iNSP151..MA202305

YP1 PACKAGE

main81140-YP320supersedes 81130-0DF11iNSP152202303

ECO PACKAGE&YP2 PACKAGE

main81140-YP330iNSP150,151..LHD..(D,R)202303

YP2 PACKAGE

main81140-YP340iNSP15#..PKN,TH202303

YP2 PACKAGE

main81140-YP350iNSP151..R..GEN202303

YP2 PACKAGE

main81140-YP360iNSP151..5F..GEN202303

ECUADOR&E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE

81144COVER, HEADLAMP, NO.1

main90075-65006

81150HEADLAMP ASSY, LH

main81150-0DF21iNSP151..5F..GEN202303

ECUADOR

main81150-0DJ60supersedes 81150-0DF11iNSP152202303

G PACKAGE

main81150-YP241supersedes 81150-0DN40iNSP151..MA202305

YP1 PACKAGE

main81150-YP320supersedes 81150-0DF11iNSP152202303

ECO PACKAGE&YP2 PACKAGE

main81150-YP330iNSP150,151..LHD..(D,R)202303

YP2 PACKAGE

main81150-YP340iNSP15#..PKN,TH202303

YP2 PACKAGE

main81150-YP350iNSP151..R..GEN202303

YP2 PACKAGE

main81150-YP360iNSP151..5F..GEN202303

ECUADOR&E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE

81175UNIT ASSY, HEADLAMP, LH

main81070-YP320supersedes 81170-0DF11iNSP152202303

ECO PACKAGE&YP2 PACKAGE

main81070-YP330iNSP150,151..LHD..(D,R)202303

YP2 PACKAGE

main81070-YP340iNSP15#..PKN,TH202303

YP2 PACKAGE

main81070-YP350iNSP151..R..GEN202303

YP2 PACKAGE

main81070-YP360iNSP151..5F..GEN202303

ECUADOR&E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE

main81170-0DF21iNSP151..5F..GEN202303

ECUADOR

main81170-0DJ60supersedes 81170-0DF11iNSP152202303

G PACKAGE

main81170-YP241supersedes 81170-0DN40iNSP151..MA202305

YP1 PACKAGE

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2supersedes 90981-15021iNSP152202303

12V 21W,AMBER,G PACKAGE&YP2 PACKAGE

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2supersedes 90075-60028iNSP152202303

G PACKAGE&YP2 PACKAGE

81610FBULB(FOR CLEARANCE LAMP)

81615DSOCKET, CLEARANCE LAMP

9010906388

main90109-06388

90109T0046

main90109-T0046

9015950311

main90159-50311

90159T0009

main90159-T0009

9018905142

main90189-05142

90189T0007

main90189-T0007

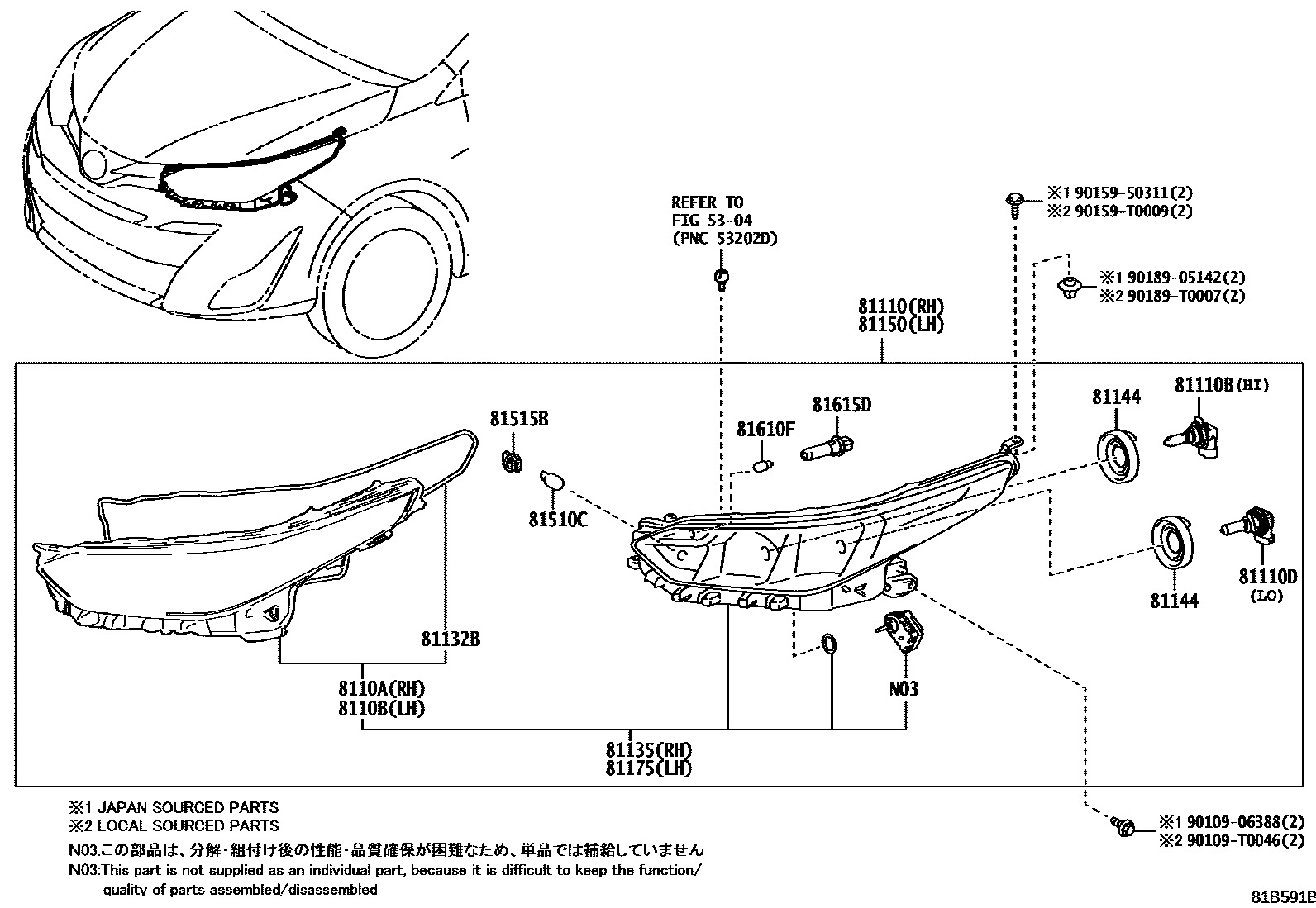

21 parts on this diagram · 4 diagrams in section
