FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL LID OPENER 0007 1FUEL LID OPENER

23217DFILTER, FUEL PUMP

main23217-0Y030i1NRFE,2NRFE,3NRFKE..NSP15#202303

23221PUMP, FUEL

main23221-0Y040i1NRFE,2NRFE,3NRFKE..NSP15#202303

23225ASPACER, FUEL PUMP

main23225-0V030i1NRFE,2NRFE,3NRFKE..NSP15#202303

23226RING, O(FOR FUEL PUMP)

main90301-T0035i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GEN,TH,VN)202303

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-22010i1NRFE,2NRFE,3NRFKE..NSP15#202303

7403

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0D190iNSP15#202303

77028FTUBE SUB-ASSY, FUEL EMISSION, NO.2

main77028-0D140iNSP15#202303

77100TANK ASSY, FUEL

main77001-0D271iNSP15#..5D..(GEN,TH,VN)202303

main77001-0D280iNSP151..4D;NSP150..GCC,PKN202303

main77001-0D430iNSP151..MA202305

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52040iNSP15#202303

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-52030iNSP15#202303

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0D100iNSP15#202303

77175SUPPORT, FUEL SUCTION, NO.2

main77175-0D050iNSP15#202303

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D160iNSP15#202303

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main77219-0D070iNSP15#..5D..(GEN,TH,VN)202303

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0D150iNSP15#..5D..(GEN,TH,VN)202303

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-0D140iNSP15#..5D..(GEN,TH,VN)202303

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0D120iNSP15#..5D..(GEN,TH,VN)202303

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-0D050iNSP15#..5D..(GEN,TH,VN)202303

77241WCLIP, TUBE JOINT

main77241-0K010iNSP15#..GCC,GEN,PKN,TH,VN202409

main77241-33011iNSP15#..GCC,GEN,PKN,TH,VN202303-202409

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D160iNSP15#..GCC,GEN,TH,VN202303

main77291-0D220iNSP151..MA202305

main77291-0D240iNSP150,151..PKN202407

77310ACAP ASSY, FUEL TANK

main77300-0K010iNSP15#202303

77316GASKET, FUEL TANK CAP

main77316-0K020iNSP15#202303

77391ARING, FUEL INLET BOX

main77391-02020iNSP15#202303

77641APROTECTOR, FUEL TANK, NO.1

main77641-0D090iNSP15#202303

77642APROTECTOR, FUEL TANK, NO.2

main77642-0D090iNSP15#202303

77645ARETAINER, FUEL TANK PROTECTOR

main77645-0D030iNSP15#202303

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-0D090iNSP15#..5D..(GEN,TH,VN)202303

main77701-0D120iNSP151..4D..VN;NSP150,151..GCC,MA,PKN202303

77704CANISTER SUB-ASSY, CHARCOAL

main77704-0D110iNSP15#202303

77785HARNESS, FUEL PUMP

main77785-0D110iNSP15#202303

8401

90119T0327

main90119-T0327

90119T0341

main90119-T0341

90119T0555

main90119-T0555

90182T0041

main90182-T0041

9026905049

main90269-05049

9030107020

main90301-07020

9046611004

main90466-11004

9046712056

main90467-12056

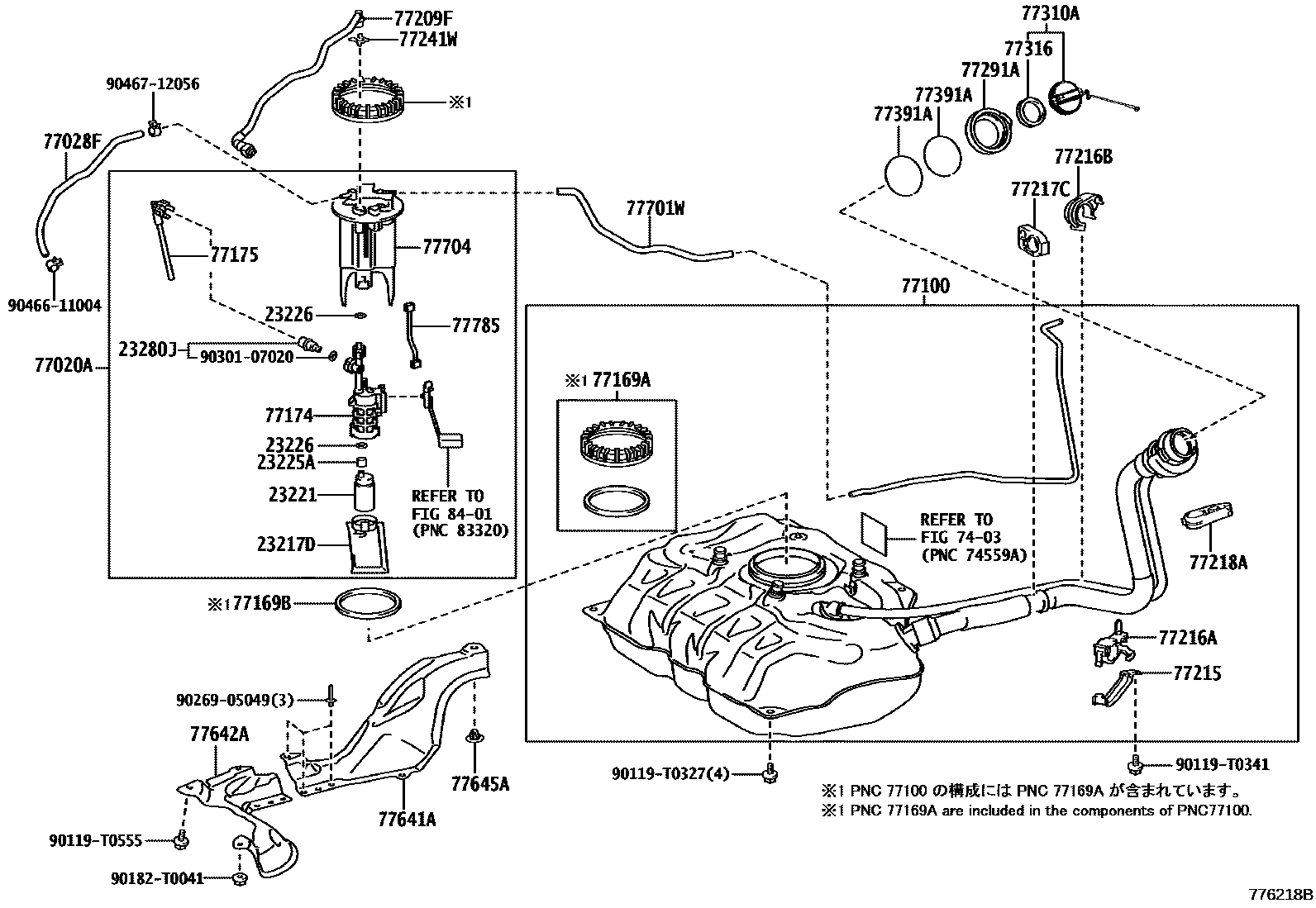

39 parts on this diagram · 6 diagrams in section
