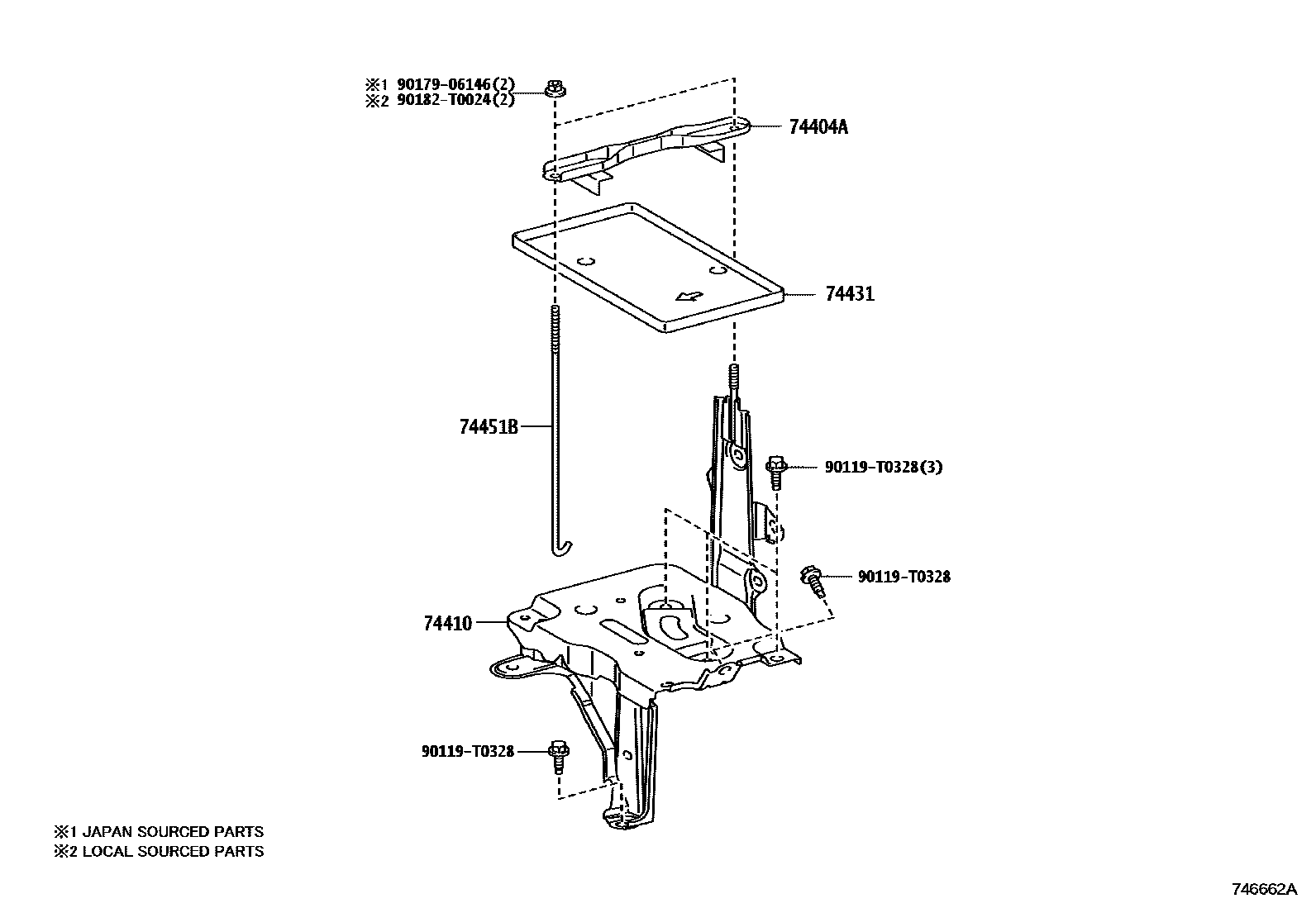

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-0D170iNSP150,151..LHD202303

main74404-0D201iNSP151..MA202305

main74404-0D280iNSP151..PKN;NSP150..5F..PKN202407

main74404-0D290iNSP152202303

main74404-0D300iNSP150..CVT..PKN202407

74410CARRIER ASSY, BATTERY

main74410-0D140iNSP152202303

main74410-0D150iNSP150,151..LHD202303

main74410-0D240iNSP150,151..PKN202407

main74410-0D320iNSP151..MA202305

74431TRAY, BATTERY

main74431-0D210iNSP150,151..GCC,GEN,MA,VN202303

main74431-0D290iNSP152202303

main74431-0D360iNSP151..PKN;NSP150..5F..PKN202407

main74431-0D370iNSP150..CVT..PKN202407

74451BBOLT, BATTERY CLAMP

main74451-0D040iNSP15#..GCC,GEN,TH,VN202303

main74451-0D150iNSP151..MA202305

main74451-0D160iNSP150,151..PKN202407

90119T0328

main90119-T0328

9017906146

main90179-06146

90182T0024

main90182-T0024

7 parts on this diagram · 1 diagram in section
