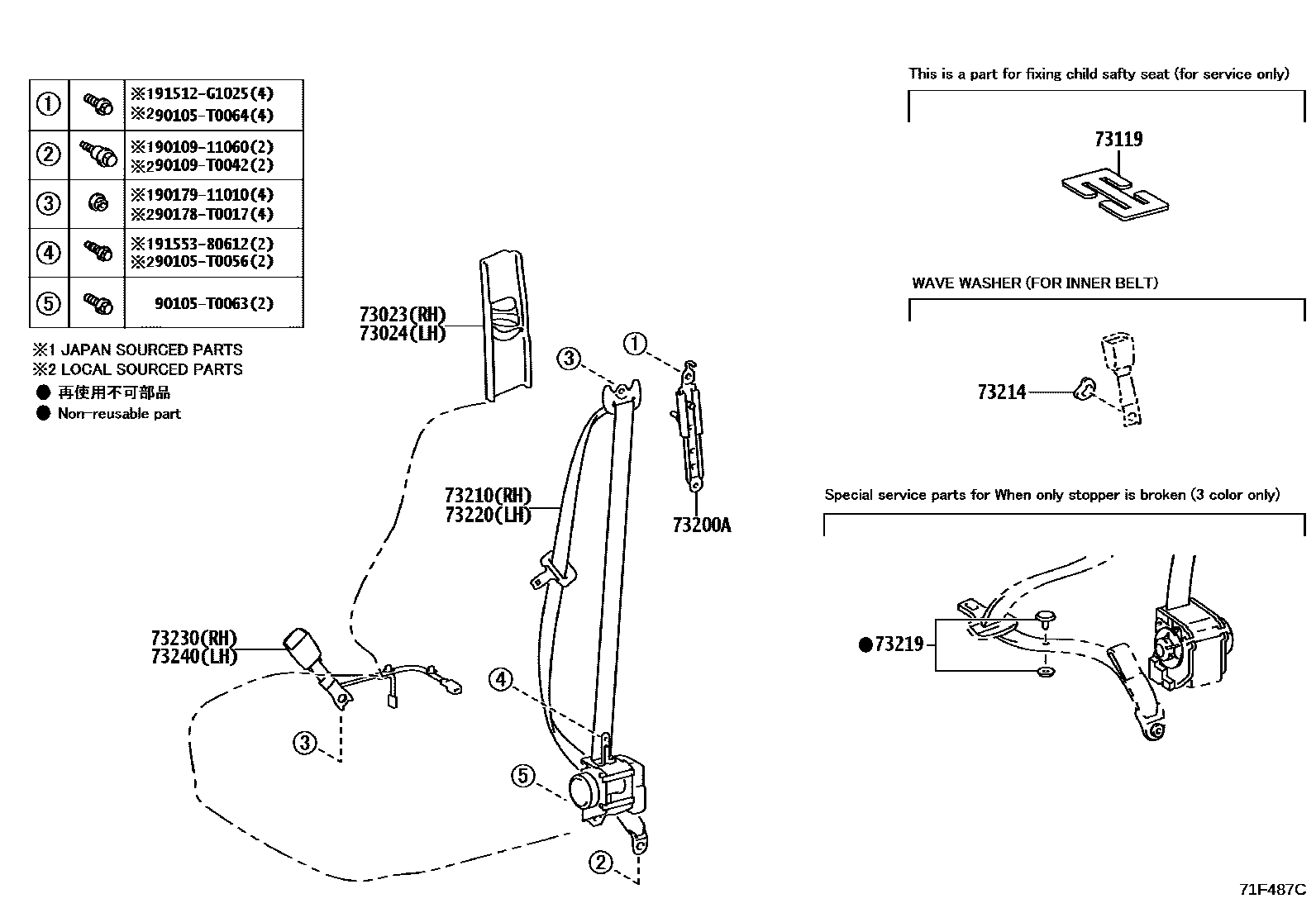

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT 0003 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-06080-A3iNSP150..PKN;NSP151..4D..CVT;NSP151..5F..PKN202304

IVORY,TRIM0#

main73023-06080-B0iNSP15#..5D..(G,R)202304

GRAY,TRIM23

main73023-06080-C0iNSP152202304

BLACK,TRIM0#,23

main73023-06080-C0iNSP151..MA202305

BLACK,TRIM23,25

main73023-06080-C0iNSP150,151..G,R202303-202304

BLACK,TRIM2#

main73023-06080-C0iNSP151..D202303

BLACK,TRIM0#,2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-06110-A3iNSP150..PKN;NSP151..4D..CVT;NSP151..5F..PKN202304

IVORY,TRIM0#

main73024-06110-B0iNSP150,151..4D202304

GRAY,TRIM23

main73024-06110-C0iNSP152202304

BLACK,TRIM0#,23

main73024-06110-C0iNSP151..MA202305

BLACK,TRIM23,25

main73024-06110-C0iNSP150,151..G,R202303-202304

BLACK,TRIM2#

main73024-06110-C0iNSP151..D202303

BLACK,TRIM0#,2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNSP15#202303

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02140iNSP15#202303

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D510-C1iNSP150,151..GCC,GEN202303

BLACK/BLACK,TRIM0#,2#

main73210-0D530-C1iNSP151..MA202305

BLACK,TRIM2#

main73210-0D620-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main73210-0D620-C0iNSP150,151..PKN202407

BLACK,TRIM2#

main73210-0D630-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main73210-0D630-C0iNSP151..4D..VN202304

BLACK/GRAY,TRIM2#

main73210-0D630-C1iNSP152202304

BLACK/BLACK,TRIM23,26

main73210-0D630-C1iNSP151..VN202303-202304

BLACK/BLACK,TRIM0#,2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010iNSP15#202303

COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE

73219STOPPER, TONGUE PLATE

main73219-33010iNSP15#202303

BLACK

main73219-33020iNSP15#202303

GRAY

main73219-33030iNSP15#202303

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D500-C1iNSP150,151..GCC,GEN202303

BLACK/BLACK,TRIM0#,2#

main73220-0D520-C1iNSP151..MA202305

BLACK,TRIM2#

main73220-0D610-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main73220-0D610-C0iNSP150,151..PKN202407

BLACK,TRIM2#

main73220-0D620-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main73220-0D620-C0iNSP151..4D..VN202304

BLACK/GRAY,TRIM2#

main73220-0D620-C1iNSP151..VN202303-202304

BLACK/BLACK,TRIM0#,2#

main73220-0D620-C1iNSP152202304

BLACK/BLACK,TRIM23,26

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D250-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main73230-0D250-C0iNSP150,151..PKN202407

BLACK,TRIM2#

main73230-0D760-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main73230-0D760-C0iNSP151..4D..VN202304

BLACK,TRIM2#

main73230-0D790-C0iNSP151..MA202305

BLACK,TRIM2#

main73230-0D880-C0iNSP150..GCC202303

BLACK,TRIM0#,2#

main73230-0D890-C0iNSP152202303

BLACK,TRIM2#

main73230-0DA00-C0iNSP150,151..5D..(GEN,VN)202303

BLACK,TRIM0#,2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D521-A0iNSP151..4D..CVT..VN202304

IVORY,TRIM0#

main73230-0D521-C0iNSP151..4D..VN202304

BLACK,TRIM2#

main73230-0D680-C0iNSP151..MA202305

BLACK,TRIM2#

main73230-0D810-A0iNSP150,151..PKN202407

IVORY,TRIM0#

main73230-0D810-C0iNSP150,151..PKN202407

BLACK,TRIM2#

main73230-0DA10-C0iNSP151..D202303

BLACK,TRIM0#,2#

main73230-0DA20-C0iNSP152202303

BLACK,TRIM2#

main73230-0DA30-C0iNSP150,151..LHD..5D..(G,R)202303

BLACK,TRIM0#,2#

90105T0056

main90105-T0056

90105T0063

main90105-T0063

90105T0064

main90105-T0064

9010911060

main90109-11060

90109T0042

main90109-T0042

90178T0017

main90178-T0017

9017911010

main90179-11010

91512G1025

main91512-G1025

9155380612

main91553-80612

19 parts on this diagram · 3 diagrams in section
