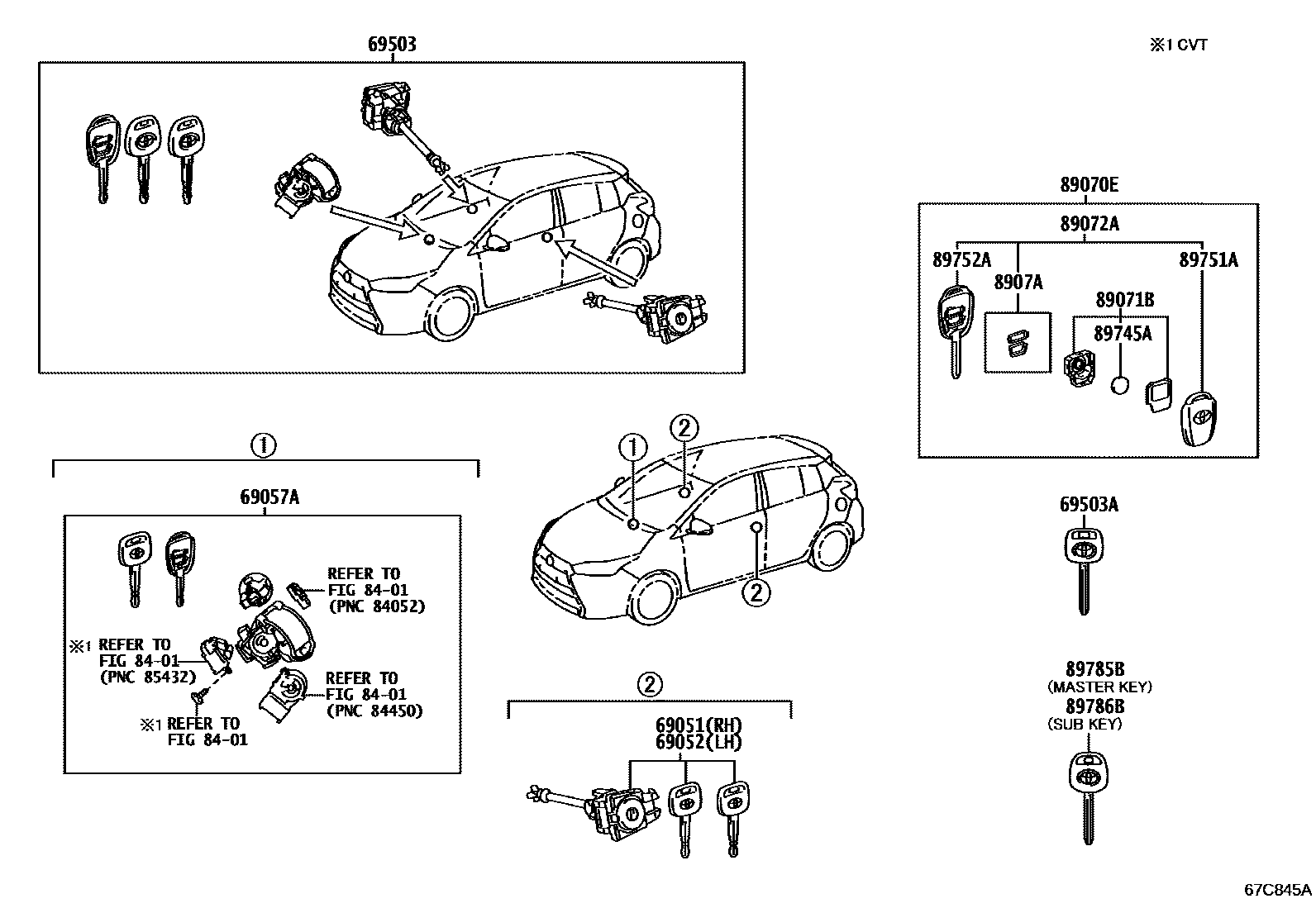

LOCK CYLINDER SET

0001 1WITHOUT(SMART ENTRY) 0002 1WITH(SMART ENTRY) 0003 1WITHOUT(SMART ENTRY) 0004 1WITH(SMART ENTRY)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0D360iNSP150,151..LHD..(D,R)202303

ECO PACKAGE

main69051-0D370iNSP150..PKN202407

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0D340iNSP152202303

ECO PACKAGE

main69052-0D350iNSP150..PKN202407

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0D420iNSP150,151..CVT..(GCC,GEN)202303

main69057-0D430iNSP150,151..5F..GEN202303

main69057-0D840iNSP151..5F..VN202304

main69057-0D870iNSP151..CVT..R..VN202304

main69057-0D880iNSP150..5F..PKN202407

main69057-0D890iNSP150..CVT..PKN202407

main69057-0DA20iNSP152202303

ECO PACKAGE

69503CYLINDER SET, LOCK

main69005-0DF90iNSP150,151..5F..GEN202303

main69005-0DG00iNSP150,151..CVT..(GCC,GEN)202303

main69005-0DG40iNSP152202303

ECO PACKAGE

main69005-0DG60iNSP151..CVT..R..VN202304-202403

main69005-0DG61iNSP151..CVT..R..VN202403

main69005-0DG70iNSP151,152..RHD202303

main69005-0DG90iNSP151..5F..VN202304-202403

main69005-0DG91iNSP151..5F..VN202403

main69005-0DJ20iNSP151..G..VN202303

main69005-0DK10iNSP150..5F..PKN202407

main69005-0DK20iNSP150..CVT..PKN202407

69503AKEY, BLANK

main69515-0K140iNSP152202303

MASTER KEY,W(*68),ECO PACKAGE,(L)

main69515-0K140iNSP151..5F..VN202304

MASTER KEY,W(*68),(L)

main69515-52180iNSP151..G..VN;NSP151,152..RHD202303

MASTER KEY

main90999-00199iNSP151..5F..VN202304

MASTER KEY,W(*68),(J)

main90999-00199iNSP152202303

MASTER KEY,W(*68),ECO PACKAGE,(J)

8401

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-0D572iNSP150..CVT..GEN202303

PANAMA

main89070-0D581iNSP151..R..GEN202303

CHILE SPEC

main89070-0D581iNSP151..R..GEN202303

ECUADOR

main89070-0D581iNSP151..R..GEN202303

COSTA RICA SPEC

main89070-0D581iNSP150..R202303

GUATEMALA

main89070-0D601iNSP152202303

ECO PACKAGE

main89070-0DA41iNSP151..5F..VN202304

main89070-0DA51iNSP151..CVT..R..VN202304

main89070-0DC70iNSP150..PKN202407

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-0D061iNSP150..CVT..GEN202303

PANAMA

main89071-0D071iNSP152202303

GUATEMALA

main89071-0D071iNSP152202303

CHILE SPEC

main89071-0D071iNSP152202303

ECUADOR

main89071-0D071iNSP152202303

COSTA RICA SPEC

main89071-0D071iNSP152202303

ECO PACKAGE

main89071-0D160iNSP150..PKN202407

main89071-0D171iNSP151..R..VN202304

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-0D340iNSP151..CVT..R..GEN202303

ECUADOR

main89072-0D340iNSP150..R202303

GUATEMALA

main89072-0D340iNSP150..R202303

CHILE SPEC

main89072-0D340iNSP150..R202303

COSTA RICA SPEC

main89072-0D341iNSP150..CVT..GEN202303

PANAMA

main89072-0D360iNSP152202303

ECO PACKAGE

main89072-0D600iNSP151..5F..VN202304

main89072-0D610iNSP151..CVT..R..VN202304

main89072-0D650iNSP150..PKN202407

8907ASWITCH SET, TRANSMITTER

main8907A-22010iNSP151..R..VN202304

main8907A-52010iNSP150,151..GCC,GEN202303

ECO PACKAGE

89745ABATTERY, TRANSMITTER

main89745-0D040iNSP150,151..LHD..(D,R)202303

CR1620

main89745-0D040iNSP152202303

CR1620,ECO PACKAGE

main89745-0D060iNSP150..PKN202407

CR1620

89751ACOVER, TRANSMITTER HOUSING

main89751-0D130iNSP151..GEN202303

PANAMA

main89751-42090iNSP150..R;NSP151..R..VN202303

ECO PACKAGE

main89751-42090iNSP151..CVT..R..GEN202303

GUATEMALA

main89751-42090iNSP151..CVT..R..GEN202303

CHILE SPEC

main89751-42090iNSP151..CVT..R..GEN202303

ECUADOR

main89751-42090iNSP151..CVT..R..GEN202303

COSTA RICA SPEC

main89751-42090iNSP150..PKN202407

89752ACASE, TRANSMITTER HOUSING

main89752-0D120iNSP150,151..GCC,GEN202303

main89752-0D140iNSP152202303

ECO PACKAGE

main89752-0D190iNSP150..PKN202407

main89752-0D300iNSP151..5F..VN202304

main89752-0D310iNSP151..CVT..R..VN202304

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-08040iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT..(D,R)202303

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-08040iNSP151..CVT..R..VN202303-202403

BLANK KEY

main89786-0D040iNSP150..PKN202407

15 parts on this diagram · 4 diagrams in section
