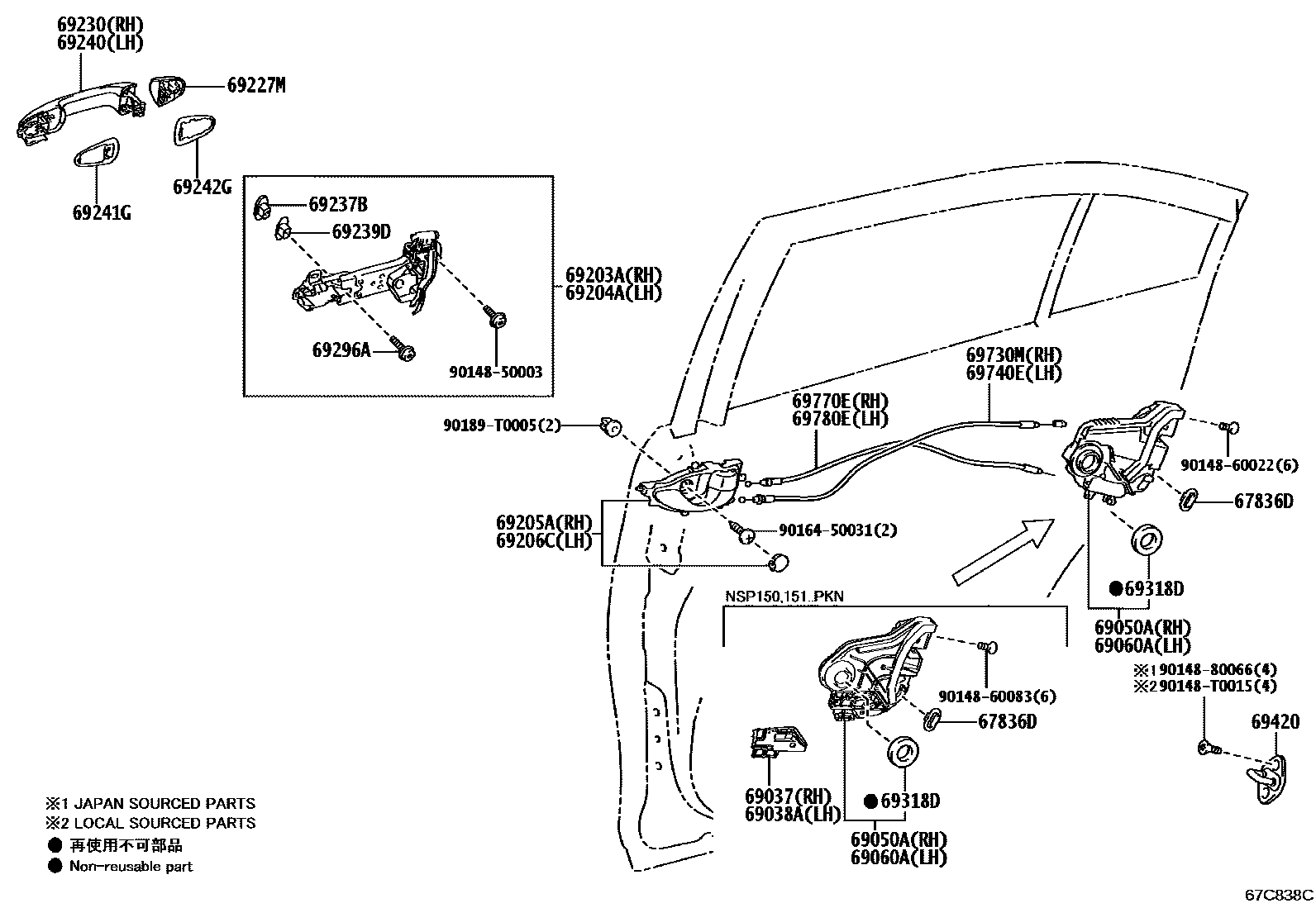

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-02030iNSP15#202303

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02040iNSP150,151..PKN202407

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02040iNSP150,151..PKN202407

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-0D200iNSP151..4D..G..VN;NSP151,152..5D..(MA,TH,VN)202303

main69050-0D210iNSP150,151..LHD..(D,R)202303

ECO PACKAGE

main69050-0D290iNSP151..PKN202407

main69050-0D430iNSP150..PKN202407

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-0D200iNSP151..4D..G..VN;NSP151,152..5D..(MA,TH,VN)202303

main69060-0D210iNSP150,151..LHD..(D,R)202303

ECO PACKAGE

main69060-0D290iNSP151..PKN202407

main69060-0D440iNSP150..PKN202407

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0D210iNSP150,152..R;NSP151..GEN,PKN,VN202303

main69203-0D260iNSP151..MA202305

main69203-0D270iNSP150..PKN202407

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0D210iNSP150,152..R;NSP151..GEN,PKN,VN202303

main69204-0D260iNSP151..MA202305

main69204-0D270iNSP150..PKN202407

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0D330-A0iNSP151..D;NSP150,151..CVT..R..(GCC,VN)202303

IVORY,TRIM0#

main69205-0D330-C0iNSP151..D;NSP150,151..R..(GCC,VN)202303

BLACK,TRIM2#

main69205-0D340-A0iNSP151..G..VN;NSP150,151..R..GEN202303

IVORY,TRIM0#

main69205-0D340-C0iNSP150,151..R..GEN202303

BLACK,TRIM2#

main69205-0D380-C0iNSP151..R..MA202305

BLACK,TRIM2#

main69205-0D390-C0iNSP151..G..MA202305

BLACK,TRIM2#

main69205-0D630-A0iNSP150..D202407

IVORY,TRIM0#

main69205-0D640-A0iNSP151..PKN202407

IVORY,TRIM0#

main69205-0D640-C0iNSP151..CVT..PKN202407

BLACK,TRIM2#

main69205-0D650-A0iNSP150..G202407

IVORY,TRIM0#

main69205-0D660-C0iNSP152202303

BLACK,TRIM2#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0D330-A0iNSP151..D;NSP150,151..CVT..R..(GCC,VN)202303

IVORY,TRIM0#

main69206-0D330-C0iNSP151..D;NSP150,151..R..(GCC,VN)202303

BLACK,TRIM2#

main69206-0D340-A0iNSP151..G..VN;NSP150,151..R..GEN202303

IVORY,TRIM0#

main69206-0D340-C0iNSP150,151..R..GEN202303

BLACK,TRIM2#

main69206-0D380-C0iNSP151..R..MA202305

BLACK,TRIM2#

main69206-0D390-C0iNSP151..G..MA202305

BLACK,TRIM2#

main69206-0D630-A0iNSP150..D202407

IVORY,TRIM0#

main69206-0D640-A0iNSP151..PKN202407

IVORY,TRIM0#

main69206-0D640-C0iNSP151..CVT..PKN202407

BLACK,TRIM2#

main69206-0D650-A0iNSP150..G202407

IVORY,TRIM0#

main69206-0D660-C0iNSP152202303

BLACK,TRIM2#

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69227-0D909iNSP150..PKN202407

LESS COLOR

main69227-0K200iNSP151..G..(PKN,VN)202303

*CR

main69227-0K350iNSP151..G..MA202305

PLATED

main69227-0K905iNSP15#..(D,R)..(GCC,GEN,TH,VN)202303

LESS COLOR

sub69227-0K910

main69227-0K912iNSP151..R..MA202305

LESS COLOR

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0D984iNSP150..PKN202407

PAINT REQ.

main69210-0K200iNSP151..G..(PKN,VN)202303

PLATED

main69210-0K370iNSP151..G..MA202305

NO PAINT REQ.

main69210-0K901iNSP15#..(D,R)..(GCC,GEN,TH,VN)202303

PAINT REQ.

sub69210-0K924

main69210-0K938iNSP151..R..MA202305

PAINT REQ.

69237BNUT, REAR DOOR HANDLE

main69237-0E010iNSP150..PKN202407

main69237-0K040iNSP150,152..R;NSP151..GEN,PKN,VN202303

main69237-0K060iNSP151..MA202305

69239DBUSH, REAR DOOR HANDLE

main69239-0K040iNSP151..MA202305

main69239-0K080iNSP15#..GCC,GEN,PKN,TH,VN202303

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-0D984iNSP150..PKN202407

PAINT REQ.

main69210-0K200iNSP151..G..(PKN,VN)202303

PLATED

main69210-0K370iNSP151..G..MA202305

NO PAINT REQ.

main69210-0K901iNSP15#..(D,R)..(GCC,GEN,TH,VN)202303

PAINT REQ.

sub69210-0K924

main69210-0K938iNSP151..R..MA202305

PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0K041iNSP15#..GCC,GEN,PKN,TH,VN202303

main69241-0K100iNSP151..MA202305

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0K030iNSP15#..GCC,GEN,PKN,TH,VN202303

main69242-0K090iNSP151..MA202305

69296ASCREW, DOOR INSIDE HANDLE

main69296-0K040iNSP151..MA202305

main69296-0M010iNSP15#..GCC,GEN,PKN,TH,VN202303

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iNSP15#202303

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D060iNSP150,151..PKN202407

main69410-0D070iNSP15#..GCC,GEN,MA,TH,VN202303

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-0D270iNSP15#..GCC,GEN,MA,TH,VN202303

main69730-0D290iNSP150,151..PKN202407

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-0D270iNSP15#..GCC,GEN,MA,TH,VN202303

main69730-0D290iNSP150,151..PKN202407

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-0D200iNSP15#..GCC,GEN,MA,TH,VN202303

main69770-0D220iNSP150,151..PKN202407

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-0D200iNSP15#..GCC,GEN,MA,TH,VN202303

main69770-0D220iNSP150,151..PKN202407

9014850003

main90148-50003

9014860022

main90148-60022

9014860083

main90148-60083

9014880066

main90148-80066

90148T0015

main90148-T0015

9016450031

main90164-50031

90189T0005

main90189-T0005

30 parts on this diagram · 1 diagram in section
