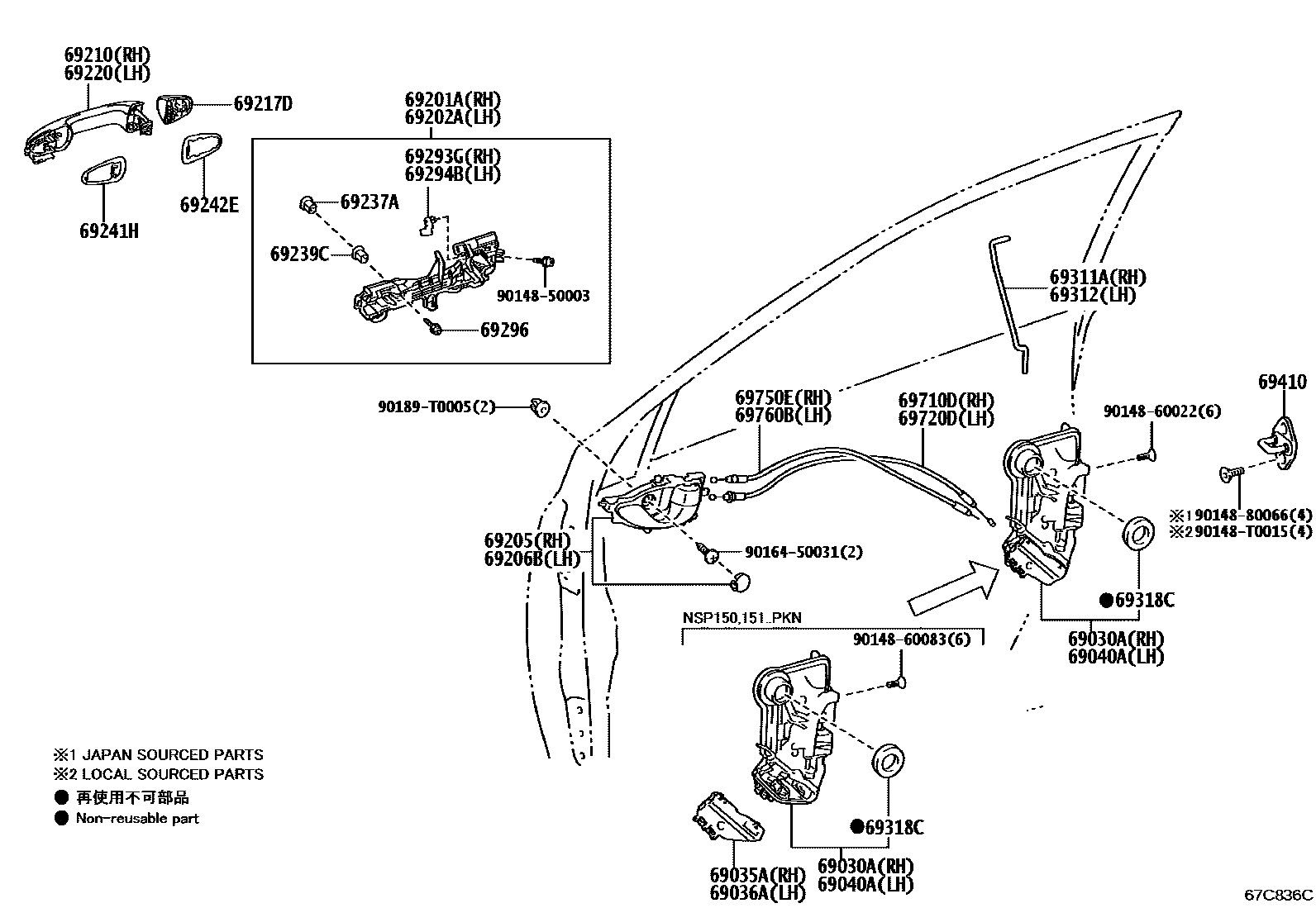

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-0D370iNSP151,152..RHD..5D202303

main69030-0D380iNSP151..G..VN202303

main69030-0D390iNSP150,151..LHD..(D,R)202303

main69030-0K090iNSP150,151..PKN202407

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02040iNSP150,151..PKN202407

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02040iNSP150,151..PKN202407

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-0D400iNSP150,151..LHD202303

main69040-0D410iNSP151,152..RHD..5D202303

main69040-0D670iNSP150..PKN202407

main69040-0K030iNSP151..PKN202407

main69040-0D420iNSP152202303

ECO PACKAGE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0D220iNSP150..PKN202407

main69201-0K061iNSP150,152..R;NSP151..GEN,PKN,VN202303

main69201-0K090iNSP151..MA202305

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0D220iNSP150..PKN202407

main69202-0K061iNSP150,152..R;NSP151..GEN,PKN,VN202303

main69202-0K090iNSP151..MA202305

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0D330-A0iNSP151..D;NSP150,151..CVT..R..(GCC,VN)202303

IVORY,TRIM0#

main69205-0D330-C0iNSP151..D;NSP150,151..R..(GCC,VN)202303

BLACK,TRIM2#

main69205-0D340-A0iNSP151..G..VN;NSP150,151..R..GEN202303

IVORY,TRIM0#

main69205-0D340-C0iNSP150,151..R..GEN202303

BLACK,TRIM2#

main69205-0D380-C0iNSP151..R..MA202305

BLACK,TRIM2#

main69205-0D390-C0iNSP151..G..MA202305

BLACK,TRIM2#

main69205-0D630-A0iNSP150..D202407

IVORY,TRIM0#

main69205-0D640-A0iNSP151..PKN202407

IVORY,TRIM0#

main69205-0D640-C0iNSP151..CVT..PKN202407

BLACK,TRIM2#

main69205-0D650-A0iNSP150..G202407

IVORY,TRIM0#

main69205-0D660-C0iNSP152202303

BLACK,TRIM2#

main69205-YP010-C0iNSP151..G..VN;NSP15#..R..(GEN,TH)202303

YP2 PACKAGE,BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0D330-A0iNSP151..D;NSP150,151..CVT..R..(GCC,VN)202303

IVORY,TRIM0#

main69206-0D330-C0iNSP151..D;NSP150,151..R..(GCC,VN)202303

BLACK,TRIM2#

main69206-0D340-A0iNSP151..G..VN;NSP150,151..R..GEN202303

IVORY,TRIM0#

main69206-0D340-C0iNSP150,151..R..GEN202303

BLACK,TRIM2#

main69206-0D380-C0iNSP151..R..MA202305

BLACK,TRIM2#

main69206-0D390-C0iNSP151..G..MA202305

BLACK,TRIM2#

main69206-0D630-A0iNSP150..D202407

IVORY,TRIM0#

main69206-0D640-A0iNSP151..PKN202407

IVORY,TRIM0#

main69206-0D640-C0iNSP151..CVT..PKN202407

BLACK,TRIM2#

main69206-0D650-A0iNSP150..G202407

IVORY,TRIM0#

main69206-0D660-C0iNSP152202303

BLACK,TRIM2#

main69206-YP010-C0iNSP151..G..VN;NSP15#..R..(GEN,TH)202303

YP2 PACKAGE,BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0D140iNSP151..G..MA202305

PLATED

main69210-0D340-A0iNSP152202303

SUPER WHITE 2,040

main69210-0D340-A3iNSP151,152..RHD..R202303

PLATINUM WHITE PEARL MC.,089 ,2PS

main69210-0D340-B0iNSP151..R..MA202305

SILVER ME.,1D4 ,2US

main69210-0D340-B0iNSP152202303

SILVER ME.,1D4

main69210-0D340-B4iNSP152202303

GRAY ME.,1G3

main69210-0D340-B8iNSP152202303

GRAY ME.,S44

main69210-0D340-B9iNSP152202303

CEMENT GRAY ME.,1H5 ,2YY

main69210-0D340-C2iNSP151,152..RHD..R202303

ATTITUDE BLACK MC.,218

main69210-0D340-D2iNSP151,152..RHD..R202303

RED M.M.,2QL ,3R3

main69210-0D340-D4iNSP152202303

SCARLET SE.,R77 ,XM1

main69210-0D340-J3iNSP151,152..RHD..R202303

CYAN METALLIC,2UH ,8W9

main69210-0D340-P0iNSP152202303

METAL STREAM ME,1K0

main69210-0D984iNSP150..PKN202407

PAINT REQ.

main69210-0K200iNSP151..G..VN202303

PLATED

main69210-0K901iNSP152202303

PAINT REQ.,ECO PACKAGE

sub69210-0K924

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-0D926iNSP150..PKN202407

LESS COLOR,DRIVER & PASSENGER

main69217-0K370iNSP151..G..(PKN,VN)202303

*CR,DRIVER SIDE

main69217-0K380iNSP151..G..(PKN,VN)202303

*CR,PASSENGER SIDE

main69217-0K690iNSP151..G..MA202305

PLATED,PASSENGER SIDE

main69217-0K710iNSP151..G..MA202305

PLATED,DRIVER SIDE

main69217-0K909iNSP152202303

LESS COLOR,DRIVER & PASSENGER

sub69217-0K919

main69217-0K923iNSP151..R..MA202305

LESS COLOR,DRIVER SIDE

main69217-0K924iNSP151..R..MA202305

LESS COLOR,PASSENGER SIDE

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0D140iNSP151..G..VN202303

PLATED

main69210-0D984iNSP150..PKN202407

PAINT REQ.

main69210-0K200iNSP151..PKN202407

PLATED

main69210-0K370iNSP151..G..MA202305

NO PAINT REQ.

main69210-0K901iNSP15#..(D,R)..(GCC,GEN,TH,VN)202303

PAINT REQ.

sub69210-0K924

main69210-0K938iNSP151..R..MA202305

PAINT REQ.

69237ANUT, FRONT DOOR HANDLE

main69237-0E010iNSP150..PKN202407

main69237-0K040iNSP150,152..R;NSP151..GEN,PKN,VN202303

main69237-0K060iNSP151..MA202305

69239CBUSH, FRONT DOOR HANDLE

main69239-0K040iNSP151..MA202305

main69239-0K080iNSP15#..GCC,GEN,PKN,TH,VN202303

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0K041iNSP15#..GCC,GEN,PKN,TH,VN202303

main69241-0K100iNSP151..MA202305

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0K030iNSP15#..GCC,GEN,PKN,TH,VN202303

main69242-0K090iNSP151..MA202305

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-0K070iNSP151..MA202305

main69293-12030iNSP15#..GCC,GEN,PKN,TH,VN202303

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-0K080iNSP151..MA202305

main69293-12040iNSP15#..GCC,GEN,PKN,TH,VN202303

69296SCREW, DOOR INSIDE HANDLE

main69296-0K040iNSP151..MA202305

main69296-0M010iNSP15#..GCC,GEN,PKN,TH,VN202303

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0D230iNSP15#..GCC,GEN,MA,TH,VN202303

main69311-0D250iNSP150,151..PKN202407

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0D230iNSP15#..GCC,GEN,MA,TH,VN202303

main69312-0D250iNSP150,151..PKN202407

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iNSP15#202303

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D060iNSP150,151..PKN202407

main69410-0D070iNSP15#..GCC,GEN,MA,TH,VN202303

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-0D280iNSP15#..GCC,GEN,MA,TH,VN202303

main69710-0D300iNSP150,151..PKN202407

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-0D280iNSP15#..GCC,GEN,MA,TH,VN202303

main69710-0D300iNSP150,151..PKN202407

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-0D220iNSP15#..GCC,GEN,MA,TH,VN202303

main69750-0D240iNSP150,151..PKN202407

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-0D220iNSP15#..GCC,GEN,MA,TH,VN202303

main69750-0D240iNSP150,151..PKN202407

9014850003

main90148-50003

9014860022

main90148-60022

9014860083

main90148-60083

9014880066

main90148-80066

90148T0015

main90148-T0015

9016450031

main90164-50031

90189T0005

main90189-T0005

33 parts on this diagram · 1 diagram in section
