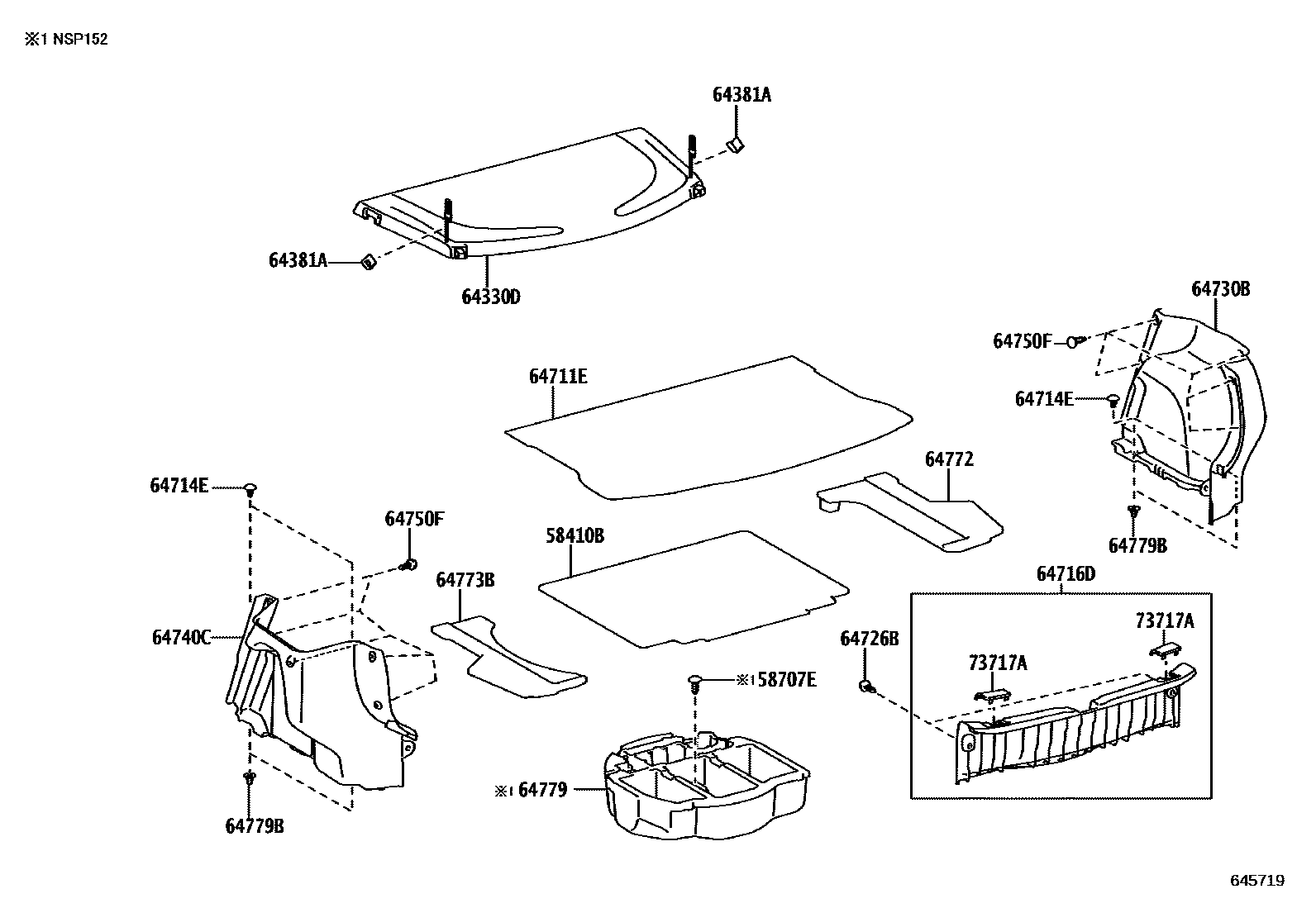

DECK BOARD & DECK TRIM COVER
58410BBOARD ASSY, DECK
SPARE TIRE-DOP SPARE TIRE CLAMP
BLACK,TRIM2#
58707EPLUG SET, HOLE
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
64381AHANGER, PACKAGE TRAY TRIM
64711EMAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,2#
SPARE TIRE-DOP SPARE TIRE CLAMP,BLACK,TRIM2#
BLACK,TRIM2#
64714ECLIP(FOR DECK TRIM SIDE COVER)
64716DCOVER, DECK TRIM, REAR
64726BCLIP, DECK REAR TRIM
BLACK,TRIM2#,(L)
BLACK,TRIM0#,2#,(L)
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
BLACK,TRIM2#,(L)
BLACK,TRIM0#,2#,(L)
BLACK,TRIM2#
64772PAD, SPARE WHEEL COVER
64773BPAD, SPARE WHEEL COVER, NO.2
64779TRAY, SPARE WHEEL COVER
64779BSTOPPER, SPARE WHEEL COVER
73717ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
RH
LH
16 parts on this diagram · 1 diagram in section
