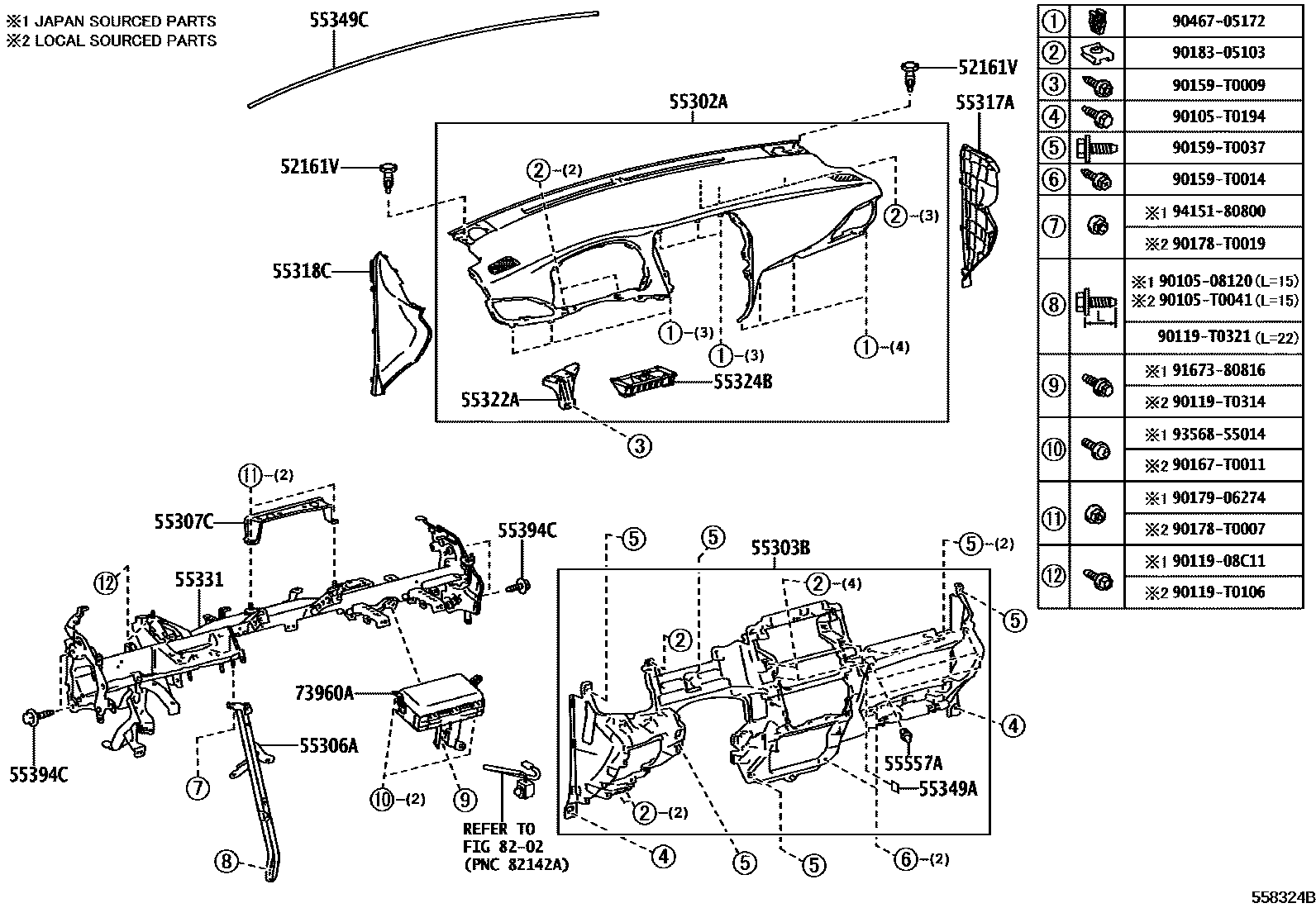

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE 0009 1 0010 1DRIVER SIDE 0011 1CENTER 0012 1PASSENGER SIDE 0013 1 0014 1DRIVER SIDE 0015 1CENTER 0016 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040iNSP15#¥120202303

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D210-C0iNSP150..GCC;NSP151..GEN202303

BLACK,TRIM0#,2#

main55302-0D240-C0iNSP152202303

BLACK,TRIM2#

main55302-0D240-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

main55302-0D250-C0iNSP151..5F..GEN202303

GUATEMALA,BLACK,TRIM0#,2#

main55302-0D250-C0iNSP151..5F..GEN202303

CHILE SPEC,BLACK,TRIM0#,2#

main55302-0D250-C0iNSP151..5F..GEN202303

ECUADOR,BLACK,TRIM0#,2#

main55302-0D250-C0iNSP151..5F..GEN202303

COSTA RICA SPEC,BLACK,TRIM0#,2#

main55302-0D250-C0iNSP151..R..GEN202303

BLACK,TRIM0#,2#

main55302-0D250-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main55302-0D260-C0iNSP151..MA202305

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D201-C0iNSP152202303

BLACK,TRIM2#

main55303-0D211-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM0#,2#

main55303-0D211-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main55303-0D220-C0iNSP151..MA202305

BLACK,TRIM2#

main55303-0D280-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D390iNSP151,152..RHD..5D202303

main55306-0D400iNSP150,151..LHD..5D202303

main55306-0D460iNSP151..4D..VN202304

main55306-0D480iNSP150,151..PKN202407

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55308-0D070iNSP151,152..RHD..5D202303

main55308-0D080iNSP150,151..LHD202303

main55308-0D170iNSP150,151..PKN202407

55317APANEL, INSTRUMENT SIDE, RH

main55317-0D260-C0iNSP152202303

BLACK,TRIM2#

main55317-0D280-C0iNSP151..MA202305

BLACK,TRIM2#

main55317-0D350-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

main55318-0D340-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM0#,2#

main55318-0D340-C0iNSP151..5F..VN202304

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-0D360-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main55317-0D360-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM0#,2#

main55318-0D200-C0iNSP152202303

BLACK,TRIM2#

main55318-0D240-C0iNSP151..MA202305

BLACK,TRIM2#

main55318-0D330-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-0D220iNSP15#..PKN,TH202303

main55322-0D230iNSP150,151..LHD202303

main55322-0D240iNSP151..MA202305

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-0D220iNSP15#..PKN,TH202303

main55324-0D230iNSP150,151..LHD202303

main55324-0D240iNSP151..MA202305

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D610iNSP150,151..LHD..5D202303

main55330-0D751iNSP152202303

main55330-0D771iNSP151..MA202305

main55330-0D880iNSP151..4D..VN202304

main55330-0DA10iNSP150,151..PKN202407

55349ACUSHION, INSTRUMENT PANEL

main55349-0D360iNSP15#..GCC,GEN,PKN,TH,VN202303

main55349-0D370iNSP151..MA202305

55349CCUSHION, INSTRUMENT PANEL

main55349-0D240iNSP151..MA,PKN,VN;NSP150,152..GEN,PKN,TH202303

ECUADOR

main55349-0D240iNSP151..MA,PKN,VN;NSP150,152..GEN,PKN,TH202303

COSTA RICA SPEC

main55349-0D240iNSP151..CVT..R..GEN202303

GUATEMALA

main55349-0D240iNSP151..CVT..R..GEN202303

CHILE SPEC

main55349-0D320iNSP150..GCC;NSP151..GEN202303

55394CBOLT, INSTRUMENT PANEL

main55394-52010iNSP15#¥100202303

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-52030iNSP15#¥200202303

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0D160iNSP15#..RHD202303

main73960-0D170iNSP150,151..LHD202303

8202

9010508120

main90105-08120¥90

90105T0041

main90105-T0041

90105T0194

main90105-T0194¥90

9011908C11

main90119-08C11¥80

90119T0106

main90119-T0106¥80

90119T0314

main90119-T0314

90119T0321

main90119-T0321

90159T0009

main90159-T0009

90159T0014

main90159-T0014

90159T0037

main90159-T0037

90167T0011

main90167-T0011¥60

90178T0007

main90178-T0007¥80

90178T0019

main90178-T0019

9017906274

main90179-06274¥70

9018305103

main90183-05103¥90

9046705172

main90467-05172¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

35 parts on this diagram · 16 diagrams in section
