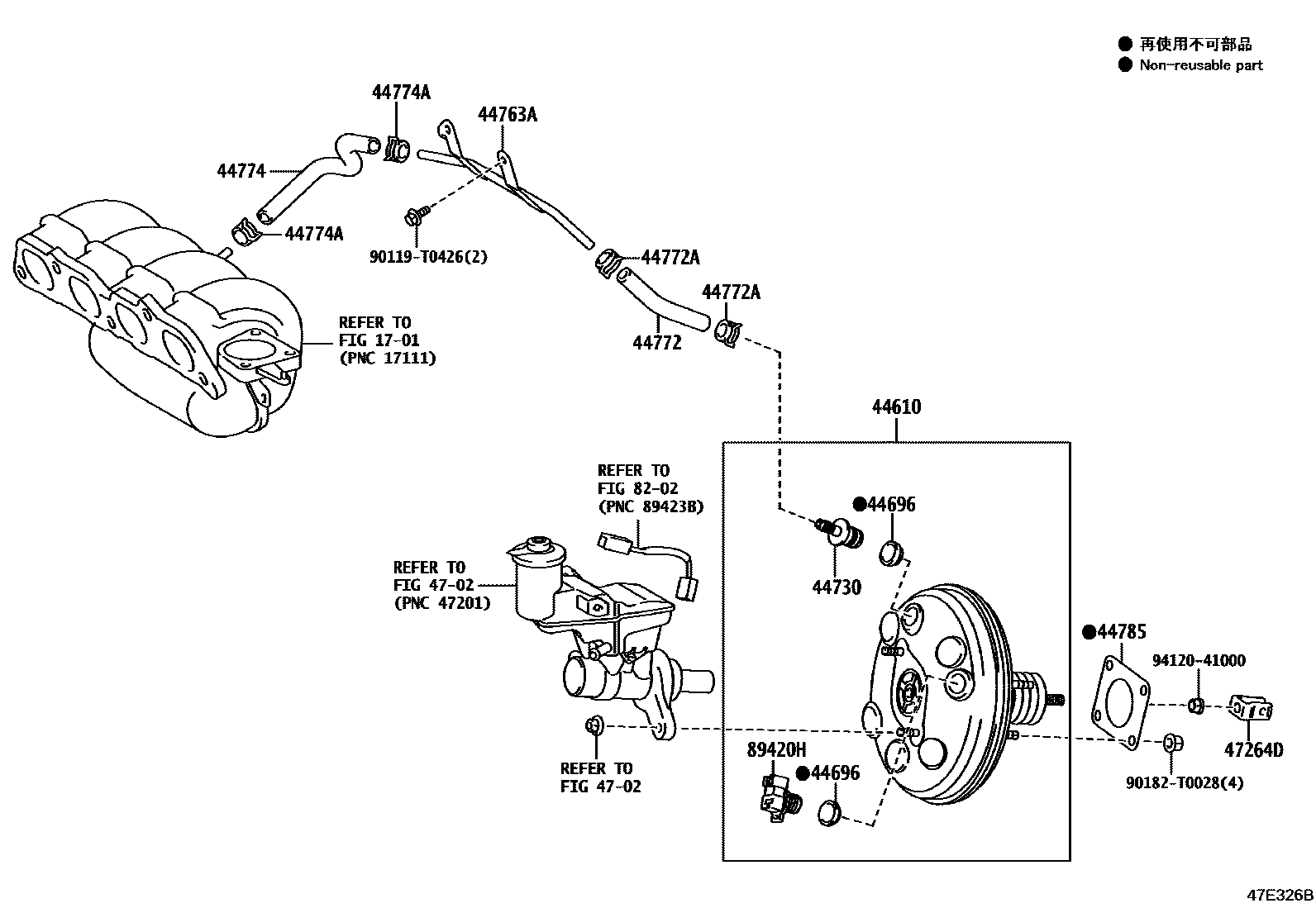

BRAKE BOOSTER & VACUUM TUBE
1701
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44763ATUBE, HOSE TO HOSE, NO.1
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
(L)
(J)
44774HOSE, UNION TO CONNECTOR TUBE
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
(L)
(J)
44785GASKET, BRAKE BOOSTER
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
8202
89420HSENSOR ASSY, VACUUM
90119T0426
main90119-T0426
90182T0028
main90182-T0028
9412041000
17 parts on this diagram · 5 diagrams in section
