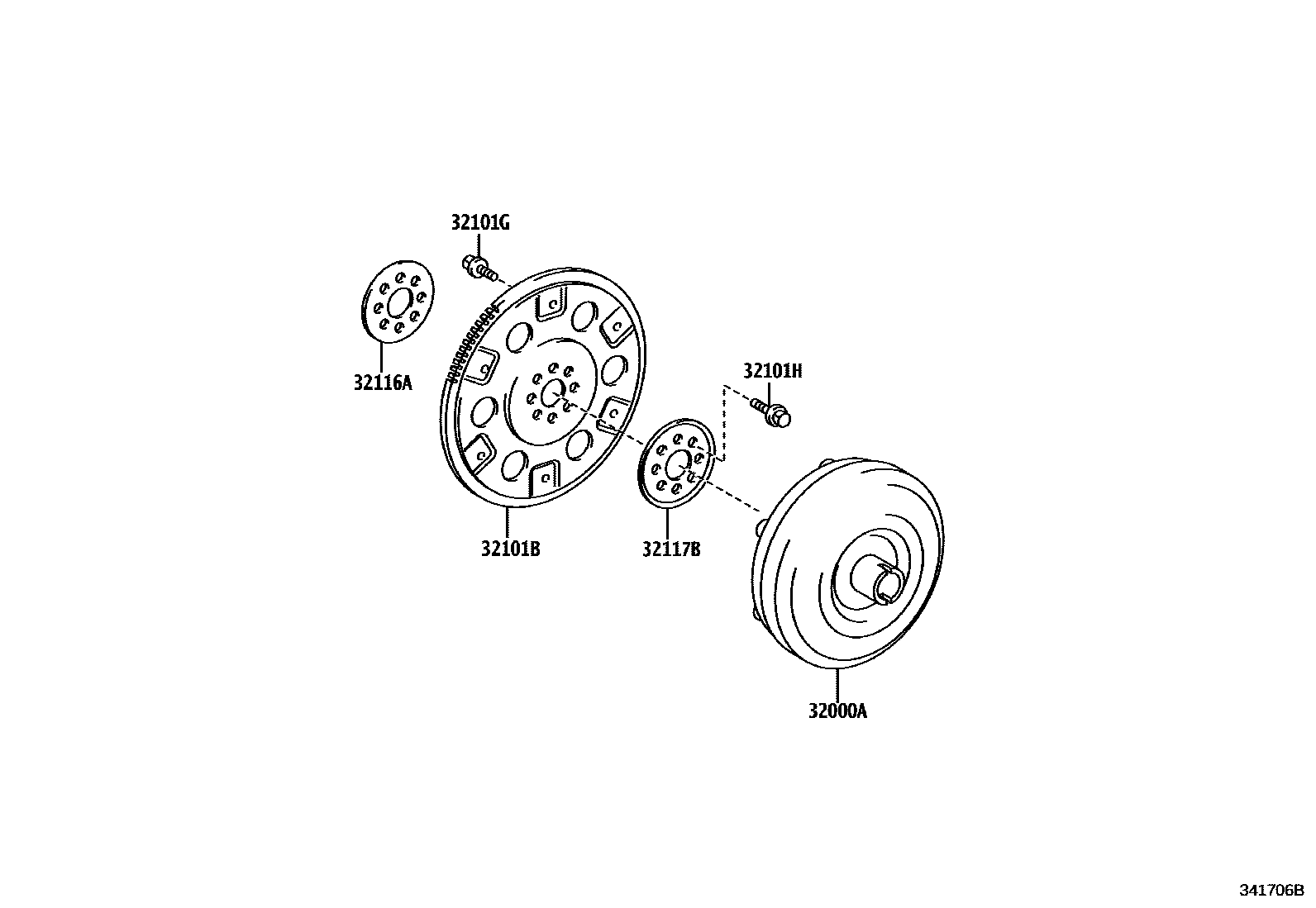

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K312,K411 0002 1K412

32000ACONVERTER ASSY, TORQUE

main32000-52160iNSP150..CVT202303

main32000-52201iNSP151..CVT202303-202503

TMH:REFER 34-01

main32000-52240iNSP152202303

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D040iNSP151..MA202305

main32101-52090iNSP152202303

main32111-52110iNSP150,151..CVT..(GCC,GEN,PKN,VN)202303

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNSP15#..CVT202303

*8-1.25PX12-8.4,BLACK

main90119-08498iNSP15#..CVT202303

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNSP15#..CVT202303

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iNSP15#..CVT202303

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iNSP15#..CVT202303

6 parts on this diagram · 2 diagrams in section
