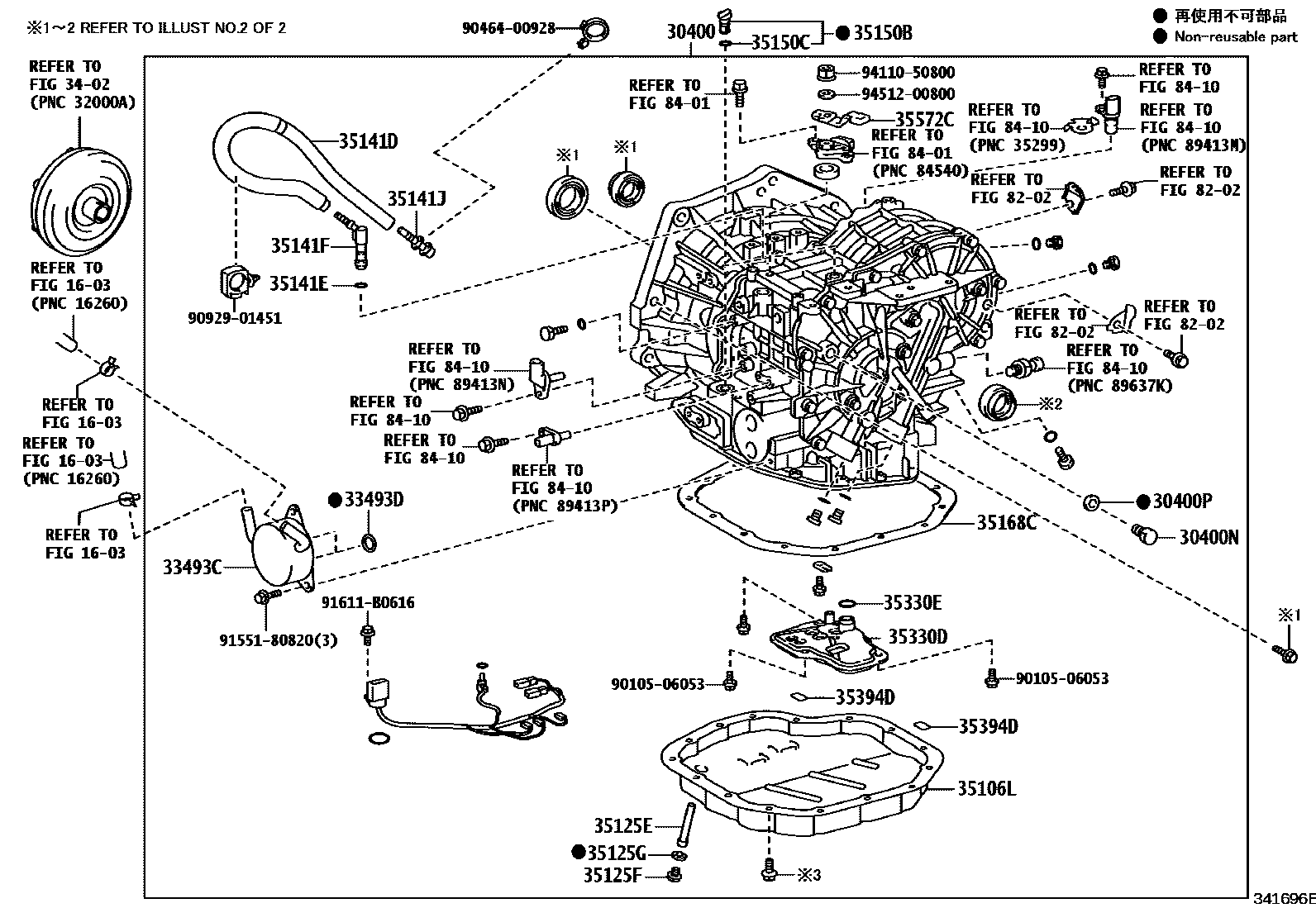

TRANSAXLE ASSY(CVT)

0001 1K411 0002 1K411 0003 1K312 0004 1K312 0005 1K412 0006 1K412 0007 1K412 0008 1K412

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-52440iNSP150..CVT¥315,000202303

K411

main30400-52450iNSP151..CVT202303

K312,TMH:REFER TO ILLUST.

main30400-52570iNSP152202303

K412

30400NPLUG, REFILL(CVT)

main90341-18077iNSP151..CVT¥190202303

TMH:REFER TO ILLUST.

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iNSP151..CVT¥110202303

TMH:REFER TO ILLUST.

33493CCOOLER, TRANSMISSION OIL

main32970-52010iNSP152202303

main33493-20100iNSP151..CVT¥11,900202303

MARK TOYOTA

main33493-52030iNSP151..CVT¥11,900202303

MARK DENSO

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012iNSP15#..CVT¥170202303

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12200iNSP151..CVT¥3,590202303

TMH:REFER TO ILLUST.

main35106-52090iNSP150..CVT¥3,380202303

main35106-52110iNSP152¥2,910202303

35125ETUBE, OVERFLOW(CVT)

main35125-12440iNSP151..CVT¥130202303

TMH:REFER TO ILLUST.

main35125-52200iNSP150..CVT¥330202303

main35125-52220iNSP152¥80202303

35125FPLUG, OVERFLOW(CVT)

main90341-12034iNSP151..CVT¥190202303

TMH:REFER TO ILLUST.

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iNSP151..CVT¥90202303

TMH:REFER TO ILLUST.

35141DHOSE(FOR BREATHER PLUG)

main35121-52020iNSP151..CVT¥590202303

TMH:REFER TO ILLUST.

main35121-52030iNSP150..CVT¥590202303

main35121-52040iNSP152202303

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iNSP151..CVT¥140202303

TMH:REFER TO ILLUST.

main90301-08015iNSP150,152..CVT¥140202303

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03191iNSP151..CVT¥260202303

TMH:REFER TO ILLUST.

main90930-03209iNSP150,152..CVT¥210202303

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03149iNSP151..CVT¥220202303

TMH:REFER TO ILLUST.

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iNSP152¥280202303

TMH:REFER TO ILLUST.

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iNSP151..CVT¥140202303

TMH:REFER TO ILLUST.

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12091iNSP151..CVT¥370202303

TMH:REFER TO ILLUST.

main35168-52030iNSP150..CVT¥470202303

main35168-52080iNSP152¥410202303

35330DSTRAINER ASSY, OIL

main35330-12050iNSP151..CVT¥4,480202303

TMH:REFER TO ILLUST.

main35330-52060iNSP150..CVT¥4,480202303

main35330-52080iNSP152¥3,580202303

35330ERING, O (FOR OIL STRAINER)

main90301-22014iNSP150..CVT¥130202303

main90301-22019iNSP152¥130202303

TMH:REFER TO ILLUST.

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010iNSP150,152..CVT¥280202303

TMH:REFER TO ILLUST.

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iNSP151..CVT¥390202303

TMH:REFER TO ILLUST.

main35572-52070iNSP150,152..CVT¥620202303

8202

8401

8410

9010506053

main90105-06053¥70

9046400928

main90464-00928

9092901451

main90929-01451¥110

9155180820

main91551-80820¥80

91611B0616

main91611-B0616¥110

9411050800

main94110-50800¥80

9451200800

main94512-00800¥80

32 parts on this diagram · 8 diagrams in section
