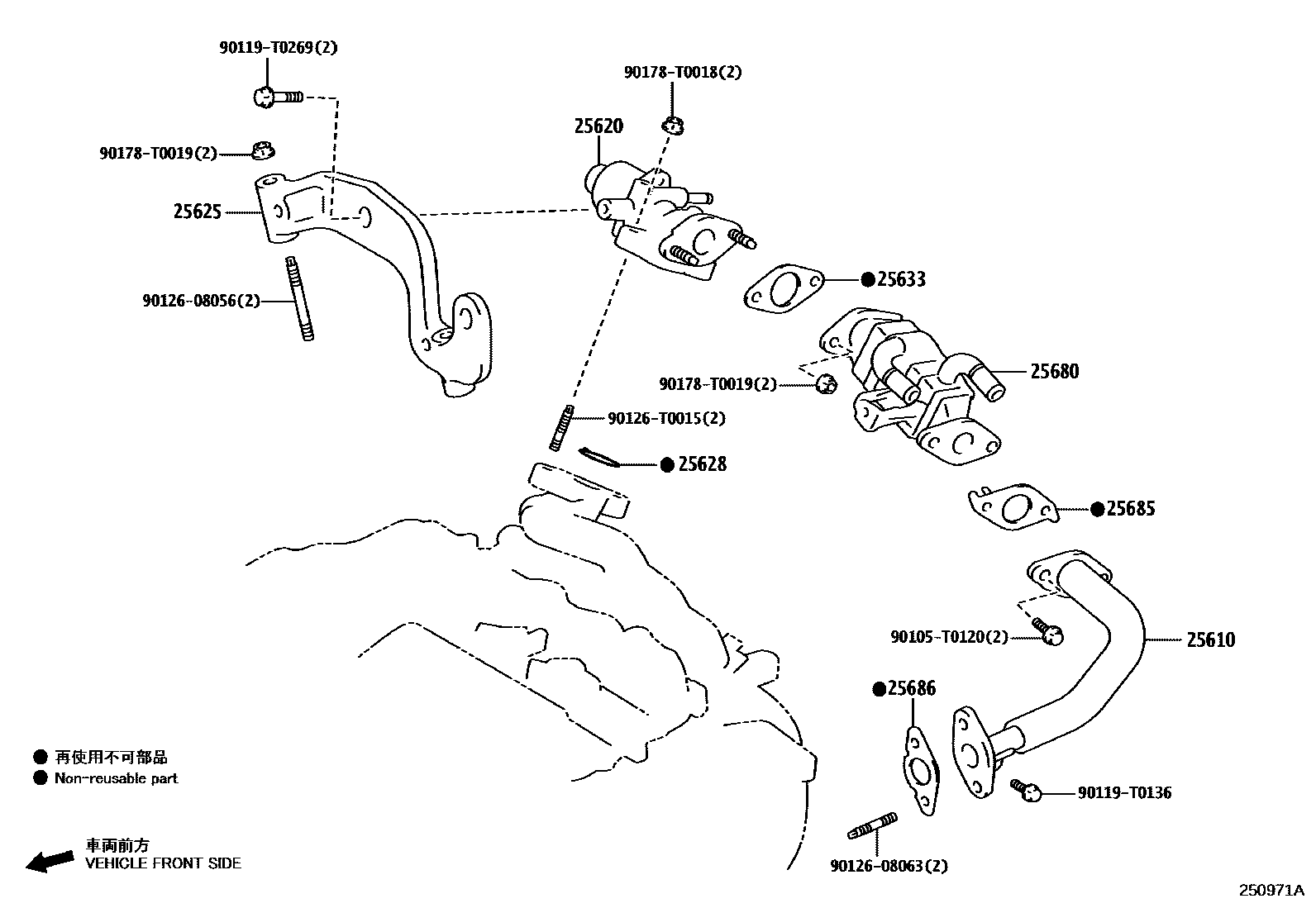

EXHAUST GAS RECIRCULATION SYSTEM

25610PIPE ASSY, EGR

main25610-0Y040i3NRFKE..NSP152202303

25620VALVE ASSY, EGR

main25620-47060i3NRFKE..NSP152202303

25625BRACKET, EGR VALVE

main25625-0Y040i3NRFKE..NSP152202303

25628GASKET, EGR INLET

main25628-0Y010i3NRFKE..NSP152202303

25633GASKET, EGR VALVE

main25633-0Y030i3NRFKE..NSP152202303

25680COOLER ASSY, EGR

main25680-0Y010i3NRFKE..NSP152202303

25685GASKET, EGR COOLER, NO.1

main25685-0Y050i3NRFKE..NSP152202303

25686GASKET, EGR COOLER, NO.2

main25685-0Y060i3NRFKE..NSP152202303

90105T0120

main90105-T0120

90119T0136

main90119-T0136

90119T0269

main90119-T0269

9012608056

main90126-08056

9012608063

main90126-08063

90126T0015

main90126-T0015

90178T0018

main90178-T0018

90178T0019

main90178-T0019

16 parts on this diagram · 1 diagram in section
