FUEL INJECTION SYSTEM

0001 1 0002 1

1603

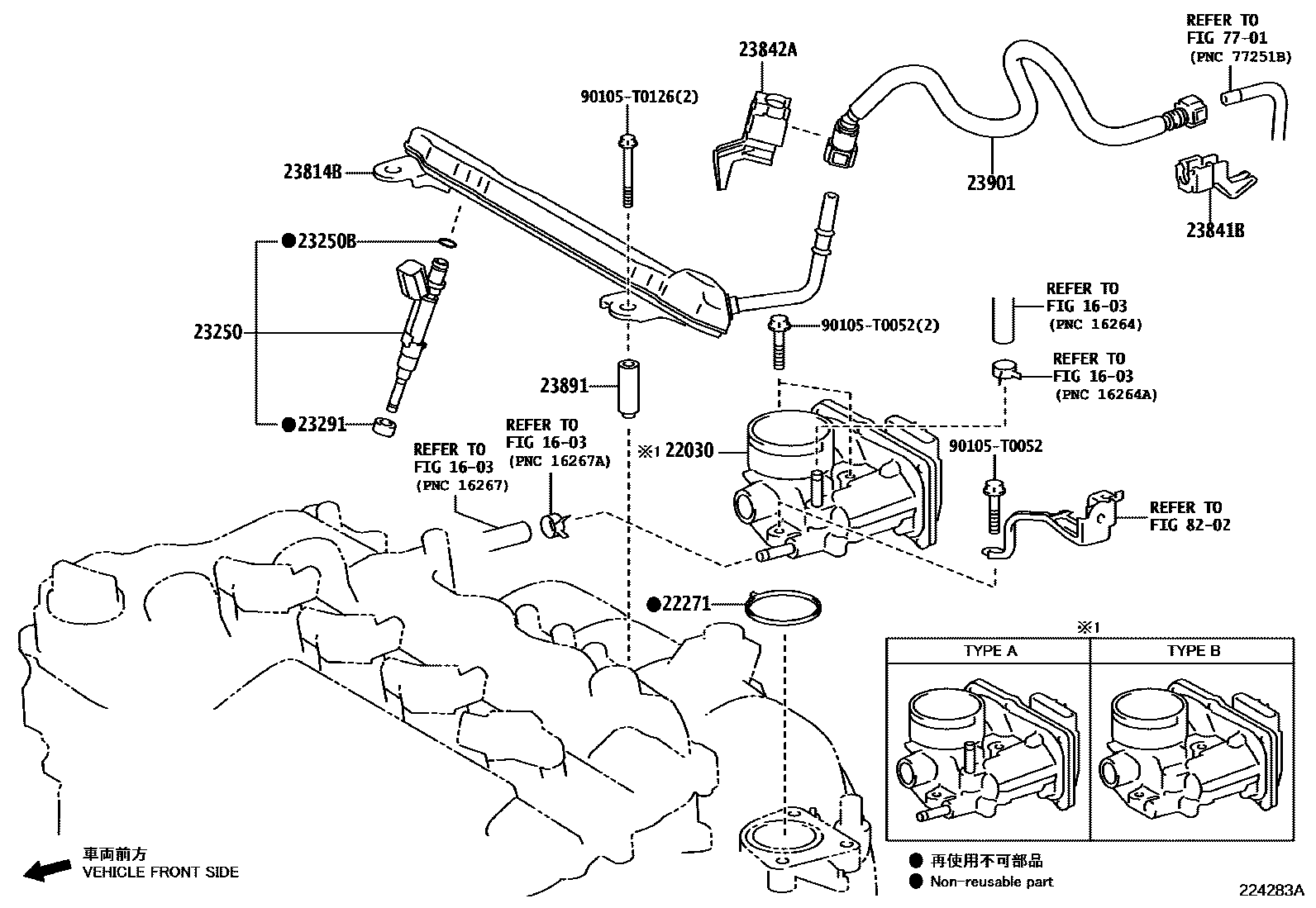

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y020i2NRFE..NSP151..5F..VN;1NRFE,2NRFE..NSP150,151..LHD..5D202303

TYPE A:REFER ILLUST.

main22030-0Y120i3NRFKE..NSP152202303

main22030-0Y140i2NRFE..NSP151..MA;2NRFE..NSP151..4D..CVT..VN202304

TYPE B:REFER ILLUST.

22271GASKET, THROTTLE BODY

main22271-0Y030i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

23250INJECTOR ASSY, FUEL

main23209-09340×4i1NRFE,2NRFE..NSP150,151..RHD202305

main23209-09390×4i1NRFE,2NRFE..NSP150,151..LHD..5D202303

*712 OR *432

main23209-49285×4i3NRFKE..NSP152202303

23250BRING, O(FOR FUEL INJECTOR)

main90301-07042×4i1NRFE,2NRFE,3NRFKE..NSP15#..RHD202303

*264

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020×4i1NRFE,2NRFE..NSP150,151..RHD202305

main23291-0Y050×4i3NRFKE..NSP152202303

*712 OR *432

23814BPIPE, FUEL DELIVERY

main23814-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*264

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0Y050i1NRFE,2NRFE..NSP150,151202303

main23841-37081i3NRFKE..NSP152202303

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0Y040i1NRFE,2NRFE,3NRFKE..NSP15#202303

23891SPACER, FUEL DELIVERY

main23891-47040×2i1NRFE,2NRFE..NSP150,151..LHD202303

*264

23901TUBE SUB-ASSY, FUEL

main23901-0Y150i2NRFE..NSP151..5D..VN;1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,PKN202303

main23901-0Y170i2NRFE..NSP151..4D..VN202304

main23901-0Y380i3NRFKE..NSP152202303

7701

8202

90105T0052

main90105-T0052

90105T0126

main90105-T0126

15 parts on this diagram · 2 diagrams in section
