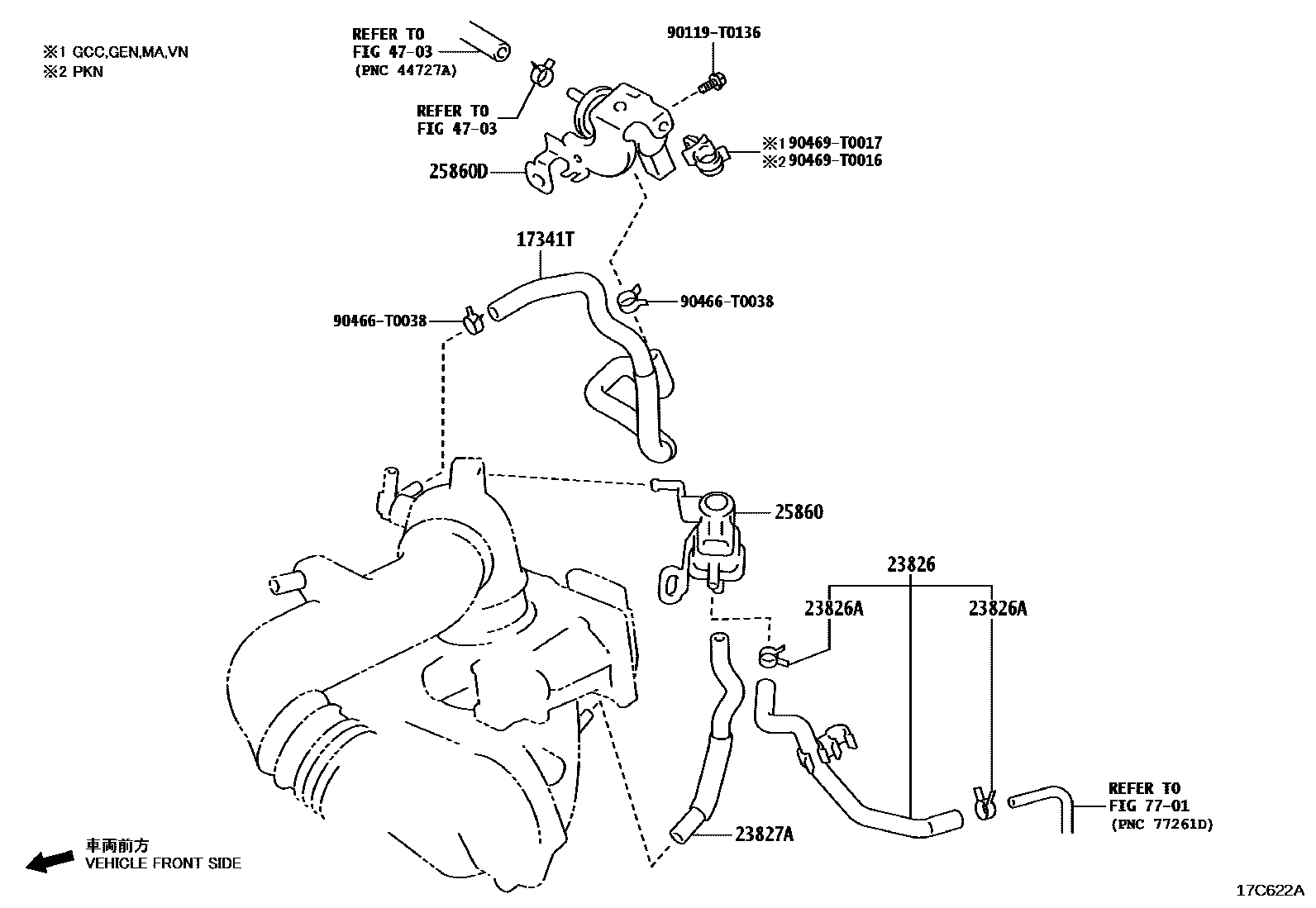

VACUUM PIPING

0001 1 0002 1 0003 1

17341THOSE, AIR, NO.1

main17341-0Y070i1NRFE,2NRFE..NSP150,151..CVT..(GCC,GEN,MA,VN)202303

main17341-0Y081i1NRFE,2NRFE..NSP150,151..CVT..PKN202407

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0Y140i1NRFE,2NRFE..NSP150,151202303

main23826-0Y380i3NRFKE..NSP152202303

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i1NRFE,2NRFE..NSP150,151202303

main90466-11004i3NRFKE..NSP152202303

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0Y140i1NRFE,2NRFE..NSP150,151202303

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0Y090i1NRFE,2NRFE..NSP150,151202303

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-0Y040i1NRFE,2NRFE..NSP150,151..CVT202303

main25860-0Y190i3NRFKE..NSP152202303

4703

7701

90119T0136

main90119-T0136

90466T0038

main90466-T0038

90469T0016

main90469-T0016

90469T0017

main90469-T0017

12 parts on this diagram · 3 diagrams in section
