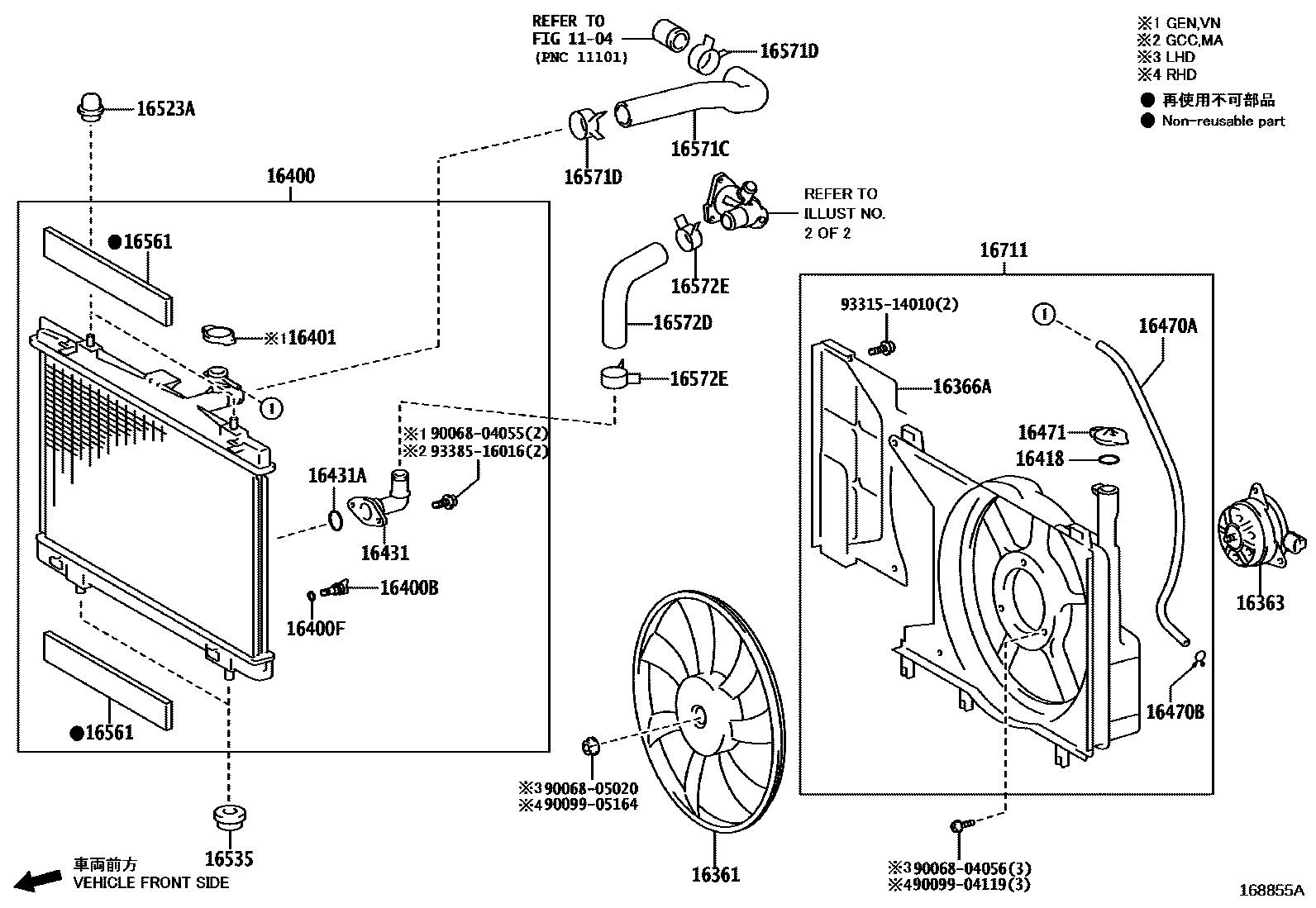

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1104

16361FAN

main16361-0M110i1NRFE,2NRFE,3NRFKE..NSP15#202303

16363MOTOR, COOLING FAN

main16363-0Y050i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,PKN202303

main16363-0Y140i2NRFE,3NRFKE..NSP151,152..TH,VN202303

16366AINSULATOR, COOLING FAN MOTOR

main16366-0Y240i1NRFE,2NRFE..NSP150,151..LHD202303

main16366-0Y250i2NRFE..NSP151..MA202305

16400RADIATOR ASSY

main16400-0Y100i3NRFKE..NSP152202303

main16400-0Y191i1NRFE,2NRFE..NSP150,151..GEN,VN202303

main16400-0Y200i2NRFE..NSP151..MA202305

main16400-0Y231i1NRFE..NSP150..GCC202303

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,MA,TH,VN202303

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0L060i1NRFE,2NRFE..NSP150,151..GEN,VN202303

main16492-21050i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,MA,TH202303

16401CAP SUB-ASSY, RADIATOR

main16401-0M010i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,MA,TH,VN202303

main16401-36020i1NRFE,2NRFE..NSP150,151..PKN202407

16418PACKING

main16476-0H060i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,MA,TH,VN202303

16431INLET, RADIATOR WATER

main16431-0Y190i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

16431ARING, O(FOR RADIATOR WATER INLET)

main16492-0Y100i1NRFE,2NRFE..NSP150,151..GEN,VN202303

main16492-0Y130i1NRFE..NSP150..GCC202303

main16492-0Y200i2NRFE..NSP151..MA202305

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-0Y050i3NRFKE..NSP152202303

main16377-0Y240i1NRFE,2NRFE..NSP150,151..LHD202303

main16377-0Y250i2NRFE..NSP151..MA202305

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,MA,TH,VN202303

16471CAP SUB-ASSY, RESERVE TANK

main16376-0Y050i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,MA,TH,VN202303

16523ACUSHION, RADIATOR SUPPORT

main16523-0M050i1NRFE,2NRFE,3NRFKE..NSP15#202303

(L)

main16523-21030i1NRFE,2NRFE,3NRFKE..NSP15#202303

(J)

16535SUPPORT, RADIATOR, LOWER

main90480-22025i1NRFE,2NRFE,3NRFKE..NSP15#202303

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0M010i1NRFE..NSP150..GCC202303

main16561-0M060i2NRFE..NSP151..MA202305

main16561-0Y010i1NRFE,2NRFE,3NRFKE..NSP15#..GEN,PKN,TH,VN202303

16571CHOSE, RADIATOR, NO.1

main16571-0Y100i1NRFE,2NRFE..NSP150,151..5F202303

sub16571-0Y101

main16571-0Y101i1NRFE,2NRFE,3NRFKE..NSP15#..CVT..(GCC,GEN,PKN,TH,VN)202303

main16571-0Y200i2NRFE..NSP151..MA202305

16571DCLIP, RADIATOR HOSE, NO.1

main96136-43901i1NRFE,2NRFE,3NRFKE..NSP15#202303

16572DHOSE, RADIATOR, NO.2

main16572-0Y080i3NRFKE..NSP152202303

main16572-0Y161i1NRFE,2NRFE..NSP150,151..GCC,GEN,PKN,VN202303

main16572-0Y190i2NRFE..NSP151..MA202305

16572ECLIP, RADIATOR HOSE, NO.2

main96136-43901i1NRFE,2NRFE,3NRFKE..NSP15#202303

16711SHROUD, FAN

main16711-0Y160i1NRFE,2NRFE..NSP150,151..GCC,GEN202303

main16711-0Y170i2NRFE..NSP151..MA202305

main16711-0Y320i1NRFE,2NRFE..NSP150,151..PKN202407

main16711-0Y330i3NRFKE..NSP152202303

main16711-0Y340i2NRFE..NSP151..VN202303

9006804055

main90068-04055

9006804056

main90068-04056

9006805020

main90068-05020

9009904119

main90099-04119

9009905164

main90099-05164

9331514010

main93315-14010

9338516016

main93385-16016

29 parts on this diagram · 6 diagrams in section
