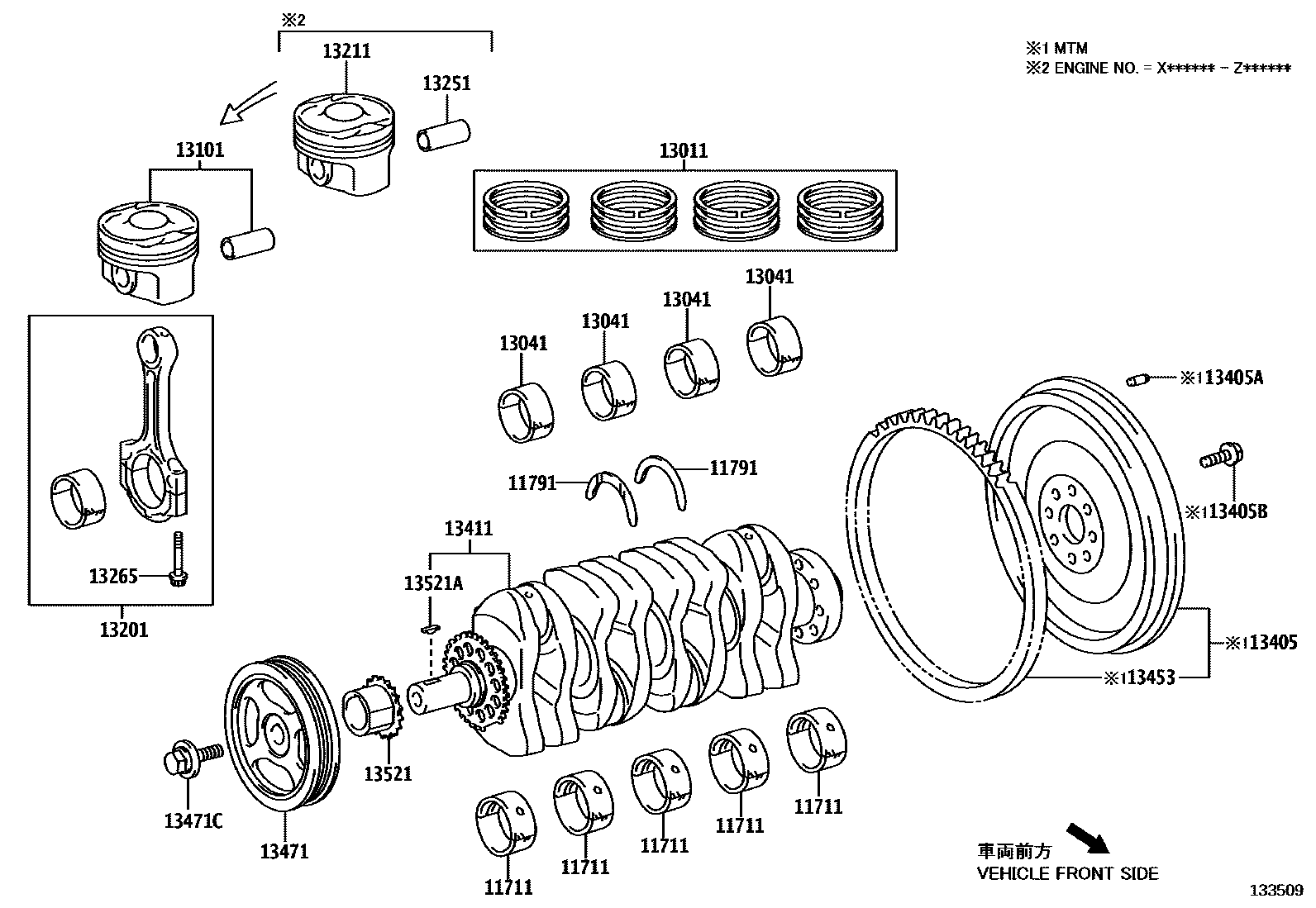

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK2,REFER REPAIR MANUAL
MARK2,(L),REFER R/M
MARK2
MARK3,(L),REFER R/M
MARK3,REFER REPAIR MANUAL
MARK3
MARK4,REFER REPAIR MANUAL
MARK4,(L),REFER R/M
MARK4
MARK5,REFER REPAIR MANUAL
MARK5,(L),REFER R/M
MARK5
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,*712 OR *432
STD,*264
STD
STD
STD
13011RING SET, PISTON
STD,*712 OR *432
STD,*264
STD
STD
13041BEARING, CONNECTING ROD
MARK1,*712 OR *432:*RRM
MARK1,*264:REFER R/M
MARK1,REFER REPAIR MANUAL
MARK1
MARK2,*264:REFER R/M
MARK2,*712 OR *432:*RRM
MARK2,REFER REPAIR MANUAL
MARK2
MARK3,*264:REFER R/M
MARK3,*712 OR *432:*RRM
MARK3,REFER REPAIR MANUAL
MARK3
13101PISTON SUB-ASSY, W/PIN
STD
STD,*712 OR *432
STD
STD,*712 OR *432
13201ROD SUB-ASSY, CONNECTING
*264
*264
*712 OR *432
*712 OR *432
13211PISTON
*264
*264
13251PIN, PISTON
*264
13265BOLT, CONNECTING ROD
(L),*712 OR *432
(L)
(L),*264
(J),*264
(J),*712 OR *432
(J)
13405FLYWHEEL SUB-ASSY
*712 OR *432
*264
*712 OR *432,*264
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8,*712 OR *432
L=18,OD=8,*264
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
*264
*712 OR *432
13411CRANKSHAFT
*264
*712 OR *432
*712 OR *432
*264
13453GEAR, FLYWHEEL RING
*712 OR *432
*264
13471PULLEY, CRANKSHAFT
*264
*712 OR *432
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
*264
*712 OR *432
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
*264
*712 OR *432
18 parts on this diagram · 1 diagram in section
