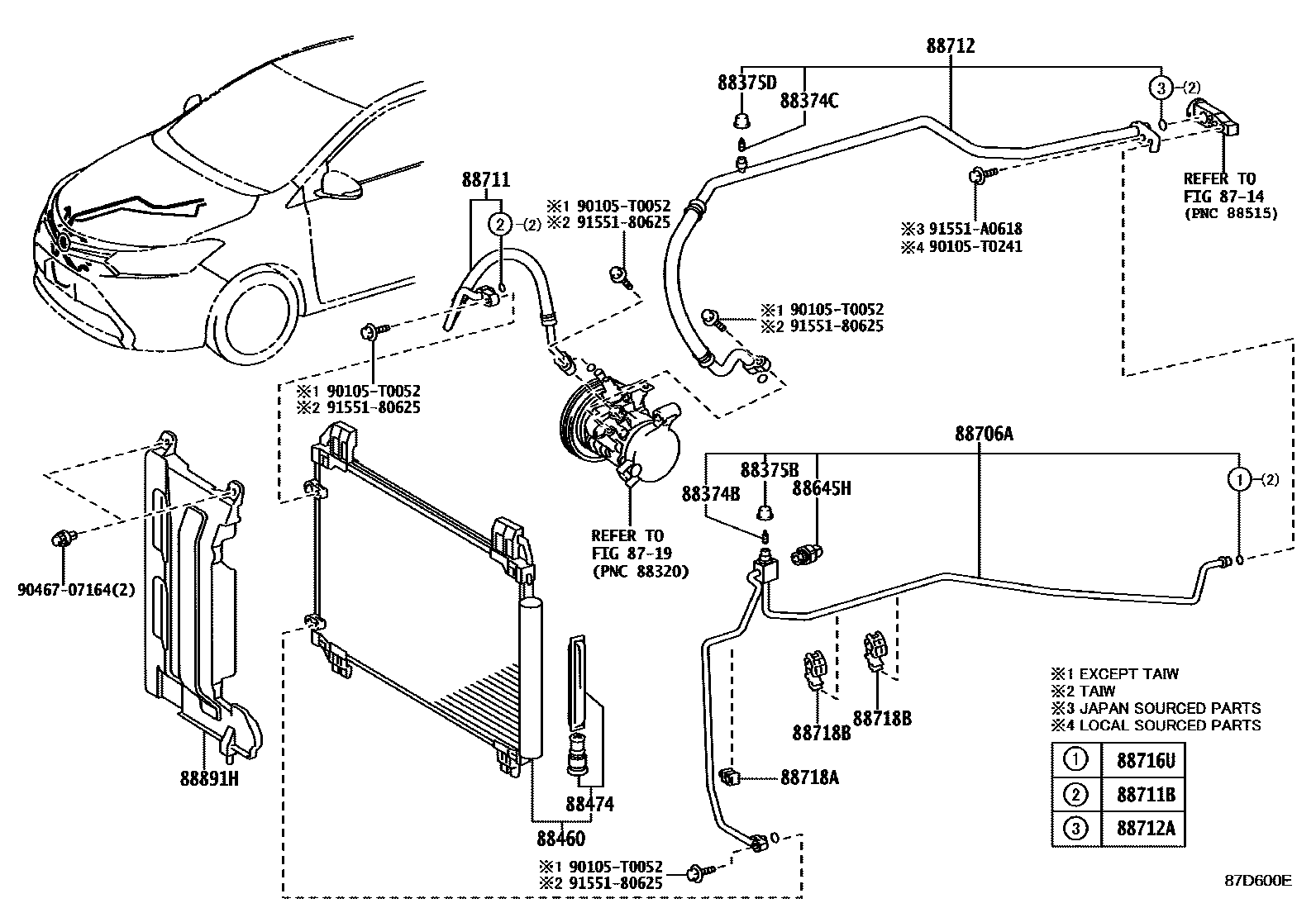

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1DEALER OPTION 0006 1MAKER OPTION 0009 1DEALER OPTION

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-02010iNSP151..H201807-201910

main88374-30010iNSP151..TH..R..A201708-202207

FRONT AIR CONDITIONER-AUTO COOLER(DOP)

main88374-30010iNSP151..TH..G..A201708-202207

FRONT AIR CONDITIONER-MANUAL COOLER(DOP)

main88374-30010iNSP151..MA201307-202108

main88374-33010iNCP15#..(GCC,GEN,IDN,TH,VN)..B201304-201608

main88374-33070iNSP151..MA201808-202011

88374CVALVE, SERVICE, NO.2

main88374-02010iNSP151..H201807-201910

main88374-30010iNSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP151..LHD..CVT..GEN..A;NSP151..RHD..(GEN,IND,MA);NSP150..5F..GCC..R..(A,C);NSP151..5F..(GEN,IDN,PH,VN)..(A,C,D,E);N201708-202207

FRONT AIR CONDITIONER-MANUAL COOLER(DOP)

main88374-30010iNSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP151..LHD..CVT..GEN..A;NSP151..RHD..(GEN,IND,MA);NSP150..5F..GCC..R..(A,C);NSP151..5F..(GEN,IDN,PH,VN)..(A,C,D,E);N201708-202207

FRONT AIR CONDITIONER-AUTO COOLER(DOP)

main88374-30010iNSP151..F201304-202108

88375BCAP, SERVICE VALVE, NO.1

main88375-02120iNSP151..H201807-201910

main88375-30280iNSP151..F201304-202108

main88375-30280iNSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP151..LHD..CVT..GEN..A;NSP151..RHD..(GEN,IND,MA);NSP150..5F..GCC..R..(A,C);NSP151..5F..(GEN,IDN,PH,VN)..(A,C,D,E);N201708-202207

FRONT AIR CONDITIONER-MANUAL COOLER(DOP)

main88375-30280iNSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP151..LHD..CVT..GEN..A;NSP151..RHD..(GEN,IND,MA);NSP150..5F..GCC..R..(A,C);NSP151..5F..(GEN,IDN,PH,VN)..(A,C,D,E);N201708-202207

FRONT AIR CONDITIONER-AUTO COOLER(DOP)

88375DCAP, SERVICE VALVE, NO.2

main88375-02130iNSP151..H201807-201910

main88375-30290iNSP151..TH..B201304-202108

main88375-30290iNSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP151..LHD..CVT..GEN..A;NSP151..RHD..(GEN,IND,MA);NSP150..5F..GCC..R..(A,C);NSP151..5F..(GEN,IDN,PH,VN)..(A,C,D,E);N201708-202207

FRONT AIR CONDITIONER-MANUAL COOLER(DOP)

main88375-30290iNSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP151..LHD..CVT..GEN..A;NSP151..RHD..(GEN,IND,MA);NSP150..5F..GCC..R..(A,C);NSP151..5F..(GEN,IDN,PH,VN)..(A,C,D,E);N201708-202207

FRONT AIR CONDITIONER-AUTO COOLER(DOP)

88460CONDENSER ASSY, COOLER

main88460-0D290iNSP151..TH..B¥32,400201304-201808

SINGAPORE SPEC

main88460-0D290iNSP151..TH..R..B¥32,400201304-201808

BRUNEI SPEC

main88460-0D290iNCP150..5F..TH..D..B;NCP150..4FC..TH..(G,R)..B¥32,400201304-201603

SINGAPORE & BRUNEI SPEC

main88460-0D290iNSP150,151..GEN¥32,400201304-201807

main88460-0D310iNCP15#..GCC..B201308-201603

main88460-0D320iNCP150..MA201310-201806

main88460-0D330iNSP150,151..PH201307-201806

main88460-0D340iNCP150..TAIW201404-201802

main88460-0D370iNCP150..IDN..C201312-201712

main88460-0D380iNCP15#..GCC..C201402-201609

main88460-0D390iNSP150,151..CVT..GCC..C201801-202207

main88460-0D450iNSP151..G201804-201908

main88460-0D470iNSP151..H201807-201910

main88460-0D530iNSP150,151..CVT..GCC..B201604-201712

main88460-0D540iNSP150,151..CVT..GCC..C201610-201712

main88460-0D560iNSP150,151..CVT..GCC..A201801-202207

main88460-0D570iNSP151..TH..(G,R)..B201808

SINGAPORE SPEC

main88460-0D570iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202207

main88460-0D570iNSP151..TH..B201808

BRUNEI SPEC

main88460-0D580iNSP151..F201803-202101

main88460-0D600iNSP150..5F..R..C;NSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main88460-0D630iNSP150,151..D201807-201910

main88460-0D640iNSP151..MA201806-202011

main88460-0D660iNSP150,151..I202003-202406

88474DRYER, COOLER

main88474-12010iNSP151..MA¥0201708-202207

main88474-12010iNSP151..TH..B¥0201808

BRUNEI SPEC

main88474-12010iNSP151..TH..B¥0201808

SINGAPORE SPEC

main88474-17010iNCP150..B;NCP151,NSP150..B,C;NCP150,NSP151..(GCC,IDN)..C;NSP151..(GCC,GEN,PH,TAIW,TH,VN)..B201304-201808

BRUNEI SPEC

main88474-17010iNCP150..B;NCP151,NSP150..B,C;NCP150,NSP151..(GCC,IDN)..C;NSP151..(GCC,GEN,PH,TAIW,TH,VN)..B201304-201808

SINGAPORE SPEC

main88474-17010iNSP151..MA201304-201806

88645HSWITCH, PRESSURE NO.1

main88645-60030iNCP150..TAIW201304-201609

88706ATUBE SUB-ASSY, LIQUID, A

main88706-0D500iNCP15#..RHD..(GEN,IDN,TH)..B201304-201603

main88706-0D510iNCP15#..LHD..(GEN,VN)201308-201608

main88706-0D530iNCP15#..GCC..B201308-201603

main88706-0D540iNCP150..MA201310-201608

main88706-0D550iNCP15#..PH201307-201606

main88706-0D560iNCP150..TAIW201404-201604

main88706-0D590iNCP150..IDN..C201312-201609

main88706-0D600iNCP15#..GCC..C201402-201609

main88706-0D740iNSP15#..RHD..(GEN,TH)..B201604-201707

sub88706-0D741

main88706-0D741iNSP150,151..RHD..(GEN,TH)..B201708-201808

main88706-0D750iNSP150..5F..GCC..B;NSP150,151..LHD..(GEN,VN)..B201604-201807

main88706-0D760iNSP151..IDN201610-201712

main88706-0D770iNSP150..5F..C201610-201712

main88706-0D780iNSP151..TAIW201605-201802

main88706-0D790iNSP150,151..PH201607-201806

main88706-0D800iNSP151..MA201608-201808

main88706-0D850iNSP151..G201804-201908

main88706-0D880iNSP151..H201807-201910

main88706-0DA00iNSP150,151..CVT..GCC..B201604-201712

main88706-0DA10iNSP150,151..CVT..GCC..C201610-201712

main88706-0DA30iNSP152201708-202207

main88706-0DA80iNSP150,151..CVT..GCC..A201801-202207

main88706-0DA90iNSP150..5F..GCC..R..A;NSP150,151..LHD..(GEN,VN)..(A,E)201710-202207

main88706-0DB00iNSP151..TH..B201710-202207

main88706-0DB10iNSP151..F201803-202101

main88706-0DB20iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main88706-0DB30iNSP150,151..CVT..GCC..C201801-202207

main88706-0DB70iNSP150..5F..D..C201801-202207

main88706-0DC00iNSP150,151..D201807-201910

main88706-0DC10iNSP151..MA201808-202011

main88706-0DE00iNSP150,151..I202003-202406

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0D400iNCP15#..(GEN,IDN,TH,VN)..B201304-201608

main88711-0D420iNCP15#..GCC..B201308-201603

main88711-0D430iNCP150..MA201310-201608

main88711-0D440iNCP15#..PH201307-201606

main88711-0D450iNCP150..TAIW201404-201604

main88711-0D480iNCP150..IDN..C201312-201609

sub88711-0D400

main88711-0D490iNCP15#..GCC..C201402-201609

main88711-0D580iNSP15#..RHD..(GEN,TH)..B201604-201801

sub88711-0D581

main88711-0D581iNSP150,151..RHD..(GEN,TH)..B201708-201808

main88711-0D590iNSP151..IDN201610-201712

main88711-0D600iNSP151..TAIW201605-201802

main88711-0D610iNSP150,151..PH201607-201806

main88711-0D620iNSP151..MA201608-201808

main88711-0D640iNSP150..5F..GCC..B201604-201712

main88711-0D650iNSP150..5F..C201610-201712

main88711-0D680iNSP151..G201804-201908

main88711-0D700iNSP151..H201807-201910

main88711-0D740iNSP150,151..CVT..GCC..B201604-201712

main88711-0D750iNSP150,151..CVT..GCC..C201610-201712

main88711-0D770iNSP152201708-202207

main88711-0D780iNSP150,151..CVT..GCC..A201801-202207

main88711-0D790iNSP151..TH..B201710-202207

main88711-0D800iNSP151..F201803-202101

main88711-0D810iNSP150,151..CVT..GCC..C201801-202207

main88711-0D820iNSP151..CVT..D..C201801-202207

main88711-0D850iNSP150..5F..GCC..R..A201801-202207

main88711-0D860iNSP150..5F..D..C201801-202207

main88711-0D870iNSP150,151..D201807-201910

main88711-0D880iNSP151..MA201808-202011

main88711-0DA20iNSP150,151..I202003-202406

88711BRING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

main90068-14044iNSP150,151..RHD..(GEN,TH)..B¥190201708-201808

main90099-14120iNSP150,151..VN¥0201304-202207

main90099-14120iNSP151..MA¥0201807-202011

ID=10.8,OD=15.6

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-0D490iNCP15#..RHD..(GEN,TH)..B201304-201603

main88712-0D500iNCP151..LHD..GEN..D201308-201603

LATIN AMERICA SPEC

main88712-0D500iNCP15#..VN201308-201608

main88712-0D520iNCP15#..GCC..B201308-201603

main88712-0D530iNCP150..MA201310-201608

main88712-0D540iNCP15#..PH201307-201606

main88712-0D550iNCP150..TAIW201404-201604

main88712-0D710iNCP150..IDN..C201312-201609

main88712-0D720iNCP15#..GCC..C201402-201609

main88712-0D760iNSP151..TH..R..A201708-202207

FRONT AIR CONDITIONER-MANUAL COOLER(DOP)

main88712-0D760iNSP150,151..VN201604-202108

main88712-0D760iNSP150..CVT..GEN..G..A;NSP151..(GEN,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E)201708-202207

FRONT AIR CONDITIONER-AUTO COOLER(DOP)

main88712-0D770iNSP151..IDN201610-201911

main88712-0D780iNSP151..F201605-202101

main88712-0D790iNSP150,151..PH201607-201910

main88712-0D800iNSP151..MA201608-202011

main88712-0D810iNSP151..5F..D..C;NSP151..IDN..(G,R)201911-202207

main88712-0D820iNSP150,151..GCC..B201604-202207

main88712-0D830iNSP150,151..GCC..C201610-201911

main88712-0D840iNSP151..G201804-201908

main88712-0D860iNSP151..H201807-201910

main88712-0D890iNSP150..5F..D..C201911-202207

main88712-0DA30iNSP150,151..I202003-202406

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main90099-14121iNCP15#..MA,VN201304-202207

88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

main90068-14042iNSP150,151..RHD..(GEN,TH)..B201708-201808

main90099-14119iNSP150,151..CVT..GCC..C201304-202207

main90099-14119iNSP150,151..D;NSP151..MA,TAIW201803-202101

ID=6.7,OD=10.3

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-0D210iNSP151..TH..B201304-202108

main88718-0D210iNSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,GEN,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E)201708-202207

FRONT AIR CONDITIONER-MANUAL COOLER(DOP)

main88718-0D210iNSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,GEN,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E)201708-202207

FRONT AIR CONDITIONER-AUTO COOLER(DOP)

main88718-0D240iNCP150..TAIW201404-202101

main88718-0D290iNSP151..MA201310-202011

main88718-0D310iNSP150,151..D201307-201910

main88718-0D410iNSP151..G201804-201908

main88718-0D460iNSP151..H201807-201910

main88718-0D500iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main88718-0DB10iNSP150,151..I202003-202406

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-0D540iNCP15#..(GEN,TH)..B201304-201608

main88718-0D550iNSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,GEN,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E)201708-202207

FRONT AIR CONDITIONER-AUTO COOLER(DOP)

main88718-0D550iNSP150..5F..G..A;NSP150..5F..GCC..D..A201308-202108

main88718-0D550iNCP15#..GCC..B201308-201603

LATIN AMERICA SPEC&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER(DOP))

main88718-0D550iNSP151..TH..R..A201708-202207

FRONT AIR CONDITIONER-MANUAL COOLER(DOP)

main88718-0D560iNCP150..MA201310-201608

main88718-0D580iNCP15#..PH201307-201606

main88718-0D600iNCP150..TAIW201404-201604

main88718-0D640iNCP150..IDN..C201312-201609

main88718-0D650iNSP150,151..(GCC,IDN)..C201402-202207

main88718-0D790iNSP151..F201605-202101

main88718-0D800iNSP150,151..PH201607-201910

main88718-0D810iNSP151..MA201608-202011

main88718-0DA30iNSP151..G201804-201908

main88718-0DA40iNSP151..H201807-201910

main88718-0DB20iNSP150,151..I202003-202406

88891HCOVER, COOLER, NO.1

main88891-0D220iNCP15#..(GEN,IDN,TH,VN)..B201304-201408

SINGAPORE & BRUNEI SPEC

sub88891-0D290

main88891-0D220iNCP15#..(GEN,IDN,TH,VN)..B201304-201408

BRUNEI SPEC

sub88891-0D290

main88891-0D220iNCP15#..(GEN,IDN,TH,VN)..B201304-201408

SINGAPORE SPEC

sub88891-0D290

main88891-0D240iNCP150..MA201310-201608

main88891-0D250iNCP15#..PH201307-201606

main88891-0D260iNCP150..TAIW201404-201604

main88891-0D270iNCP150..IDN..C201312-201407

sub88891-0D310

main88891-0D290iNCP150..5F..TH..D..B;NCP150..4FC..TH..R..B201408-201603

SINGAPORE & BRUNEI SPEC

main88891-0D290iNCP15#..(GEN,TH)..B201408-201603

SINGAPORE SPEC

main88891-0D290iNCP15#..(GEN,TH)..B201408-201603

BRUNEI SPEC

main88891-0D290iNCP150..IDN..B201408-202207

main88891-0D310iNCP150..IDN..C201408-201609

main88891-0D320iNSP150,151..VN201604-202207

main88891-0D320iNSP150,151..GEN201604-201709

LATIN AMERICA SPEC&FRONT AIR CONDITIONER-WITH(MANUAL AIR CONDITIONER(DOP))

main88891-0D330iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main88891-0D330iNSP151..TH..G..C201610-201707

FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main88891-0D330iNSP150..5F..C;NSP151..IDN..G;NSP151..RHD..(D,R)..C201610-201712

FRONT AIR CONDITIONER-WITH(MANUAL COOLER(DOP))

main88891-0D340iNSP151..TAIW201605-202101

main88891-0D350iNSP150,151..PH201607-201910

main88891-0D360iNSP151..MA201608-202011

main88891-0D430iNSP151..G201804-201908

main88891-0D440iNSP151..H201807-201910

main88891-0D460iNSP150,151..CVT..GCC..A201604-202207

main88891-0D470iNSP150,151..CVT..GCC..C201610-202207

main88891-0D480iNSP150,151..I202003-202406

90105T0052

main90105-T0052

90105T0241

main90105-T0241¥90

9046707164

main90467-07164¥120

9155180625

main91551-80625¥60

91551A0618

main91551-A0618¥60

23 parts on this diagram · 6 diagrams in section
