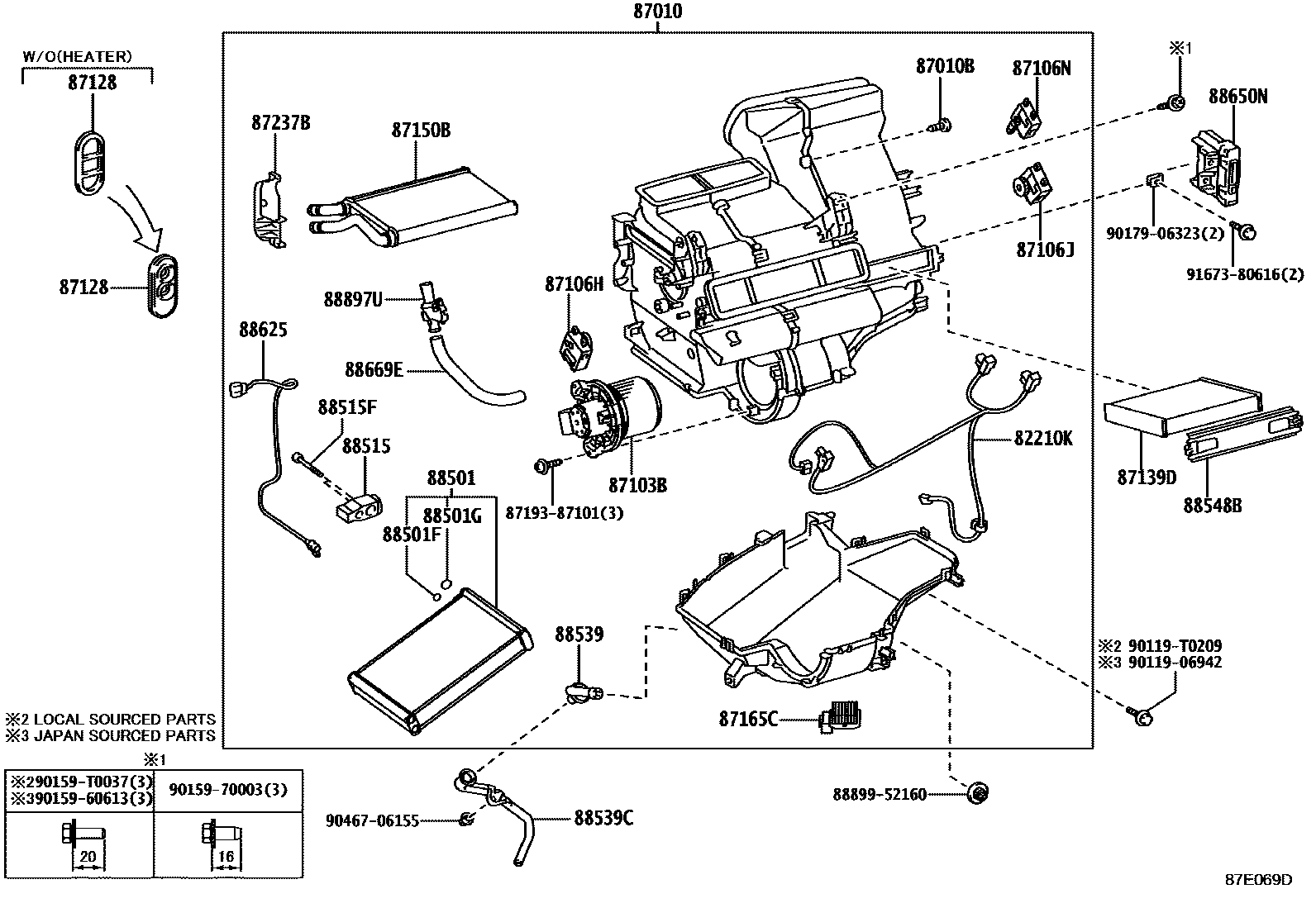

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0003 1MANUAL AIR CONDITIONER 0005 1BOOST VENTILATOR 0007 1AUTO AIR CONDITIONER 0011 1AUTO AIR CONDITIONER 0012 1MANUAL AIR CONDITIONER 0016 1MANUAL AIR CONDITIONER 0017 1AUTO BOOST VENTILATOR 0018 1MANUAL BOOST VENTILATOR 0019 1HEATER ONLY 0020 1AUTO BOOST VENTILATOR 0023 1MANUAL AIR CONDITIONER 0026 1MANUAL BOOST VENTILATOR 0029 1AUTO AIR CONDITIONER 0033 1MANUAL AIR CONDITIONER 0037 1AUTO COOLER OR AUTO *BV 0041 1MANUAL COOLER OR MANUAL *BV 0045 1ROOF FAN

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0D010iNSP152;NSP151..MA;NSP151..(IDN,TH)..G..(A,C)201708-202207

main82212-0D020supersedes 82212-0D020iNCP150..TAIW..V201308-201604

main82212-0D090iNSP151..(G,R,V)..(G,I)201710-202406

main82212-0D100iNSP151..D201807-201910

main82212-0D110iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

87010UNIT ASSY, AIR CONDITIONER

main87010-0D770iNCP151..RHD201308-201603

main87010-0D780iNCP15#..5F..VN201308-201608

main87010-0D790iNCP150..IDN..(D,R)..B201304-201506

main87010-0D810iNCP150..VN..G201308-201608

main87010-0D820iNCP150..TH..(G,V)..B201304-201603

main87010-0D830iNCP15#..GCC..B201308-201603

main87010-0D870iNCP150..MA201310-201608

main87010-0D880iNCP15#..PH201307-201606

main87010-0DA10iNCP150..TAIW..(D,R)201404-201604

main87010-0DA20iNCP150..TAIW..V201404-201604

main87010-0DB70iNCP150..RHD..(D,R)..C201312-201609

main87010-0DB80iNCP150..RHD..G..C201312-201609

main87010-0DB90iNCP15#..GCC..C201402-201609

main87010-0DD50iNSP150..I202003-202406

main87010-0DD60iNSP151..I202003-202406

main87010-0DE50iNSP151..TH..(D,R)..B201604

main87010-0DE60iNSP151..TH..(G,V)..B201604

main87010-0DE70iNSP150..RHD201604-201709

main87010-0DE80iNSP150,151..VN..(D,R)201604-201807

main87010-0DE90iNSP150..LHD..GEN..G201604-201709

main87010-0DF00iNSP150,151..GCC..B201604-201712

main87010-0DF30iNSP151..MA201608-201812

main87010-0DF40iNSP151..TAIW..(D,R)201605-201802

main87010-0DF50iNSP151..TAIW..V201605-201802

main87010-0DF60iNSP150,151..PH201607-201806

main87010-0DF70iNSP151..RHD..(D,R)..C201610-201712

main87010-0DF80iNSP151..TH..G..C201610-201707

main87010-0DF90iNSP150,151..GCC..C201610-201712

main87010-0DG30iNSP151..(G,R,V)..G201804-201908

main87010-0DG40iNSP151..(BZ,GEN)..(G,V)..H201807-201903

XL-PLUS PACKAGE

main87010-0DG41iNSP151..(BZ,GEN)..(G,V)..H201904-201910

XL-PLUS PACKAGE

main87010-0DG50iNSP151..D..G201804-201908

main87010-0DG60iNSP151..(BZ,GEN)..(D,R)..H201807-201903

main87010-0DG61iNSP151..(BZ,GEN)..(D,R)..H201904-201910

main87010-0DG70iNSP151..D201807-201910

main87010-0DK50iNSP151..MA201901-202011

main87010-0DK60iNSP151..5F..G..A;NSP150,151..LHD..GEN..(D,R)..A201902-202207

main87010-0DK70iNSP150,151..LHD..CVT..GEN..G..A201902-202207

main87010-0DM10iNSP150..RHD201710-201811

main87010-0DM11iNSP150..RHD..CVT..A201811-202207

main87010-0DM20iNSP151..5F..G..A;NSP150,151..LHD..GEN..(D,R)..A201710-201902

main87010-0DM30iNSP151..G..E201710-201912

main87010-0DM40iNSP150..5F..GCC..D..A201801-202108

main87010-0DM60iNSP151..TH..R..A201708-202207

main87010-0DM70iNSP151..TH..G..A201708-202207

main87010-0DN00iNSP151..RHD..GEN201710-201811

main87010-0DN01iNSP151..RHD..GEN201811-202207

main87010-0DN80iNSP151..(D,R)..F201803-202101

main87010-0DN90iNSP151..V..F201803-202101

main87010-0DP00iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main87010-0DP20iNSP151..IDN..R;NSP151..5F..D..C201801-202207

main87010-0DP30iNSP151..IDN..G201801-202207

main87010-0DP50iNSP150..D201807-201910

main87010-0DQ00iNSP151..AGT..G201807-201903

main87010-0DQ01iNSP151..AGT..G201904-201910

main87010-0DQ10iNSP151..AGT..R201807-201903

main87010-0DQ11iNSP151..AGT..R201904-201910

main87010-0D840iNCP15#..GCC..G..B201308-201603

G-HIGH PACKAGE

main87010-0DC00iNCP15#..GCC..G..C201402-201609

G-HIGH PACKAGE

main87010-0DF10iNSP150,151..GCC..G..B201604-201712

G-HIGH PACKAGE

main87010-0DG00iNSP150,151..GCC..G..C201610-201712

G-HIGH PACKAGE

main87010-0DM50iNSP150,151..GCC..G..A201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main87010-0DM90supersedes 87010-0DM80iNSP152201708-201910

LO PACKAGE(*OTM(*ERCDM))

main87010-0DP10iNSP150,151..GCC..G..C201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

87010BSCREW(FOR AIR CONDITIONER UNIT)

main88718-0A020×15iNCP15#..GCC..G..B201308-201603

G-HIGH PACKAGE

main90068-00042×19iNSP151..5F..G..A;NSP150,151..LHD..GEN..(D,R)..A201902-202207

main90094-90426×19iNSP151..(D,R)..H201904-201910

XL-PLUS PACKAGE

main90099-00317iNSP151..F201803-202101

main90099-00968×24iNSP150,151..VN..(D,R)201604-201803

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D280iNCP150..IDN..B201304-201506

main87103-0D290iNCP15#..VN201308-201608

main87103-0D310iNSP151..MA201310-201812

main87103-0D320iNCP15#..PH201307-201606

main87103-0D330iNSP151..F201803-202101

main87103-0D360iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main87103-0D370iNCP15#..GCC..C201402-201609

main87103-0D420iNSP150,151..I202003-202406

main87103-0D450iNSP151..H201807-201910

main87103-0D460iNSP151..G201804-201908

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-0D070iNCP15#..GCC..G..B201308-201603

G-HIGH PACKAGE

main87106-0D100iNCP150..TAIW..V201404-201604

main87106-0D310iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main87106-0D360iNSP151..RHD..GEN201710-202207

main87106-0D500iNSP151..(G,R,V)..G201804-201908

main87106-0D570iNSP151..I202003-202406

main87106-0D190iNSP150,151..GCC..G..C201402-201712

G-HIGH PACKAGE

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-0D070iNCP150..IDN..G..B201304-201506

main87106-0D100iNSP151..TAIW..V201404-201802

main87106-0D110iNSP151..D201807-201910

main87106-0D190iNSP151..IDN..G201312-201712

main87106-0D310iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main87106-0D330iNSP151..(G,R,V)..G201804-201908

main87106-0D530iNSP151..MA201901-202011

main87106-0D560iNSP151..I202003-202406

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-0D150iNSP152;NSP151..RHD..G..A201708-202207

main87106-0D160iNCP150..VN..G201308-201608

main87106-0D180iNSP151..V..F201803-202101

main87106-0D200iNCP150..RHD..G..C201312-201609

main87106-0D300iNSP151..D201807-201910

main87106-0D320iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main87106-0D340iNSP151..(G,R,V)..G201804-201908

main87106-0D370iNSP151..TH..R..A;NSP150..RHD..CVT..A201708-202207

ECO PACKAGE

main87106-0D380iNSP150..5F..GCC..D..A201710-202108

main87106-0D440iNSP151..(D,R)..F201803-202101

main87106-0D450iNSP151..IDN..R;NSP151..5F..D..C201801-202207

main87106-0D460iNSP150..5F..D..C201801-202108

main87106-0D470iNSP150..D201807-201910

main87106-0D510iNSP151..D..G201804-201908

main87106-0D520iNSP151..(D,R)..H201807-201910

main87106-0D540iNSP151..MA201901-202011

main87106-0D580iNSP151..I202003-202406

main87106-0D590iNSP150..I202003-202406

main87106-0D210iNSP150,151..GCC..G..C201402-201712

G-HIGH PACKAGE

87128GROMMET, HEATER

main87128-0D090iNCP15#..(GCC,GEN)..B201308-201603

main87128-0D091iNSP150,151..VN201702-201807

main87128-0D100iNSP151,152..TH..A201708-202207

main87128-0D110iNSP151..MA201901-202011

main87128-0D120iNCP15#..PH201307-201606

main87128-0D130iNCP150..TAIW201404-201604

main87128-0D131iNSP151..TAIW201702-201802

main87128-0D150iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main87128-0D160iNSP15#..GCC..C201402-201701

main87128-0D161iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main87128-0D170iNSP150,151..I202003-202406

main87128-0D210iNSP151..G201804-201908

main87128-0D220iNSP151..H201807-201910

87139DELEMENT, AIR REFINER

main87139-02130iNSP150,151..G,I201804-202406

POLLEN FILTER

main87139-02150iNSP151..H201807-201910

DUST FILTER

main87139-06070iNCP150..TAIW201404-201604

DUST FILTER

main87139-06080iNSP150..GCC;NSP151..GCC..G;NSP151..GCC..R..B;NSP151..(GCC,TH)..(D,R)..C201304-201712

DUST FILTER

main87139-0D050iNSP151..MA201310-201812

DUST FILTER

main87139-0D130iNSP150,151..PH201307-201806

DUST FILTER

main87139-0D170iNSP151..CVT..D..C201801-202108

DUST FILTER

main87139-0D200iNSP150..5F..D..C201904-202108

main87139-50100iNSP150,151..VN201304-201807

*DPF

87150BRADIATOR ASSY, HEATER

main87150-0D140iNCP15#..(GCC,GEN)..B201308-201603

main87150-0D160iNCP150..TAIW201404-201604

main87150-0D190iNSP150,151..GCC..C201402-201712

main87150-0D210iNSP151..(BZ,GEN)..H201807-201910

main87150-0D220iNSP151..G201804-201908

main87150-0D240iNSP151..AGT201807-201910

main87150-0D250iNSP150,151..I202003-202406

87165CCONTROL, BLOWER MOTOR

main87165-0D010iNCP150..VN..G201304-201608

main87165-0D040iNCP150..TAIW..V201404-201604

main87165-0D060iNCP150..RHD..G..C201312-201609

main87165-0D090iNSP151..D201807-201903

main87165-0D100iNSP151..(G,V)..H201807-201904

XL-PLUS PACKAGE

main87165-0D110iNSP151..(G,R,V)..G201804-201903

main87165-0D120iNSP151..MA201901-201903

main87165-0D140iNSP150,151..GCC..G..A201905-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main87165-0D150iNSP150,151..GCC..G..C201904-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main87165-0D160iNSP151..V..F201904-202101

main87165-0D170iNSP151..D201904-201910

main87165-0D180iNSP151..MA201904-202011

main87165-0D190iNSP151..(G,R,V)..G201904-201908

main87165-0D200iNSP151..(G,V)..H201904-201910

XL-PLUS PACKAGE

main87165-0D210iNSP151..I202003-202406

87237BCOVER, HEATER PIPING

main87237-0D040iNSP150..RHD201308-201709

main87237-0D050iNSP150,151..LHD..GEN201308-201709

main87237-0D070iNSP151..TAIW201404-201802

main87237-0D100iNSP150..5F..D..C201801-202108

main87237-0D120iNSP151..H201807-201910

main87237-0D130iNSP151..G201804-201908

main87237-0D170iNSP150,151..I202003-202406

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D240iNCP15#..VN201304-201608

main88501-0D250iNCP15#..GCC..B201308-201603

main88501-0D260iNCP150..MA201310-201608

main88501-0D270iNCP15#..PH201307-201606

main88501-0D280iNCP150..TAIW201404-201604

main88501-0D320iNCP150..RHD..C201312-201609

main88501-0D330iNCP15#..GCC..C201402-201609

main88501-0D370iNSP150,151..VN201604-201807

main88501-0D380iNSP150..5F..GCC..D..A201801-202108

main88501-0D400iNSP151..TAIW201605-201802

main88501-0D430iNSP150..5F..D..C201801-202108

main88501-0D460iNSP151..H201807-201910

main88501-0D470iNSP151..G201804-201908

main88501-0D510iNSP151..TH..G..A201708-202207

main88501-0D520iNSP151..CVT..D..C201801-202108

main88501-0D530iNSP151..MA201901-202011

main88501-0D540iNSP150,151..PH201607-201806

main88501-0D570iNSP152201708-202207

main88501-0D580iNSP150,151..I202003-202406

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90068-14044iNSP150..5F..GCC..D..A202002-202108

ID=10.2,OD=15.0

main90099-14120iNSP150,151..(TH,VN)..B201304-201803

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14043iNSP150..5F..GCC..D..A202002-202108

ID=13.4,OD=18.2

main90099-14121iNSP150,151..(TH,VN)..B201304-201803

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-0D170iNCP150..TAIW201404-201604

sub88515-02700

main88515-0D240iNCP15#..(GCC,GEN,TH)..B201304-201603

main88515-0D250iNCP150..MA201310-201608

main88515-0D260iNCP15#..PH201307-201606

main88515-0D300iNCP15#..C201312-201609

main88515-0D370iNSP150,151..GCC..C201801-201910

main88515-0D380iNSP150,151..D201807-201910

sub88515-0D600

main88515-0D390iNSP151..F201803-201910

main88515-0D400iNSP151..H201807-201910

sub88515-0D630

main88515-0D410iNSP151..G201804-201908

main88515-0D440iNSP151..MA201809-201812

main88515-0D490iNSP151..TH..B201604-201803

main88515-0D500iNSP151..TH..G..C201610-201707

main88515-0D510iNSP151..MA201608-201809

main88515-0D520iNSP150,151..PH201607-201806

main88515-0D570iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..(GEN,VN)..(D,R);NSP150..CVT..GCC..(D,R)..A201911-202207

main88515-0D580iNSP150..5F..D..C;NSP151..CVT..D..C201911-202108

main88515-0D590iNSP151..F201911-202101

main88515-0D610iNSP151..MA201911-202011

main88515-0D640iNSP150,151..I202003-202406

main88515-0K100iNSP150,151..(GCC,GEN,VN)..(A,E)201710-201910

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04057×2iNSP150,151..(GCC,GEN,TH,VN)..B201604

main90099-04630×2iNSP150,151..(GCC,TH)..C;NCP15#..GCC,GEN,IDN,MA,PH,TH,VN;NSP151..(IDN,MA,PH,TAIW)..(B,C);NCP150,NSP150..(PH,TAIW)..(D,R)..B201304-201812

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D290iNSP150..RHD201304-201709

main88539-0D300iNSP151..LHD..(A,E);NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(A,E)201710-202207

main88539-0D310iNCP150..MA201310-201608

main88539-0D320iNSP150,151..D201807-201910

main88539-0D330iNSP151..TAIW201404-201802

main88539-0D420iNSP151..TH..G..C201312-201707

main88539-0D430iNSP150,151..GCC..C201402-201712

main88539-0D560iNSP151..H201807-201910

main88539-0D570iNSP151..G201804-201908

main88539-0D580iNSP150,151..I202003-202406

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-0D160iNSP151..H201807-201910

main88539-0D340iNCP15#..RHD..(GEN,TH)..B201304-201603

main88539-0D350iNSP150,151..GCC..B201308-201712

main88539-0D360iNSP151..MA201901-202011

main88539-0D370iNSP150,151..D201807-201910

main88539-0D380iNSP151..TAIW201404-201802

main88539-0D440iNSP151..IDN..G;NSP151..RHD..(D,R)..C201312-201712

main88539-0D450iNSP150..5F..D..C201801-202108

main88539-0D490iNSP150,151..I202003-202406

main88539-0D540iNSP151..G201804-201908

88548BCASE, AIR FILTER

main88548-0D160iNSP151..TH..B201304

main88548-0D180iNSP151..MA201310-201812

main88548-0D190iNSP150,151..PH201307-201806

main88548-0D200iNSP151..TAIW201404-201802

main88548-0D230iNSP151..TH..G..C201312-201707

main88548-0D250iNSP151..G201804-201908

main88548-0D260iNSP151..H201807-201910

main88548-0D270iNSP150,151..I202003-202406

88625THERMISTOR, COOLER, NO.1

main88620-0D050iNSP151..TH..(D,R)..B201304

main88620-0D060iNCP150..TH..(G,V)..B201304-201603

main88620-0D070iNSP151..MA201310-201812

main88620-0D080iNSP150,151..PH201307-201806

main88620-0D090iNCP150..TAIW201404-201604

main88620-0D120iNSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C201312-201712

main88620-0D130iNCP150..RHD..G..C201312-201609

main88620-0D140iNSP151..MA201901-202011

main88620-0D160iNSP150..I202003-202406

main88620-0D170iNSP151..(D,R)..H201807-201910

main88620-0D180iNSP151..D..G201804-201908

main88620-0D190iNSP151..TH..(G,V)..B201604

main88620-0D200iNSP150..RHD;NSP150..LHD..GEN..G201604-201709

main88620-0D260iNSP151..IDN..G201801-202207

main88620-0D270iNSP151..V..F201803-202101

main88620-0D350iNSP151..(G,R,V)..G201804-201908

main88620-0D360iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main88620-0D370iNSP151..D201807-201910

main88620-0D380iNSP151..I202003-202406

main88620-0D280iNSP150,151..GCC..G..C201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0D430iNCP150..IDN..(D,R)..B201304-201506

main88650-0D450iNCP15#..GCC..C201308-201609

main88650-0D460iNCP150..TH..G..B201304-201603

SINGAPORE & BRUNEI SPEC&FRONT AIR CONDITIONER-WITH(AUTO COOLER(DOP))

main88650-0D480iNCP151..LHD..GEN..G201308-201603

main88650-0D500iNCP150..TAIW..(D,R)201404-201604

main88650-0D510iNCP150..TAIW..V201404-201604

main88650-0D650iNSP151..RHD..(D,R)..C201604-201712

main88650-0D660supersedes 88650-0D660iNSP151..IDN..G201604-201712

main88650-0D670iNSP150,151..VN..(D,R)201604-201807

main88650-0D680iNSP150..LHD..GEN..G201604-201709

main88650-0D770iNSP151..CVT..D..C201708-202108

main88650-0D780iNSP151..(D,R)..F201710-202101

main88650-0D790iNSP151..D201807-201910

main88650-0D800iNSP151..V..F201710-202101

main88650-0D810iNSP151..RHD..GEN201710-202207

main88650-0D820iNSP151..MA;NSP152..HTWC;NSP151..(IDN,TH)..G..(A,C)201708-202207

main88650-0D830iNSP151..D..G201804-201908

main88650-0D850iNSP151..(G,R,V)..G201804-201908

main88650-0D870iNSP151..(D,R)..H201807-201910

main88650-0D880iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main88650-0DB20iNSP150..CVT..GCC..D;NSP150,151..GCC..(G,R)202001-202207

main88650-0D490iNCP15#..GCC..G..B201308-201603

G-HIGH PACKAGE

main88650-0D690iNSP150,151..GCC..G201604-201712

G-HIGH PACKAGE

main88650-0D890iNSP150,151..GCC..G201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main88650-0DB30supersedes 88650-0DB10iNSP152201911-202207

ECO PACKAGE

88669EHOSE, AIR

main87233-0D010iNCP150..RHD..G..C201312-201609

main87233-0D070iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main87233-0D080iNSP151..(G,R,V)..G201804-201908

main87233-0D090iNSP151..D201807-201910

main87233-0D100iNSP152;NSP150..LHD..GEN..G..A;NSP151..CVT..(GEN,TH,VN)..G..(A,E)201708-202207

main87233-0D170iNSP151..V..F201803-202101

main87233-0D180iNSP150,151..GCC..G..C201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main87233-0D200iNSP151..MA201901-202011

main87233-0D210iNSP151..I202003-202406

main88669-0D040iNCP150..IDN..G..B201304-201506

main88669-0D070iNCP150..TAIW..V201404-201604

88897UPIPE, ASPIRATOR

main88897-0D010iNSP151..VN..G201304-201807

main88897-0D030iNSP151..V..F201803-202101

main88897-0D040iNCP150..RHD..G..C201312-201609

main88897-0D080iNSP151..(G,V)..H201807-201910

XL-PLUS PACKAGE

main88897-0D090iNSP151..(G,R,V)..G201804-201908

main88897-0D100iNSP151..D201807-201910

main88897-0D110iNSP151..MA201901-202011

main88897-0D120iNSP151..I202003-202406

8719387101

main87193-87101

8889952160COVER, EVAPORATOR

main88899-52160

9011906942

main90119-06942

90119T0209

main90119-T0209

9015960613

main90159-60613

9015970003

main90159-70003

90159T0037

main90159-T0037

9017906323

main90179-06323

9046706155

main90467-06155

9167380616

main91673-80616

34 parts on this diagram · 18 diagrams in section
