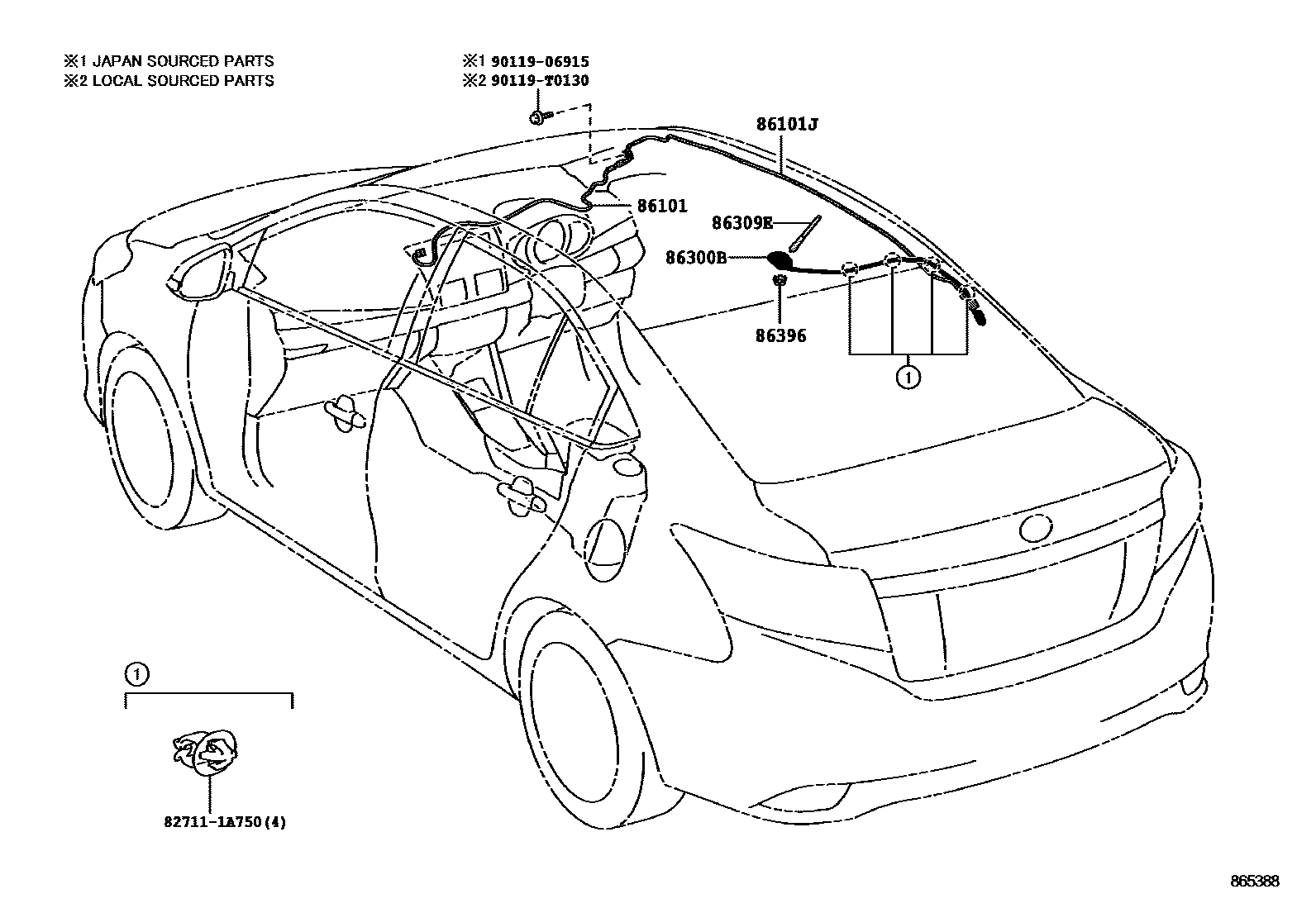

ANTENNA

0001 1 0005 1

86101CORD SUB-ASSY, ANTENNA

main86101-0D510iNSP150..RHD201304-201709

main86101-0D520iNCP15#..LHD..(GCC,GEN)..B201308-201712

main86101-0D570iNSP151..MA201310-201812

main86101-0D580iNSP150,151..PH201307-201807

main86101-0D600iNSP151..H201807-201910

main86101-0DA30iNSP151..LHD..A;NSP150..LHD..GEN..D;NSP150..LHD..(G,R)..A;NSP150..CVT..GCC..D..A201710-202207

main86101-0DA40iNSP150..5F..D..C201801-202207

main86101-0DA60iNSP150..5F..G..A201708-202207

main86101-0DA70iNSP150,151..IND,MA,PKN201801-202406

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D490iNSP151..TH..B201304-201712

main86101-0D550iNCP15#..C201307-201812

main86101-0D590iNSP151..H201807-201910

main86101-0D870iNSP151,152..A;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

main86101-0D890iNSP151..D,E;NSP150..D,E,I;NSP151..IND,MA,PKN201801-202406

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0D270iNSP150,151..GCC..B201304-201712

main86300-0D300iNCP15#..MA,VN201307-201812

main86300-0D380iNSP150..5F..G..A201708-202207

main86300-0D400iNSP151..5F..D..C201801-202406

main86300-0D470iNSP150,151..(GCC,TH)..A201708-202009

SPORT PACKAGE

main86300-0D471iNSP152202009-202207

ASEAN GENERAL SPEC

main86300-0D471iNSP152202009-202207

SPORT PACKAGE

main86300-0D471iNSP150..5F..GCC..R..A;NSP150,151..CVT..(GCC,TH)..A202009-202207

LAOS SPEC

main86300-0D471iNSP150..5F..GCC..D..A202009-202108

main86300-0D480iNSP151..D..G;NSP150,151..(G,R)..(D,E);NSP151..(IND,MA)..(G,R,V)201801-202011

main86300-0D480iNSP150..5F..D..C202103-202207

TYPE A:REFER ILLUST.

main86300-0D481iNSP150..5F..D..C202103-202207

TYPE B:REFER ILLUST.

main86300-0D481iNSP150..C;NSP151..(G,R)..C202009-202103

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0D140iNCP150..IDN..B201304-202207

main86309-0D180iNCP15#..PH201307-201812

main86309-0D220iNSP151..F201801-202406

86396NUT, ANTENNA

main86396-47010iNCP15#..PH201304-202406

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9011906915

main90119-06915

90119T0130

main90119-T0130

8 parts on this diagram · 2 diagrams in section
