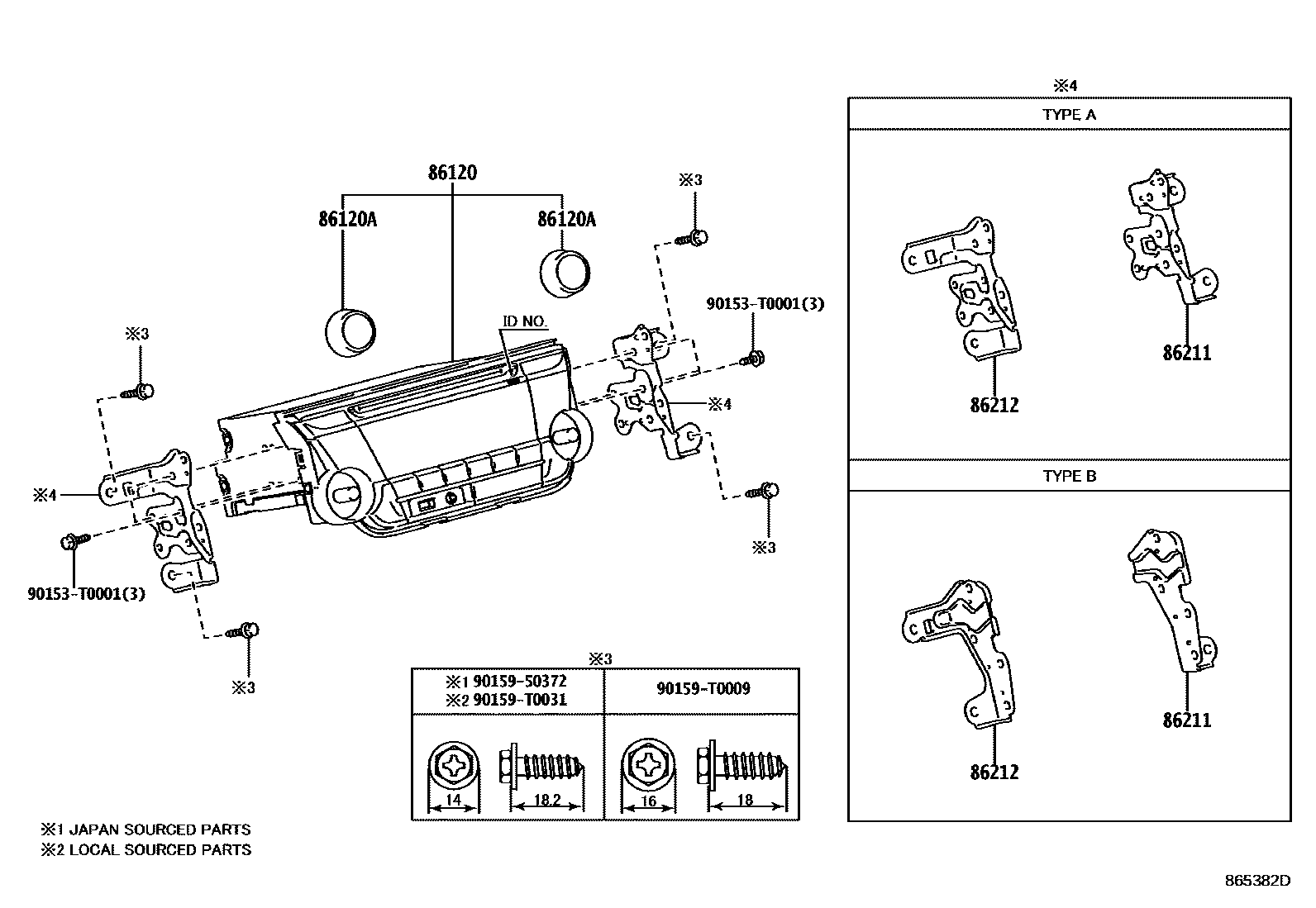

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER 0005 1RECEIVER 0008 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0D700iNCP150,NSP151..(ATM,CVT)..TH..(G,R)..B201304-201906

PANASONIC,ID=528AL,BRUNEI SPEC

sub86120-0D701

main86120-0D700iNCP150,NSP151..(ATM,CVT)..TH..(G,R)..B201304-201906

PANASONIC,ID=528AL

sub86120-0D701

main86120-0D700iNCP150..5F..TH..D..B;NCP150,NSP151..(ATM,CVT)..TH..R..B201304-201906

PANASONIC,ID=528AL,SINGAPORE SPEC

sub86120-0D701

main86120-0D701iNSP151..TH..(G,R)..B201907

PANASONIC,ID=528AL,BRUNEI SPEC

main86120-0D701iNSP151..TH..R..B201907

PANASONIC,ID=528AL,SINGAPORE SPEC

main86120-0D701iNSP151..TH..R..B201907

PANASONIC,ID=528AL

main86120-0D710iNCP151,NSP150..GCC..D..B201308-201710

PANASONIC,ID=528AJ,AUDIO-CD & AM/FM & USB & 2SPEAKER & EXTRA

sub86120-0D711

main86120-0D710iNCP15#,NSP150,151..LHD..(GEN,TAIW)201308-201710

PANASONIC,ID=528AJ

sub86120-0D711

main86120-0D710iNCP15#,NSP150,151..LHD..(GEN,TAIW)201308-201710

PANASONIC,ID=528AJ,AUDIO-CD & AM/FM & USB & 4SPEAKER & EXTRA

sub86120-0D711

main86120-0D710iNCP15#,NSP150,151..LHD..(GEN,TAIW)201308-201710

PANASONIC,ID=528AJ,AUDIO-CD & AM/FM & USB & 6SPEAKER & EXTRA

sub86120-0D711

main86120-0D711iNSP151..TAIW201711-201802

PANASONIC,ID=528AJ

main86120-0D711iNSP151..TAIW..R201711-201802

PANASONIC,ID=528AJ,E-LO PACKAGE(FOR TAIWAN)

main86120-0D770iNCP150,NSP151..MA..R201310-201812

PANASONIC,ID=528AL

main86120-0D770iNCP150,NSP151..MA..(G,R,V)201310-201812

PANASONIC,ID=528AL,AUDIO-RADIOLESS 6SPEAKER

main86120-0D770iNCP150,NSP151..MA..(G,R,V)201310-201812

PANASONIC,ID=528AL,AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

main86120-0D780iNCP15#..PH..(G,R)201307-201501

PANASONIC,ID=528AJ

main86120-0D840iNCP150,NSP151..IDN..R..C201312-201712

PANASONIC,ID=528AL

sub86120-0D841

main86120-0DA40iNSP152201708-201910

PANASONIC,ID=510250

main86120-0DA70iNSP151..BZ..(D,R)201807-201910

DENSO TEN,ID=100749

main86120-0DA80iNSP151..(AGT,GEN)..(D,R)..H201807-201910

DENSO TEN,ID=100750

main86120-0DB80iNSP151..GEN..G..H201807-201910

DENSO TEN,ID=100752

main86120-0DC00iNSP150..5F..GEN..R201710-202207

PANASONIC,ID=510261,LATIN AMERICA SPEC&AUDIO-RADIOLESS 4SPEAKER

main86120-0DC00iNSP150..5F..GEN..R201710-202207

PANASONIC,ID=510261,LATIN AMERICA SPEC&AUDIO-RADIOLESS 6SPEAKER

main86120-0DC00iNSP150..LHD..GEN..R;NSP151..CVT..GEN..R;NSP151..5F..(G,R)..A201710-202207

PANASONIC,ID=510261,ASEAN GENERAL SPEC&AUDIO-RADIOLESS 4SPEAKER

main86120-0DC00iNSP150..LHD..GEN..R;NSP151..CVT..GEN..R;NSP151..5F..(G,R)..A201710-202207

PANASONIC,ID=510261,ASEAN GENERAL SPEC&AUDIO-RADIOLESS 6SPEAKER

main86120-0DC00iNSP150..5F..GEN..R201710-202207

PANASONIC,ID=510261

main86120-0DC10iNSP151..LHD..CVT..GEN..G..A201710-202207

PANASONIC,ID=510262

main86120-0DC10iNSP150,151..LHD..CVT..GEN..G..A201710-202207

PANASONIC,ID=510262,ASEAN GENERAL SPEC&AUDIO-RADIOLESS 6SPEAKER

main86120-0DC10iNSP150,151..LHD..CVT..GEN..G..A201710-202207

PANASONIC,ID=510262,LATIN AMERICA SPEC&AUDIO-RADIOLESS 6SPEAKER

main86120-0DC90iNSP150..RHD..(D,R)..A201710-202207

PANASONIC,ID=510269,LATIN AMERICA SPEC&AUDIO-RADIOLESS 6SPEAKER

main86120-0DC90iNSP150..5F..G..A201710-202207

PANASONIC,ID=510269

main86120-0DC90iNSP150..RHD..CVT..A201710-202207

PANASONIC,ID=510269,LATIN AMERICA SPEC&AUDIO-RADIOLESS 4SPEAKER

main86120-0DD00iNSP151..CVT..IDN..R201801-201909

PANASONIC,ID=510270,BRUNEI SPEC

sub86120-0DD01

main86120-0DD00iNSP151..IDN..R201801-201909

PANASONIC,ID=510270

sub86120-0DD01

main86120-0DD00iNSP151..IDN..R201801-201909

PANASONIC,ID=510270,SINGAPORE SPEC

sub86120-0DD01

main86120-0DD01iNSP151..CVT..IDN..R201910-202207

PANASONIC

main86120-0DD01iNSP151..IDN..R201910-202207

PANASONIC,SINGAPORE SPEC

main86120-0DD21iNSP151..D..F201803-202101

PANASONIC,ID=510272

main86120-0DD40iNSP151..D..G201804-201908

PANASONIC,ID=510274

main86120-0DD70iNSP151..RHD..GEN201710-202207

PANASONIC,ID=510279

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25216iNCP150,NSP151..(ATM,CVT)..TH..(G,R)..B201304

BRUNEI SPEC

main90011-25216iNCP150,NSP151..(ATM,CVT)..TH..(G,R)..B201304

SINGAPORE SPEC

main90011-25289iNCP150,NSP151..MA..(G,R,V)201310-201812

AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

main90011-25289iNCP150,NSP151..MA..(G,R,V)201310-201812

AUDIO-RADIOLESS 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-0D100iNSP150,151..VN201304-201807

TYPE A:REFER ILLUST.

main86211-0D170iNCP150..TAIW201404-201802

TYPE A:REFER ILLUST.

main86211-0D190iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

TYPE A:REFER ILLUST.

sub86211-0D290

main86211-0D260iNSP152..HTWC;NSP151..GEN..A;NSP150..CVT..GEN..A;NSP150..LHD..5F..GEN..A201708-202207

TYPE A:REFER ILLUST.

main86211-0D290iNSP151..MA201608-201812

TYPE B:REFER ILLUST.

main86211-0D300iNSP150..CVT..D..C201801-202207

AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,TYPE A:REFER ILLUST.

main86211-0D300iNSP150..CVT..D..C201801-202207

TYPE A:REFER ILLUST.

main86211-0D300iNSP150,151..GCC..G..C201801-202207

AUDIO-CD & AM/FM & USB & 2SPEAKER & *BT,TYPE A:REFER ILLUST.

main86211-0D300iNSP150..CVT..D..C201801-202207

AUDIO-CD & AM/FM & USB & 6SPEAKER & *BT,TYPE A:REFER ILLUST.

main86211-0D310iNSP151..D..F201803-202101

TYPE A:REFER ILLUST.

main86211-0D320iNSP151..D..G201804-201908

TYPE A:REFER ILLUST.

main86211-0D360iNSP151..(D,R)..H;NSP151..GEN..G..H201807-201910

TYPE A:REFER ILLUST.

main86211-0D370iNSP151..(R,V)..F201708-202207

TYPE B:REFER ILLUST.

main86211-0D390iNSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..CVT..G..C;NSP151..GCC..R..C;NSP151..5F..(D,G)..C201801-202207

TYPE B:REFER ILLUST.

main86211-0D390iNSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..CVT..G..C;NSP151..GCC..R..C;NSP151..5F..(D,G)..C201801-202207

BRUNEI SPEC,TYPE B:REFER ILLUST.

main86211-0D420iNSP151..(G,R,V)..G201804-201908

TYPE B:REFER ILLUST.

main86211-0D430iNSP151..BZ..R201807-201910

XL-PLUS PACKAGE,TYPE B:REFER ILLUST.

main86211-0D430iNSP151..BZ..R201807-201910

TYPE B:REFER ILLUST.

main86211-0D440iNSP150,151..I202003-202406

TYPE B:REFER ILLUST.

86212BRACKET, RADIO, NO.2

main86212-0D100iNCP15#..(GCC,GEN,TH)..B201304-201807

TYPE A:REFER ILLUST.

main86212-0D170iNSP151..TAIW201404-201802

TYPE A:REFER ILLUST.

main86212-0D190iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

TYPE A:REFER ILLUST.

sub86212-0D290

main86212-0D250iNSP152..HTWC;NSP151..GEN..A;NSP150..CVT..GEN..A;NSP150..LHD..5F..GEN..A201708-202207

TYPE A:REFER ILLUST.

main86212-0D290iNSP151..MA201608-201812

TYPE B:REFER ILLUST.

main86212-0D310iNSP151..IDN..R201801-202207

TYPE A:REFER ILLUST.

main86212-0D310iNSP151..IDN..R201801-202207

AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,TYPE A:REFER ILLUST.

main86212-0D310iNSP151..IDN..R201801-202207

AUDIO-CD & AM/FM & USB & 6SPEAKER & *BT,TYPE A:REFER ILLUST.

main86212-0D310iNSP151..IDN..R201801-202207

AUDIO-CD & AM/FM & USB & 2SPEAKER & *BT,TYPE A:REFER ILLUST.

main86212-0D320iNSP151..D..F201803-202101

TYPE A:REFER ILLUST.

main86212-0D330iNSP151..D..G201804-201908

TYPE A:REFER ILLUST.

main86212-0D340iNSP151..(D,R)..H;NSP151..GEN..G..H201807-201910

TYPE A:REFER ILLUST.

main86212-0D350iNSP150..5F..GCC..D..A201708-202207

TYPE B:REFER ILLUST.

main86212-0D370iNSP151..CVT..IDN..R201801-202207

BRUNEI SPEC,TYPE B:REFER ILLUST.

main86212-0D370iNSP151..CVT..IDN..R201801-202207

TYPE B:REFER ILLUST.

main86212-0D400iNSP151..(G,R,V)..G201804-201908

TYPE B:REFER ILLUST.

main86212-0D410iNSP151..(AGT,BZ)..(G,V)201807-201910

XL-PLUS PACKAGE,TYPE B:REFER ILLUST.

main86212-0D410iNSP151..(AGT,BZ)..(G,V)201807-201910

TYPE B:REFER ILLUST.

main86212-0D420iNSP150,151..I202003-202406

TYPE B:REFER ILLUST.

90153T0001

main90153-T0001

9015950372

main90159-50372

90159T0009

main90159-T0009

90159T0031

main90159-T0031

8 parts on this diagram · 3 diagrams in section
