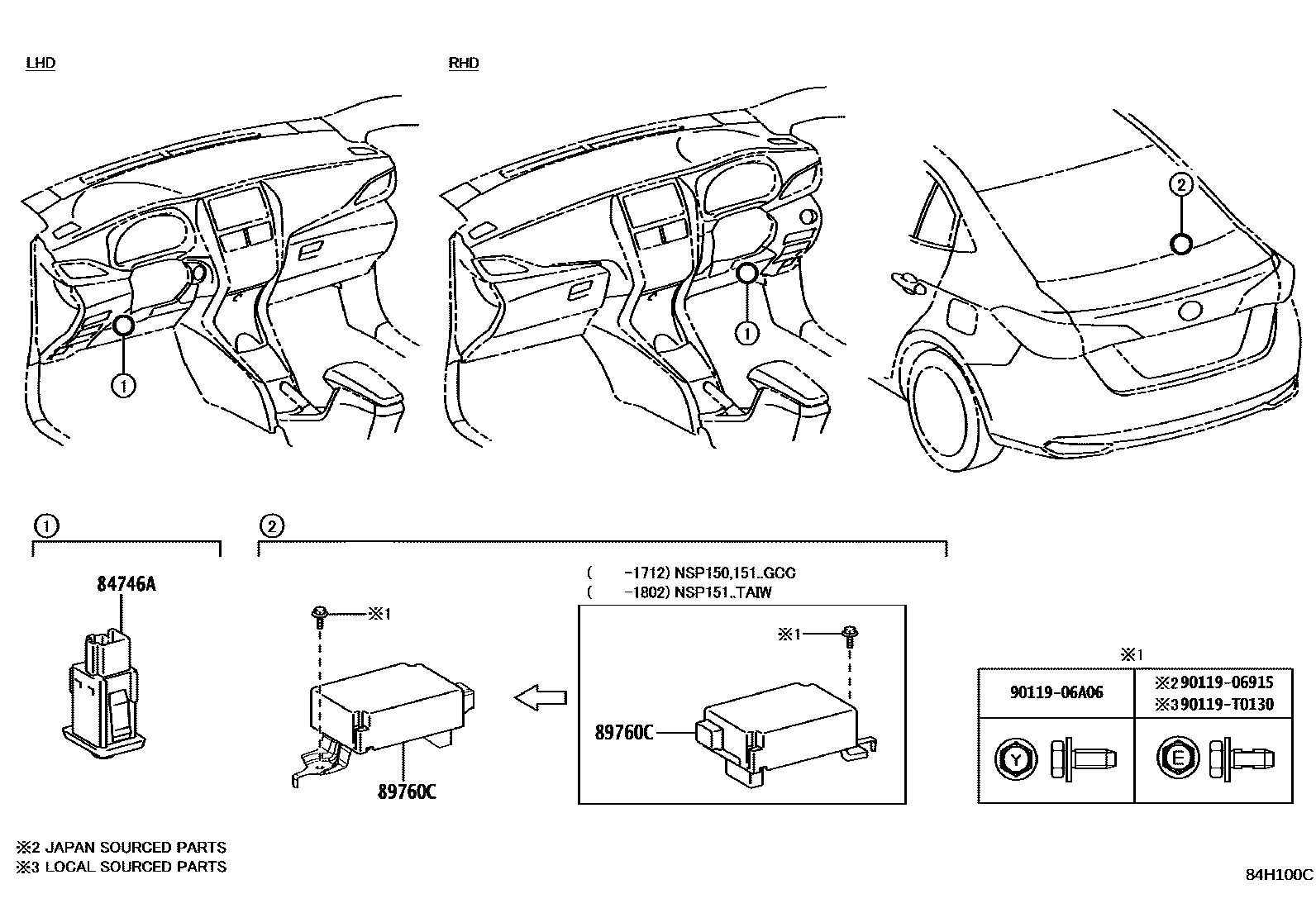

TIRE PRESSURE WARNING SYSTEM

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-0D020iNSP150..5F..GCC..D201801-202207

main84746-50010iNSP150,151..(GCC,TAIW)..(B,C)201604-202101

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-52050iNSP151..TAIW201605-201802

main89760-52070iNSP150,151..GCC201604-201712

main89760-52120iNSP151..F201803-202101

main89760-52140iNSP151..V..G;NSP150,151..GCC201801-202011

main89760-52141iNSP150..5F..GCC..D202011-202207

9011906915

main90119-06915

9011906A06

main90119-06A06

90119T0130

main90119-T0130

5 parts on this diagram · 1 diagram in section
