ANTI-THEFT DEVICE

0001 1 0002 1 0003 1

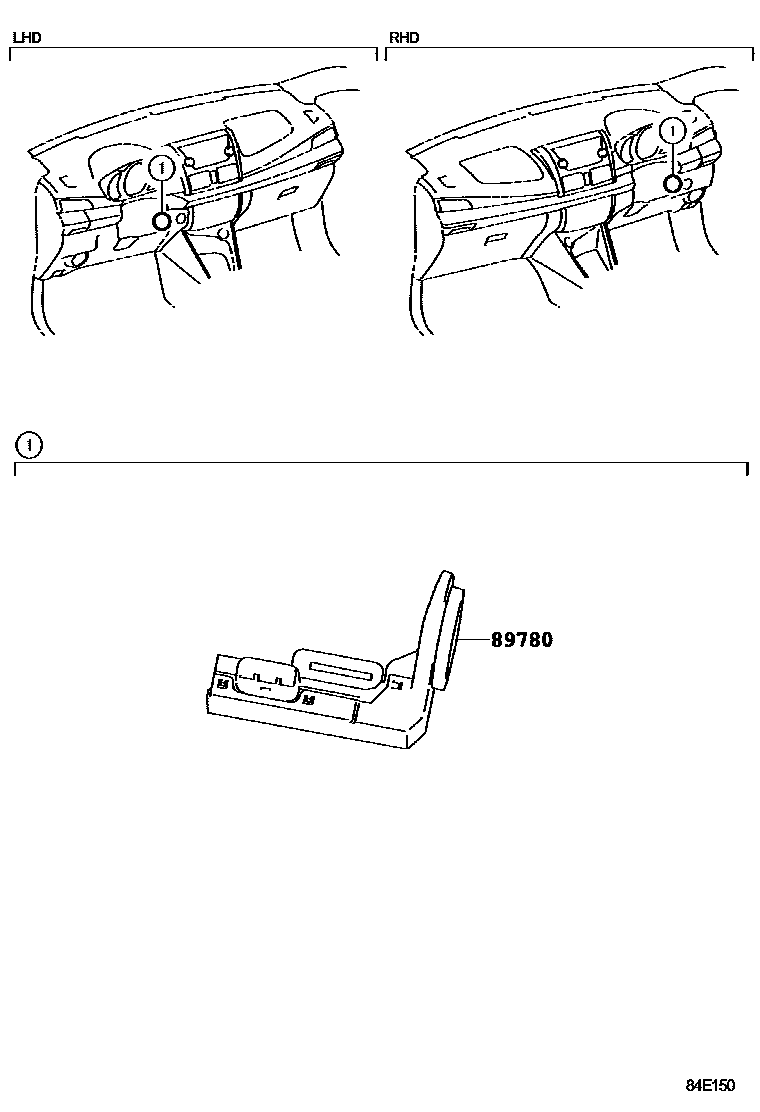

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-0D090iNCP150..IDN..R..B201304-201506

sub89780-0D092

main89780-0D091iNSP151..TH..(D,G,R)..B201810

sub89780-0D092

main89780-0D100iNCP150..MA..(D,R)201310-201501

main89780-0D120iNSP150..C;NSP151..R..C;NSP151..TH..D..C;NSP151..GCC..G..C201312-201712

main89780-0D121supersedes 89780-0D121iNSP150..5F..D..C201809-202108

main89780-0D122iNSP150..I202211-202406

main89780-0D200iNSP151..D..G201804-201908

main89780-0D210iNSP151..CVT..IDN..R202102-202207

SINGAPORE SPEC

sub89780-0D211

1 parts on this diagram · 3 diagrams in section
