REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main90981-13043iNCP15#..MA,TAIW,VN;NSP150,151..(GCC,MA,TAIW,VN)..(B,C)201310-202207

12V 21W

81215HSOCKET, REAR FOG LAMP

main90069-81094iNCP15#..MA,VN;NSP150,151..(GCC,MA,VN)..B201310-201812

main90069-81123iNSP151..(G,R,V)..H201807-201910

main90075-99080iNSP151..F201404-202101

81456LENS & BODY, REAR FOG LAMP, LH

main81456-0D180iNSP151..(G,R,V)..H201807-201910

main81456-0D200iNSP151..F201803-202101

main81591-0D090iNCP15#..MA,VN;NSP150,151..(GCC,MA,VN)..B201310-201812

main81591-0D140iNCP150,NSP151..TAIW201404-201802

81457ALENS & BODY, REAR FOG LAMP, RH

main81457-0D180iNSP151..(G,R,V)..H201807-201910

main81457-0D200iNSP151..F201803-202101

main81581-0D100iNCP15#..MA,VN;NSP150,151..(GCC,MA,VN)..B201310-201812

main81581-0D180iNCP150,NSP151..TAIW201404-201802

81580HLAMP ASSY, REAR FOG, RH

main81480-0D150iNSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP151..(GCC,MA)..(A,B)201801-202207

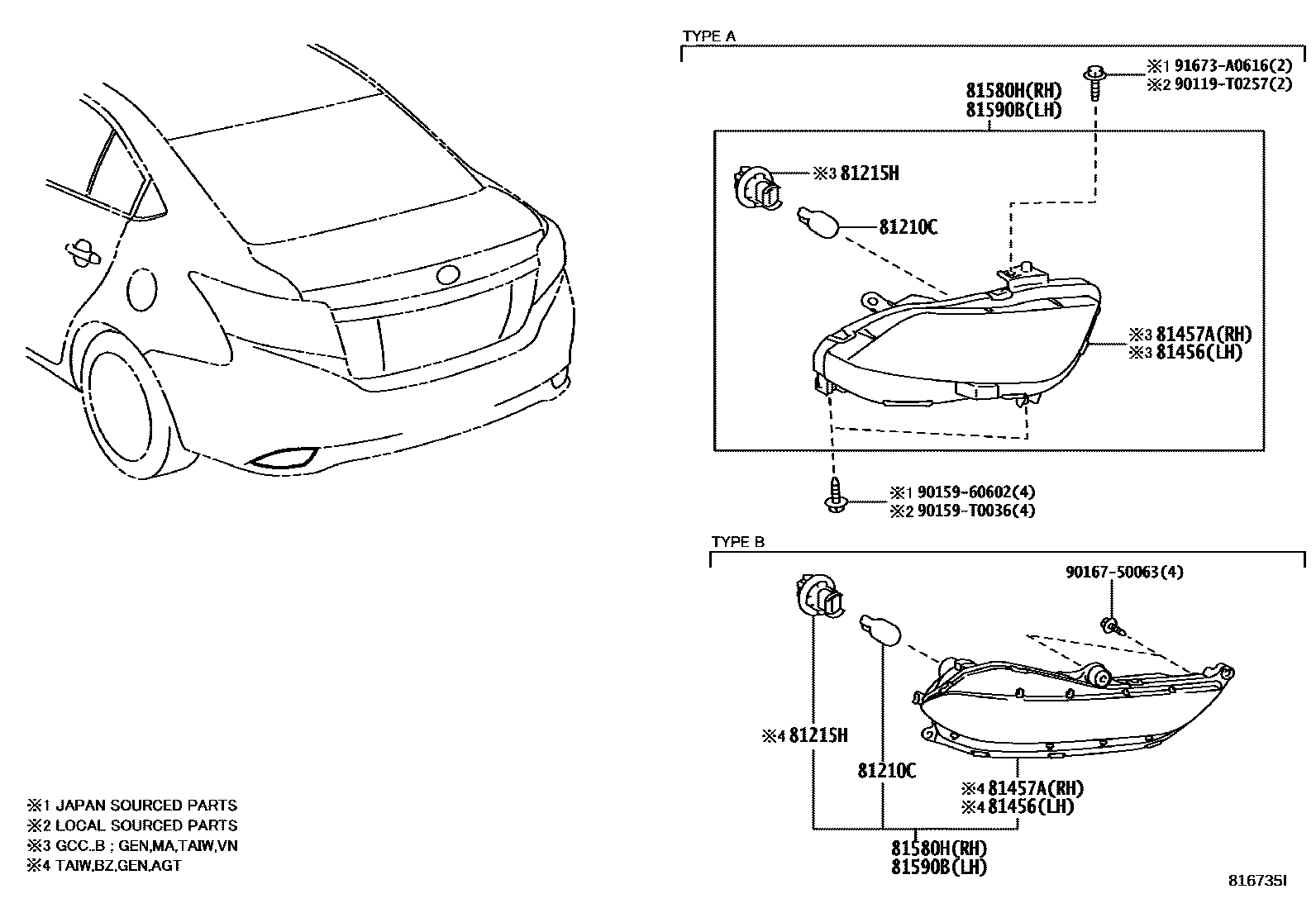

TYPE B:REFER ILLUST.

main81480-0D160iNSP151..(G,R,V)..G201804-201908

TYPE B:REFER ILLUST.

main81480-0D170iNSP150..5F..D..C201801-202207

TYPE B:REFER ILLUST.

main81480-0D180iNSP151..(G,R,V)..H201807-201910

TYPE B:REFER ILLUST.

main81480-0D200iNSP151..F201803-202101

TYPE B:REFER ILLUST.

main81580-0D090iNSP150,151..GCC..C201610-201712

TYPE A:REFER ILLUST.

main81580-0D100iNCP15#..MA,VN;NSP150,151..(GCC,MA,VN)..B201310-201812

TYPE A:REFER ILLUST.

main81580-0D180iNCP150,NSP151..TAIW201404-201802

TYPE A:REFER ILLUST.

81590BLAMP ASSY, REAR FOG, LH

main81490-0D150iNSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP151..(GCC,MA)..(A,B)201801-202207

TYPE B:REFER ILLUST.

main81490-0D160iNSP151..(G,R,V)..G201804-201908

TYPE B:REFER ILLUST.

main81490-0D170iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

TYPE B:REFER ILLUST.

main81490-0D180iNSP151..(G,R,V)..H201807-201910

TYPE B:REFER ILLUST.

main81490-0D200iNSP151..F201803-202101

TYPE B:REFER ILLUST.

main81590-0D090iNCP15#..MA,VN;NSP150,151..(GCC,MA,VN)..B201310-201812

TYPE A:REFER ILLUST.

main81590-0D140iNCP150,NSP151..TAIW201404-201802

TYPE A:REFER ILLUST.

main81590-0D390iNSP150,151..GCC..C201610-201712

TYPE A:REFER ILLUST.

90119T0257

main90119-T0257

9015960602

main90159-60602

90159T0036

main90159-T0036

9016750063

main90167-50063

91673A0616

main91673-A0616

11 parts on this diagram · 1 diagram in section
