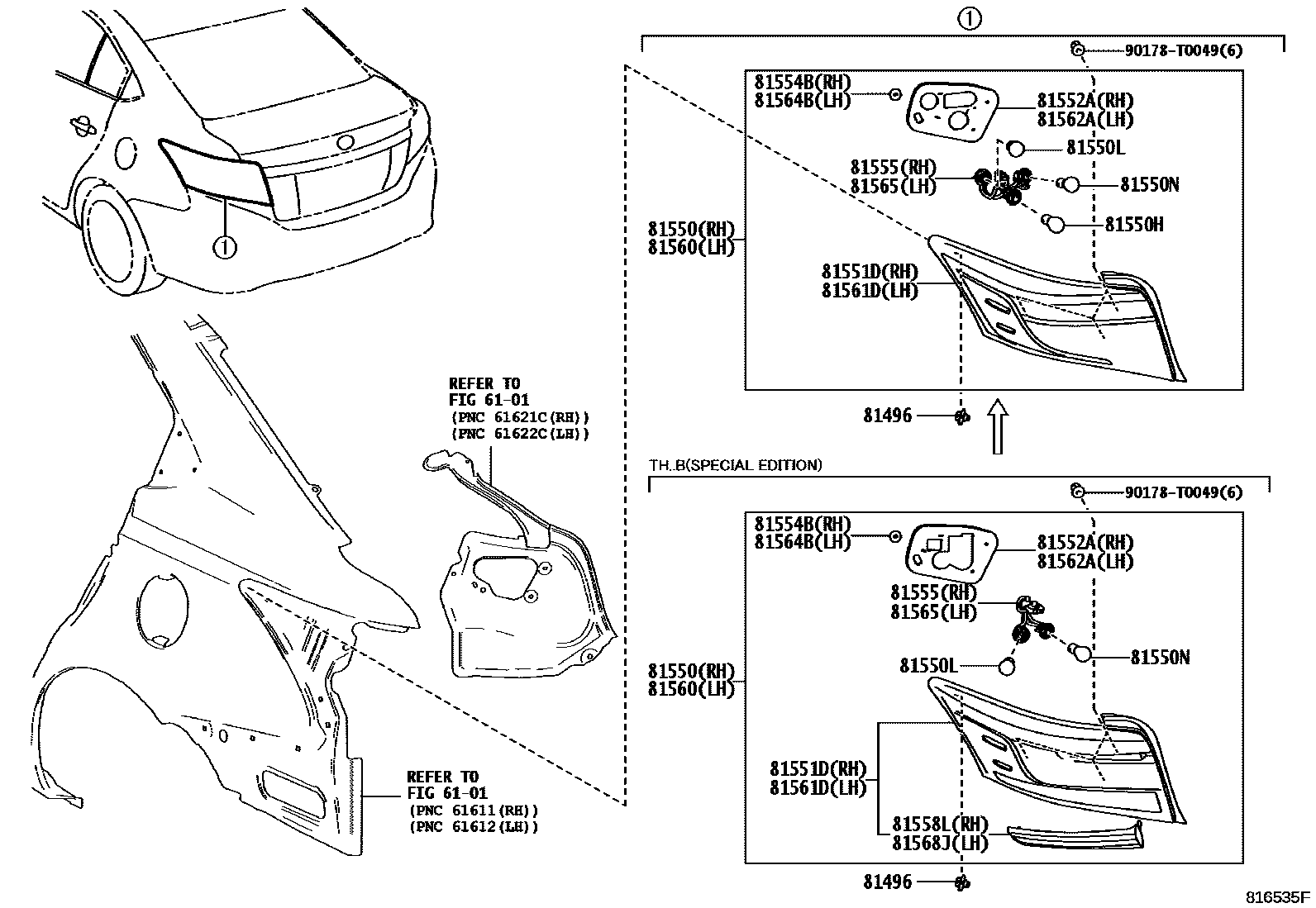

REAR COMBINATION LAMP

0001 1 0004 1 0005 1TAIL & STOP LAMP = BULB 0009 1TAIL & STOP LAMP = BULB 0011 1TAIL & STOP LAMP = BULB 0012 1TAIL & STOP LAMP = BULB 0013 1TAIL & STOP LAMP = LED 0018 1TAIL & STOP LAMP = LED 0019 1TAIL & STOP LAMP = LED 0020 1TAIL & STOP LAMP = LED 0021 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-0D070iNCP15#,NSP150,151..C201312-201712

main81496-60010iNCP150,NSP151..TAIW¥100201404-202101

main81496-60010iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C¥100201708-202406

(J)

main81497-0D070iNSP151..MA..(D,G,R)¥90201304-202011

main81497-0D070iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)¥90201708-202406

(L)

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0D430iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main81550-0D500iNCP150,NSP151..TAIW201404-201802

main81550-0D550iNCP15#,NSP150,151..C201312-201712

main81550-0D850iNSP151..MA..V201901-201905

main81550-0D851iNSP151..MA..V201906-202011

main81550-0DA40iNSP152;NSP150..GEN..G..A;NSP151..LHD..GEN..G..A;NSP151..RHD..(GEN,MA)..(G,R);NSP151..(PH,TAIW,TH,VN)..(G,V)..(A,D,E,F)201708-201905

main81550-0DA41iNSP151..V..F201906-202108

main81550-0DA41iNSP150,151..GCC..G..A201906-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81550-0DA50iNSP151..MA..D;NSP150,151..GCC..G..A;NSP150,151..(D,R)..(A,D,E)201708-201905

main81550-0DA51iNSP150..5F..GCC..D..A201906-202207

main81550-0DA60iNSP151..(G,V)..G201804-201908

main81550-0DA70iNSP151..(D,R)..G201804-201908

main81550-0DA80iNSP150,151..GCC..G..C201801-201907

BRUNEI SPEC

main81550-0DA80iNSP151..IDN..G201801-201907

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81550-0DA81iNSP151..IDN..G201908-202207

BRUNEI SPEC

main81550-0DA81iNSP151..IDN..G201908-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81550-0DA90iNSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C201801-201907

main81550-0DA91iNSP150..5F..D..C;NSP151..CVT..D..C201908-202207

main81550-0DB30iNSP151..(D,R)..F201803-201905

main81550-0DB31iNSP151..(D,R)..F201906-202101

main81550-0DB91iNSP150,151..I202003-202406

main81550-0DD10iNSP151..G..E201905-201909

main81550-0DD11iNSP151..G..E201910-201912

main81550-0DD20iNSP150,151..(D,R)..E201905-201909

sub81550-0DD21

main81550-0DD21iNSP150,151..(D,R)..E201910-201912

main81550-0DE51iNSP151..MA..(G,R)202001-202011

main81550-0DE61iNSP151..MA..D202001-202011

81550HBULB, TAIL & STOP LAMP

main90981-13044iNSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)¥230201708-202207

12V 21/5W

main90981-13094iNCP150,NSP151..TAIW¥400201404-201802

12V 21/5W

main90981-13098iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B¥360201304

main90981-TD002iNCP15#,NSP150,151..C201312-201712

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15009iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)¥350201304

12V 21W,AMBER

main90981-15011iNSP151..MA..V;NSP151..A,D,G,H;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150,152..(GEN,PH,TH)..(D,R)..(A,D)¥300201708-202207

12V 21W,AMBER

main90981-15021iNSP151..(D,R)..F¥300201801-202406

12V 21W,AMBER

main90981-15028iNCP150,NSP151..TAIW¥350201404-201802

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iNSP151..MA..(D,G,R)¥200201404-202406

12V 16W

main90981-13097iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B¥360201304

main90981-TD001iNCP15#,NSP150,151..C201312-201712

12V 21W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0D430iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main81551-0D500iNCP150,NSP151..TAIW201404-201802

main81551-0D550iNCP15#,NSP150,151..C201312-201712

main81551-0D850iNSP151..MA..V201901-201906

main81551-0D851iNSP151..MA..V201906-202011

main81551-0DA40iNSP151..G..E201708-201910

main81551-0DA41iNSP150..5F..G..A201906-202108

main81551-0DA41iNSP152;NSP150..CVT..GEN..G;NSP151..(GEN,PH,TH)..G..(A,D)201906-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81551-0DA50iNSP150,151..(D,R)..E201708-201910

sub81551-0DD21

main81551-0DA51iNSP151..(D,R)..A;NSP151..GCC..G..A;NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..(GEN,PH)..(D,R)201906-202207

main81551-0DA60iNSP151..(G,V)..G201804-201908

sub81550-0DA61

main81551-0DA70iNSP151..(D,R)..G201804-201908

sub81550-0DA71

main81551-0DA80iNSP150,151..GCC..G..C201801-201908

BRUNEI SPEC

main81551-0DA80iNSP151..IDN..G201801-201908

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81551-0DA81iNSP150,151..GCC..G..C201908-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81551-0DA81iNSP151..CVT..IDN..R201908-202207

BRUNEI SPEC

main81551-0DA90iNSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C201801-201908

main81551-0DA91iNSP150..5F..D..C;NSP151..CVT..D..C201908-202207

main81551-0DB00iNSP151..V..H;NSP151..AGT..G201807-201910

main81551-0DB10iNSP151..AGT..R;NSP151..(BZ,GEN)..(D,G,R)..H201807-201910

main81551-0DB30iNSP151..(D,R)..F201803-201906

main81551-0DB31iNSP151..(D,R)..F201906-202101

main81551-0DD11iNSP151..G..E201910-201912

main81551-0DD21iNSP150,151..(D,R)..E201910-201912

main81551-0DE50iNSP151..MA..(G,R)202001-202011

main81551-0DE60iNSP151..MA..D202001-202011

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-0D430iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main81552-0D500iNCP150,NSP151..TAIW201404-201802

main81552-0D550iNCP15#,NSP150,151..C201312-201712

main81552-0DA90iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main81552-0DB00iNSP151..V..H;NSP151..AGT..G201807-201910

main81552-0DB10iNSP151..AGT..R;NSP151..(BZ,GEN)..(D,G,R)..H201807-201910

main81552-0DB30iNSP151..(D,R)..F201803-202101

main81554-0DA40iNSP151..V..F201708-202207

main81554-0DA50iNSP150,151..(D,R)..E201708-202207

sub81554-0DD21

main81554-0DA60iNSP151..(G,V)..G201804-201908

main81554-0DA70iNSP151..(D,R)..G201804-201908

main81554-0DD11iNSP151..G..E201910-201912

main81554-0DD21iNSP150,151..(D,R)..E201910-201912

main81554-0DE50iNSP151..MA..(D,G,R)202001-202011

81554BGASKET, REAR COMBINATION LAMP BODY, NO.2 RH

main81552-0D440iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main81554-0D550iNCP15#,NSP150,151..C201312-201712

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0D430iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main81555-0D500iNCP150,NSP151..TAIW201404-201802

main81555-0D550iNCP15#,NSP150,151..C201312-201712

main81555-0DA40iNSP152;NSP151..MA..V;NSP150..CVT..GEN..G..A;NSP151..(GEN,PH,TH)..G..(A,D)201708-202207

main81555-0DA50iNSP150..5F..GCC..D..A201708-202207

sub81555-0DD21

main81555-0DA60iNSP151..(G,V)..G201804-201908

main81555-0DA70iNSP151..(D,R)..G201804-201908

main81555-0DA80iNSP151..IDN..G201801-202207

BRUNEI SPEC

main81555-0DA80iNSP151..CVT..IDN..R201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81555-0DA90iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

main81555-0DB30iNSP151..(D,R)..F201803-202101

main81555-0DD11iNSP151..G..E201910-201912

main81555-0DD21iNSP150,151..(D,R)..E201910-201912

main81555-0DE50iNSP151..MA..(G,R)202001-202011

main81555-0DE60iNSP151..MA..D202001-202011

81558LPROTECTOR, REAR COMBINATION LAMP, RH

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0D440iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main81560-0D510iNCP150,NSP151..TAIW201404-201802

main81560-0D550iNCP15#,NSP150,151..C201312-201712

main81560-0D850iNSP151..MA..V201901-201905

main81560-0D851iNSP151..MA..V201906-202011

main81560-0DA40iNSP152;NSP150..GEN..G..A;NSP151..LHD..GEN..G..A;NSP151..RHD..(GEN,MA)..(G,R);NSP151..(PH,TAIW,TH,VN)..(G,V)..(A,D,E,F)201708-201905

main81560-0DA41iNSP151..MA..(G,R)201906-202108

main81560-0DA41iNSP150,151..GCC..G..A201906-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81560-0DA50iNSP151..MA..D;NSP150,151..GCC..G..A;NSP150,151..(D,R)..(A,D,E)201708-201905

main81560-0DA51iNSP151..(D,R)..A;NSP151..GCC..G..A;NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..(GEN,PH)..(D,R)201906-202207

main81560-0DA60iNSP151..(G,V)..G201804-201908

main81560-0DA70iNSP151..(D,R)..G201804-201908

main81560-0DA80iNSP151..IDN..G201801-201907

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81560-0DA80iNSP151..IDN..G201801-201907

BRUNEI SPEC

main81560-0DA81iNSP150,151..GCC..G..C201908-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81560-0DA81iNSP151..CVT..IDN..R201908-202207

BRUNEI SPEC

main81560-0DA90iNSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C201801-201907

main81560-0DA91iNSP150..5F..D..C;NSP151..CVT..D..C201908-202207

main81560-0DB30iNSP151..(D,R)..F201803-201905

main81560-0DB31iNSP151..(D,R)..F201906-202101

main81560-0DB91iNSP150,151..I202003-202406

main81560-0DD10iNSP151..G..E201905-201909

main81560-0DD11iNSP151..G..E201910-201912

main81560-0DD20iNSP150,151..(D,R)..E201905-201909

sub81560-0DD21

main81560-0DD21iNSP150,151..(D,R)..E201910-201912

main81560-0DE51iNSP151..MA..(G,R)202001-202011

main81560-0DE61iNSP151..MA..D202001-202011

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0D440iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main81561-0D510iNCP150,NSP151..TAIW201404-201802

main81561-0D550iNCP15#,NSP150,151..C201312-201712

main81561-0D850iNSP151..MA..V201901-201906

main81561-0D851iNSP151..MA..V201906-202011

main81561-0DA40iNSP152;NSP150..GEN..G..A;NSP151..LHD..GEN..G..A;NSP151..RHD..(GEN,MA)..(G,R);NSP151..(PH,TAIW,TH)..(G,V)..(A,D,F)201708-201910

main81561-0DA41iNSP150..5F..G..A201906-202108

main81561-0DA41iNSP150,151..GCC..G..A201906-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81561-0DA50iNSP150,151..(D,R)..E201708-201910

sub81561-0DD21

main81561-0DA51iNSP151..MA..D201906-202207

main81561-0DA60iNSP151..(G,V)..G201804-201908

main81561-0DA70iNSP151..(D,R)..G201804-201908

sub81560-0DA71

main81561-0DA80iNSP150,151..GCC..G..C201801-201908

BRUNEI SPEC

main81561-0DA80iNSP151..CVT..IDN..R201801-201908

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81561-0DA81iNSP151..IDN..G201908-202207

BRUNEI SPEC

main81561-0DA81iNSP150,151..GCC..G..C201908-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81561-0DA90iNSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C201801-201908

main81561-0DA91iNSP150..5F..D..C;NSP151..CVT..D..C201908-202207

main81561-0DB00iNSP151..V..H;NSP151..AGT..G201807-201910

main81561-0DB10iNSP151..AGT..R;NSP151..(BZ,GEN)..(D,G,R)..H201807-201910

main81561-0DB30iNSP151..(D,R)..F201803-201906

main81561-0DB31iNSP151..(D,R)..F201906-202101

main81561-0DD11iNSP151..G..E201910-201912

main81561-0DD21iNSP150,151..(D,R)..E201910-201912

main81561-0DE50iNSP151..MA..(G,R)202001-202011

main81561-0DE60iNSP151..MA..D202001-202011

81562AGASKET, REAR COMBINATION LAMP, LH

main81552-0D430iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main81552-0D550iNCP15#,NSP150,151..C201312-201712

main81562-0D510iNCP150,NSP151..TAIW201404-201802

main81562-0DA90iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main81562-0DB00iNSP151..V..H;NSP151..AGT..G201807-201910

main81562-0DB10iNSP151..AGT..R;NSP151..(BZ,GEN)..(D,G,R)..H201807-201910

main81562-0DB30iNSP151..(D,R)..F201803-202101

main81564-0DA40iNSP150..5F..G..A201708-202207

main81564-0DA50iNSP151..(D,R)..A;NSP151..GCC..G..A;NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..(GEN,PH)..(D,R)..(A,D)201708-202207

sub81564-0DD21

main81564-0DA60iNSP151..(G,V)..G201804-201908

main81564-0DA70iNSP151..(D,R)..G201804-201908

main81564-0DD11iNSP151..G..E201910-201912

main81564-0DD21iNSP150,151..(D,R)..E201910-201912

main81564-0DE50iNSP151..MA..(D,G,R)202001-202011

81564BGASKET, REAR COMBINATION LAMP BODY, NO.2 LH

main81552-0D440iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main81554-0D550iNCP15#,NSP150,151..C201312-201712

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0D430iNCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304

main81555-0D500iNCP150,NSP151..TAIW201404-201802

main81555-0D550iNCP15#,NSP150,151..C201312-201712

main81555-0DA40iNSP151..V..F201708-202207

main81555-0DA50iNSP151..MA..D201708-202207

sub81555-0DD21

main81555-0DA60iNSP151..(G,V)..G201804-201908

main81555-0DA70iNSP151..(D,R)..G201804-201908

main81555-0DA80iNSP150,151..GCC..G..C201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main81555-0DA80iNSP151..IDN..G201801-202207

BRUNEI SPEC

main81555-0DA90iNSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C201801-202207

main81555-0DB30iNSP151..(D,R)..F201803-202101

main81555-0DD11iNSP151..G..E201910-201912

main81555-0DD21iNSP150,151..(D,R)..E201910-201912

main81555-0DE50iNSP151..MA..(G,R)202001-202011

main81555-0DE60iNSP151..MA..D202001-202011

81568JPROTECTOR, REAR COMBINATION LAMP, LH

90178T0049

main90178-T0049¥60

18 parts on this diagram · 11 diagrams in section
