EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

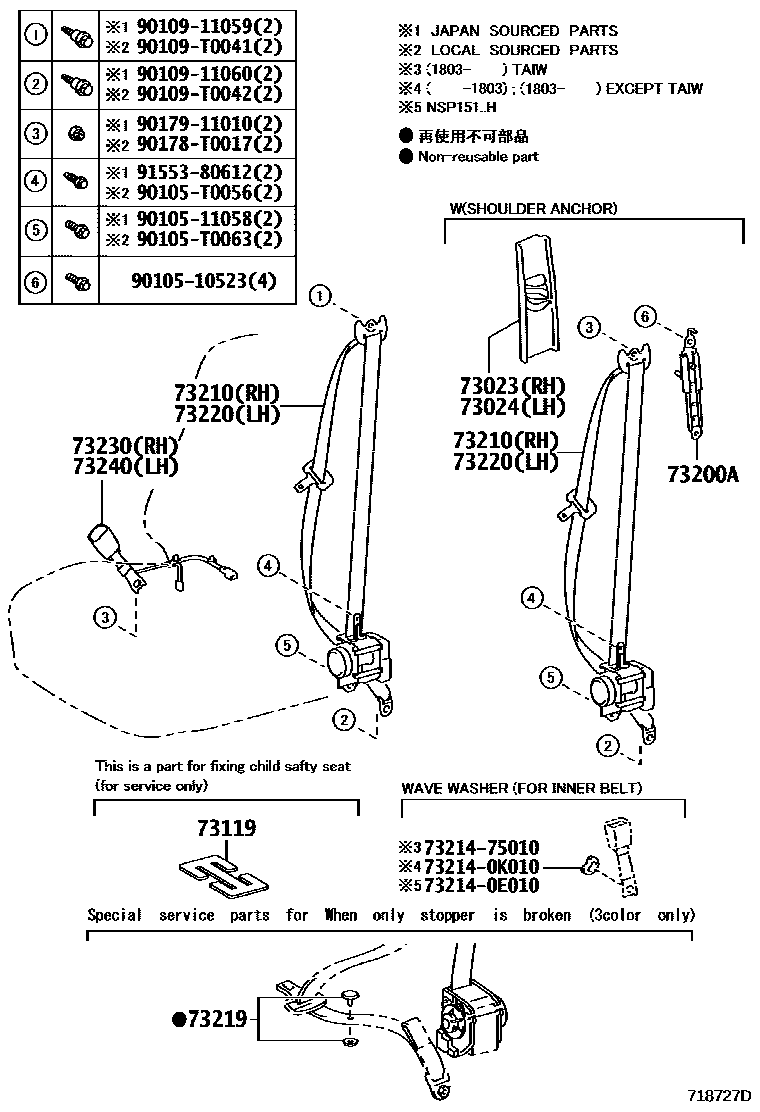

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-02050-B1i201807-201910
GRAY,TRIM2#
main73023-06080-A3i201708-202207
IVORY,TRIM0#
main73023-06080-B0i201708-202108
GRAY,TRIM2#
main73023-06090-A3i201803-202101
IVORY,TRIM0#
main73023-06090-B0i201803-202101
GRAY,TRIM2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-02050-B1i201807-201910
GRAY,TRIM2#
main73024-06110-A3i201708-202407
IVORY,TRIM0#
main73024-06110-B0i201708-202108
GRAY,TRIM2#
main73024-06120-A3i201803-202101
IVORY,TRIM0#
main73024-06120-B0i201803-202101
GRAY,TRIM2#
73119PLATE, SEAT BELT WEBBING CLIP
main73119-22010i201708
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-02130×2i201803-202101
main73200-02140×2i201708-202108
main73200-12070×2i201807-201910
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-0D360-A0i201308-201603
LATIN AMERICA SPEC&J-LO PACKAGE(FOR LATIN AMERICA)&SRS AIR BAG-WITHOUT,IVORY,TRIM0#
main73210-0D360-C0i201308-201603
BLACK/GRAY,TRIM2#
main73210-0D370-A0i201304-201709
IVORY,TRIM0#
main73210-0D370-C0i201304-201712
BLACK,TRIM2#
main73210-0D380-A0i201310-201501
IVORY,TRIM0#
main73210-0D380-C0i201310-201812
BLACK,TRIM2#
main73210-0D390-A0i201404-201604
IVORY/IVORY,TRIM0#
main73210-0D390-C0i201404-201604
BLACK/GRAY,TRIM2#
main73210-0D391-A0i201707-201802
IVORY/IVORY,TRIM0#
main73210-0D391-C0i201707-201802
BLACK/GRAY,TRIM2#
main73210-0D420-A0i201312-201712
IVORY,TRIM0#
main73210-0D420-C0i201312-201609
BLACK,TRIM2#
main73210-0D430-A0i201402-201609
IVORY,TRIM0#
main73210-0D430-C0i201402-201609
BLACK,TRIM2#
main73210-0D460-A0i201307-201807
IVORY,TRIM0#
main73210-0D460-C0i201307-201608
GRAY,TRIM2#
main73210-0D510-A0i201708-202108
IVORY,TRIM0#
main73210-0D510-C0i201708-202009
BLACK/GRAY,TRIM2#
main73210-0D530-C0i201901-202011
BLACK/GRAY,TRIM2#
main73210-0D540-A0i201801-202108
IVORY,TRIM0#
main73210-0D540-C0i201801-202108
BLACK/GRAY,TRIM2#
main73210-0D550-A0i201803-202101
IVORY/IVORY,TRIM0#
main73210-0D550-C0i201803-202101
BLACK/GRAY,TRIM2#
main73210-0D560-A0i201804-201908
IVORY,TRIM0#
main73210-0D570-C0i201807-201910
BLACK/GRAY,TRIM2#
main73210-0D620-A0i202003
IVORY,TRIM0#
main73210-0D630-A0i202009-202207
IVORY,TRIM0#
main73210-0D630-C0i202009-202207
BLACK/GRAY,TRIM2#
73219STOPPER, TONGUE PLATE
main73219-33010i201708-202108
BLACK
main73219-33020i201304-201806
GRAY
main73219-33030i201304-201802
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0D350-A0i201304-201712
IVORY,TRIM0#
main73220-0D350-C0i201304
BLACK,TRIM2#
main73220-0D370-A0i201310-201501
IVORY,TRIM0#
main73220-0D370-C0i201310-201608
BLACK,TRIM2#
main73220-0D380-A0i201404-201706
IVORY/IVORY,TRIM0#
main73220-0D380-C0i201404-201604
BLACK/GRAY,TRIM2#
main73220-0D381-A0i201707-201802
IVORY/IVORY,TRIM0#
main73220-0D381-C0i201707-201802
BLACK/GRAY,TRIM2#
main73220-0D410-A0i201312-201609
IVORY,TRIM0#
main73220-0D410-C0i201312-201609
BLACK,TRIM2#
main73220-0D450-A0i201307-201807
IVORY,TRIM0#
main73220-0D450-C0i201307-201608
GRAY,TRIM2#
main73220-0D500-A0i201708-202207
IVORY,TRIM0#
main73220-0D500-C0i201708-202207
BLACK/GRAY,TRIM2#
main73220-0D520-C0i201901-202011
BLACK/GRAY,TRIM2#
main73220-0D530-A0i201801-202207
IVORY,TRIM0#
main73220-0D530-C0i201801-202207
BLACK/GRAY,TRIM2#
main73220-0D540-A0i201803-202101
IVORY/IVORY,TRIM0#
main73220-0D540-C0i201803-202101
BLACK/GRAY,TRIM2#
main73220-0D550-A0i201804-201908
IVORY,TRIM0#
main73220-0D560-C0i201807-201910
BLACK/GRAY,TRIM2#
main73220-0D610-A0i202003
IVORY,TRIM0#
main73220-0D620-A0i202009-202207
IVORY,TRIM0#
main73220-0D620-C0i202009-202207
BLACK/GRAY,TRIM2#
main73220-0D340-A0i201308-201709
LATIN AMERICA SPEC&J-LO PACKAGE(FOR LATIN AMERICA)&SRS AIR BAG-WITHOUT,IVORY,TRIM0#
main73220-0D340-C0i201304-201608
REAR SEAT CENTER HEADREST-WITHOUT&SRS AIR BAG-WITHOUT,BLACK/GRAY,TRIM2#
main73220-0D420-C0i201312-201609
SRS AIR BAG-WITHOUT,BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-0D250-A0i202003
IVORY,TRIM0#
main73230-0D430-A0i201710-201911
IVORY,TRIM0#
main73230-0D430-C0i201710-201911
BLACK,TRIM2#
main73230-0D440-C0i201304-201506
BLACK,TRIM2#
main73230-0D450-A0supersedes 73230-0D450-A0i201710-201911
IVORY,TRIM0#
main73230-0D450-C0i201307-201807
BLACK,TRIM2#
main73230-0D460-A0i201310-201501
IVORY,TRIM0#
main73230-0D460-C0i201310-201812
BLACK,TRIM2#
main73230-0D490-A0i201803-202101
IVORY,TRIM0#
main73230-0D490-C0i201404-201802
BLACK,TRIM2#
main73230-0D540-A0i201312-201712
IVORY,TRIM0#
main73230-0D540-C0i201501-201712
BLACK,TRIM2#
main73230-0D560-C0i201312-201501
BLACK,TRIM2#
main73230-0D580-A0i201801-202108
IVORY,TRIM0#
main73230-0D580-C0i201402-201712
BLACK,TRIM2#
main73230-0D660-A0i201708-201911
IVORY,TRIM0#
main73230-0D660-C0i201708-201911
BLACK,TRIM2#
main73230-0D700-A0i201804-201908
IVORY,TRIM0#
main73230-0D720-A0i201804-201908
IVORY,TRIM0#
main73230-0D750-C0i201807-201910
BLACK,TRIM2#
main73230-0D760-A0i201808-201912
IVORY,TRIM0#
main73230-0D760-C0i201807-201912
BLACK,TRIM2#
main73230-0D790-C0i201901-202011
BLACK,TRIM2#
main73230-0D800-A0i201801-202207
IVORY,TRIM0#
main73230-0D800-C0i201801-202108
BLACK,TRIM2#
main73230-0D880-A0i201911-202108
IVORY,TRIM0#
main73230-0D880-C0i201911-202207
BLACK,TRIM2#
main73230-0D890-A0i201911-202108
IVORY,TRIM0#
main73230-0D890-C0i201911-202108
BLACK,TRIM2#
main73230-0D870-C0i201911-202009
ECO PACKAGE,BLACK,TRIM2#
main73230-0DA00-A0i201911-202109
PERU SPEC&SAFETY PACKAGE, WITH(*CUSA),IVORY,TRIM0#
main73230-0DA00-C0i201911-202109
PERU SPEC&SAFETY PACKAGE, WITH(*CUSA),BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-0D450-A0i201710-201911
IVORY,TRIM0#
main73230-0D450-C0i201710-201911
BLACK,TRIM2#
main73230-0D470-A0i201310-201501
IVORY,TRIM0#
main73230-0D470-C0i201310-201812
BLACK,TRIM2#
main73230-0D480-A0i201404-201802
IVORY,TRIM0#
main73230-0D480-C0i201404-201802
BLACK,TRIM2#
main73230-0D520-A0i201307-201310
IVORY,TRIM0#
main73230-0D520-C0i201307-201310
BLACK,TRIM2#
main73230-0D521-A0i201710-201912
IVORY,TRIM0#
main73230-0D521-C0i201710-201911
BLACK,TRIM2#
main73230-0D530-A0i201308-201310
IVORY,TRIM0#
main73230-0D530-C0i201308-201310
BLACK,TRIM2#
main73230-0D531-A0i201710-201911
IVORY,TRIM0#
main73230-0D531-C0i201310-201807
BLACK,TRIM2#
main73230-0D550-A0supersedes 73230-0D570-A0i201402-201712
IVORY,TRIM0#
main73230-0D550-C0supersedes 73230-0D570-C0i201801-202207
BLACK,TRIM2#
main73230-0D580-A0i201312-201712
IVORY,TRIM0#
main73230-0D580-C0i201312-201712
BLACK,TRIM2#
main73230-0D670-A0i201708-201911
IVORY,TRIM0#
main73230-0D670-C0i201708-201911
BLACK,TRIM2#
main73230-0D680-C0i201901-202011
BLACK,TRIM2#
main73230-0D690-A0i201801-202207
IVORY,TRIM0#
main73230-0D690-C0i201801-202207
BLACK,TRIM2#
main73230-0D710-A0i201804-201908
IVORY,TRIM0#
main73230-0D730-C0i201807-201910
BLACK,TRIM2#
main73230-0D810-A0i202003
IVORY,TRIM0#
main73230-0D880-A0i201911-202207
IVORY,TRIM0#
main73230-0D880-C0i201911-202108
BLACK,TRIM2#
main73230-0DA10-A0i201911-202207
IVORY,TRIM0#
main73230-0DA10-C0i201911-202207
BLACK,TRIM2#
main73230-0DA20-A0i201911-202207
IVORY,TRIM0#
main73230-0DA20-C0i201911-202207
LATIN AMERICA SPEC,BLACK,TRIM2#
main73230-0DA30-A0supersedes 73230-0DA10-A0i201911-202207
J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT)),IVORY,TRIM0#
main73230-0DA30-C0supersedes 73230-0DA10-C0i201911-202207
J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT)),BLACK,TRIM2#
732140E010PLATE, FRONT SEAT BELT ANCHOR
main73214-0E010
732140K010PLATE, FRONT SEAT BELT ANCHOR
main73214-0K010
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511058
main90105-11058
90105T0056
main90105-T0056
90105T0063
main90105-T0063
9010911059
main90109-11059
9010911060
main90109-11060
90109T0041
main90109-T0041
90109T0042
main90109-T0042
90178T0017
main90178-T0017
9017911010
main90179-11010
9155380612
main91553-80612

23 parts on this diagram · 2 diagrams in section
