LOCK CYLINDER SET

0001 1WITH(SMART ENTRY) 0002 1WITHOUT(SMART ENTRY) 0006 1WITHOUT(SMART ENTRY) 0008 1WITHOUT(SMART ENTRY) 0012 1WITHOUT(SMART ENTRY),EGYPT SP0013 1WITHOUT(SMART ENTRY)

69503CYLINDER SET, LOCK

main69005-0D180iNCP151..4FC..D..C201402-201609

main69005-0D340iNSP151..TH..R..C201501-201712

WIRELESS KEY 2 PCS.

main69005-0D350iNSP151..TH..D..C201501-201712

WIRELESS KEY 2 PCS.

main69005-0D690iNCP151..VN201304-201608

main69005-0D700iNCP15#..5F..PH..(G,R)201307-201606

WIRELESS KEY 1 PIECE

main69005-0D710iNCP150..VN..G201307-201608

WIRELESS KEY 1 PIECE

main69005-0D720supersedes 69005-0D750iNSP150..5F..GCC..D..B201308-201712

main69005-0D730iNSP150..CVT..GCC..D..B201308-201712

main69005-0D740iNSP150,151..CVT..GEN..(D,R)201304-201709

WIRELESS KEY 1 PIECE

main69005-0D750iNSP150..5F..GCC..R..B201304-201712

WIRELESS KEY 1 PIECE

main69005-0D780iNCP150..TH..V;NCP151..RHD..G201304-201603

main69005-0D790iNSP150,151..LHD..GEN..G201308-201709

main69005-0D880iNSP151..TAIW..(D,R)201404-201802

WIRELESS KEY 2 PCS.

main69005-0DA00iNCP150..TAIW..V201404-201604

main69005-0DB00iNCP150..5F..MA201310-201501

main69005-0DB10iNCP150..4FC..MA..(D,R)201310-201501

main69005-0DB30iNSP151..GCC..G..C;NSP150..CVT..(G,R)..C;NSP151..CVT..(GCC,IDN)..R..C201312-201712

WIRELESS KEY 1 PIECE

main69005-0DB40iNCP15#..5F..R..C201312-201609

WIRELESS KEY 1 PIECE

main69005-0DB50iNSP151..IDN..G201312-201712

main69005-0DB60iNCP151..5F..D..C201402-201609

main69005-0DB70iNCP150..IDN..D..C201312-201609

main69005-0DF80iNSP151..CVT..D..C201610-201712

main69005-0DG50iNSP150,151..CVT..R..(D,E)201807-201912

WIRELESS KEY 1 PIECE

main69005-0DG60iNSP151..GCC..G..A;NSP151..LHD..CVT..(D,R)..A;NSP150..CVT..GCC..(G,R)..A;NSP150,152..CVT..(GEN,TH)..(D,R)..A201708-202207

WIRELESS KEY 1 PIECE

main69005-0DG70iNSP150..5F..G..A201708-202108

main69005-0DG80iNSP150..5F..D..(D,E)201807-201912

main69005-0DG90iNSP150,151..5F..R..(D,E)201807-201912

WIRELESS KEY 1 PIECE

main69005-0DJ00iNSP150..5F..GCC..D..A201801-202108

main69005-0DJ10iNSP150..5F..GCC..R..A;NSP150,151..5F..GEN..(D,R)201710-202207

WIRELESS KEY 1 PIECE

main69005-0DJ20iNSP150,151..LHD..(BZ,GEN,PH,VN)..(G,V)..(A,D,E,H)201710-202207

main69005-0DJ30iNSP150..CVT..GCC..D..A201801-202207

main69005-0DJ50iNSP151..(D,R)..F201803-202101

WIRELESS KEY 2 PCS.

main69005-0DJ70iNSP151..V..F201803-202101

main69005-0DJ90iNSP150,151..5F..R..C201801-202207

WIRELESS KEY 1 PIECE

main69005-0DK00iNSP151..CVT..R..C;NSP151..GCC..G..C;NSP150..CVT..(G,R)..C201801-202207

WIRELESS KEY 1 PIECE

main69005-0DK10supersedes 69005-0DK10iNSP150..5F..I202003-202406

WIRELESS KEY 2 PCS.

main69005-0DK20iNSP150..CVT..I202003-202406

WIRELESS KEY 2 PCS.

main69005-0DK50iNSP151..IDN..G201801-202207

main69005-0DK60iNSP150..5F..D..C201801-202108

main69005-0DK70iNSP150..CVT..D..C201801-202207

main69005-0DK90iNSP151..D..G201804-201908

main69005-0DL00iNSP151..(G,R,V)..G201804-201908

main69005-0DL50iNSP151..CVT..D..C201801-202108

main69005-0DL80iNSP151..AGT..G;NSP151..(D,R)..H201807-201910

WIRELESS KEY 2 PCS.

main69005-0DM50iNSP150..CVT..D..D201901-201910

main69005-0DC00iNCP15#..GCC..G..C201402-201609

G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main69005-0DE40iNCP150..4FC..TH..R..B201501-201506

SINGAPORE SPEC,WIRELESS KEY 2 PCS.

main69005-0DE50iNCP150..5F..TH..D..B201501-201506

BRUNEI SPEC,WIRELESS KEY 2 PCS.

main69005-0DG10iNSP151..CVT..D..A201710-202207

EGYPT SPEC

main69005-0DG20iNSP151..5F..(D,R)..A201710-202207

EGYPT SPEC

main69005-0DK80iNSP150,151..GCC..G..C201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

69503AKEY, BLANK

main69515-0K140iNSP150,151..(D,R)..(D,E)201807-201912

MASTER KEY,W(*68),(L)

main69515-52180iNSP151..RHD..A;NSP151..IDN..G;NSP150..CVT..GEN..G..A;NSP151..LHD..GEN..G..A201708-202207

MASTER KEY,SPORT PACKAGE

main90999-00199×2iNSP151..AGT..G;NSP151..(D,R)..H201807-201910

MASTER KEY,W(*68)

89745CBATTERY, TRANSMITTER

main89745-0K010iNSP151..V..F201708-202101

CR2032

main89745-50020iNCP150..TAIW..V201304-201604

CR2032

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-0D010×2iNSP151..R..G;NSP151..MA..(D,R);NSP151..(BZ,IND,MA,PKN)..(G,V);NSP151..(GEN,PH,VN)..G..(D,E,H)201708-202406

main8975B-52010×2iNCP150..IDN..G..B201304-201506

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-0D120×2iNSP151..V..F201803-202101

main89904-0D160×2iNSP150..5F..G..A201708-202108

main89904-0D250×2iNSP151..BZ..R201807-201910

XL-PLUS PACKAGE

main89904-0D260×2iNSP151..IDN..G201801-202207

UAE, OMAN SPEC&G-HI PACKAGE, WITH(CRUISE CONTROL)

sub89904-0D261

main89904-0D280×2iNSP151..(G,R,V)..G201804-201908

main89904-0D390×2iNSP151..I202003-202406

main89904-52421×2iNCP150..TAIW..V201404-201604

main89904-52422×2iNSP151..TAIW..V201605-201802

main89904-52430×2iNCP150..V;NCP150..IDN..G201304-201307

main89904-52431×2iNCP150..5F..GEN..G201308-201603

LATIN AMERICA SPEC&WIRELESS DOOR LOCK-WITH(TRANSMITTER 1)

main89904-52432×2iNSP150,151..GEN..G201604-201709

LATIN AMERICA SPEC&WIRELESS DOOR LOCK-WITH(TRANSMITTER 1)

sub89904-52433

main89904-0D180×2iNSP150,151..GCC..G..A201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main89904-0D310×2iNSP150,151..GCC..G..C201801-202207

G-HI PACKAGE, WITH(CRUISE CONTROL)

main89904-52491×2iNCP15#..GCC..G..C201308-201609

G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main89904-52492×2iNSP150,151..GCC..G201604-201712

G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main89904-52501×2iNCP15#..GCC..G..C201308-201609

JORDAN SPEC&G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)

main89904-52502×2iNSP150,151..GCC..G201604-201712

JORDAN SPEC&G-HIGH PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)

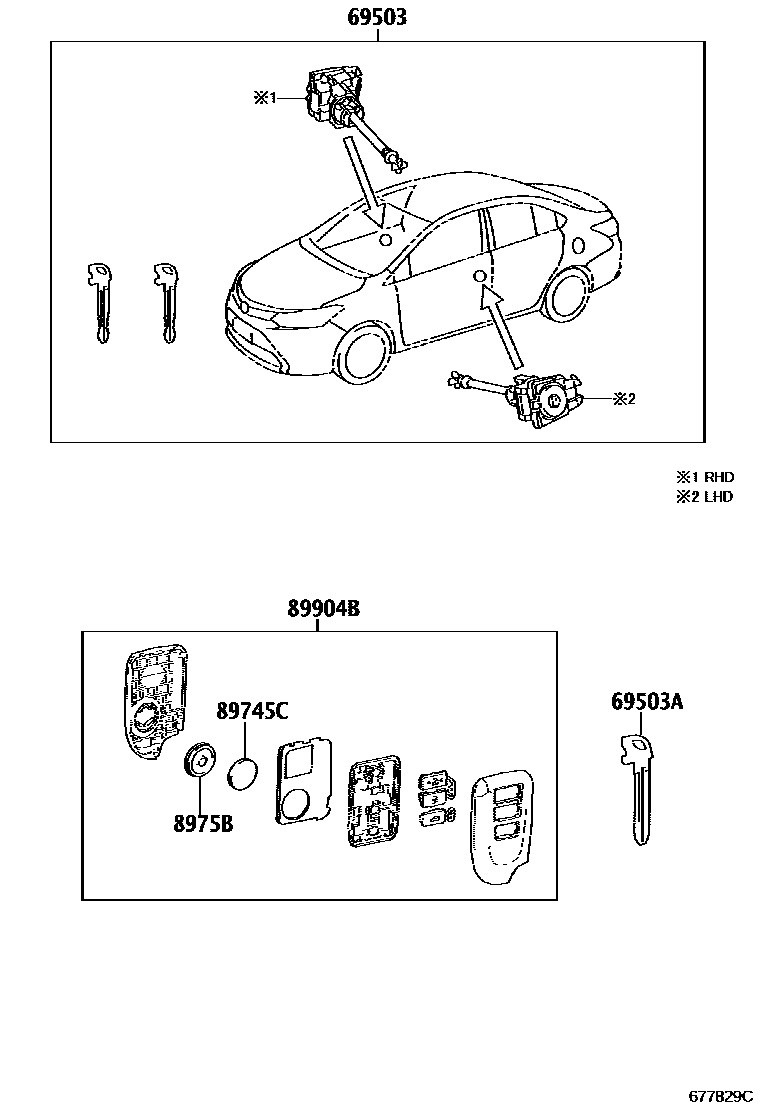

5 parts on this diagram · 6 diagrams in section
