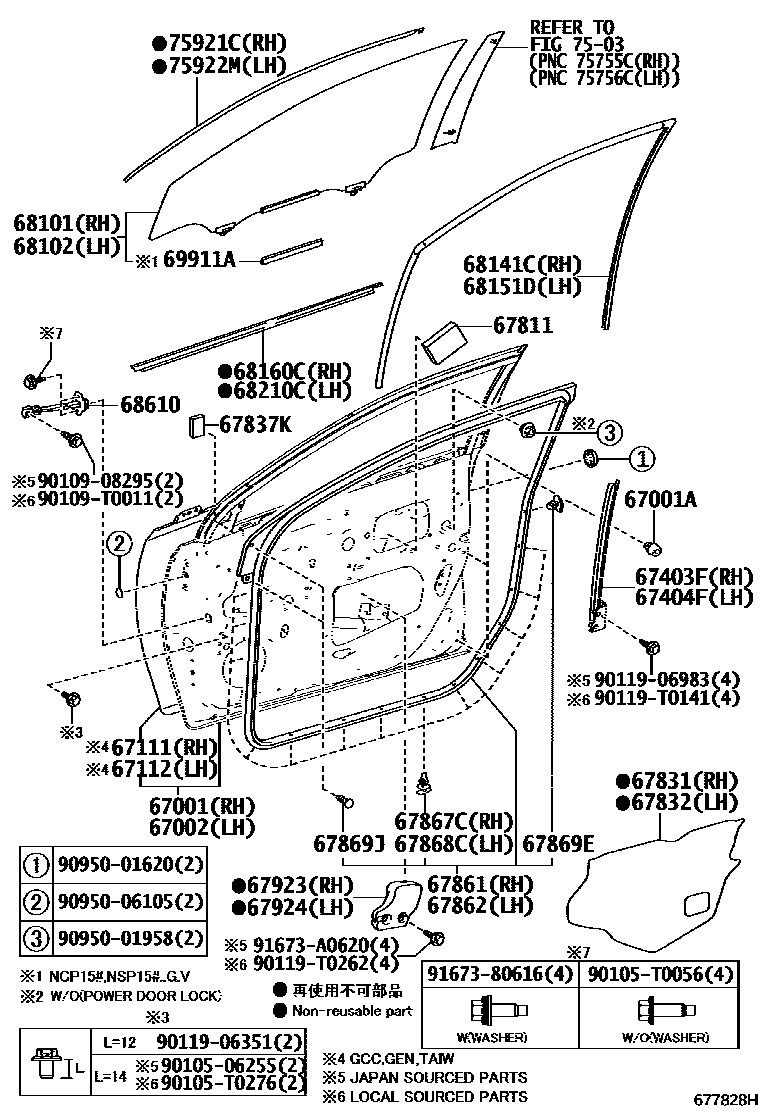

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0005 1DOOR PANEL 0011 1DOOR PANEL 0012 1DOOR TRIM 0016 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0D250iNSP150,151..GEN201304-201712

main67001-0D290iNSP151..TH..G..C201312-201712

sub67001-0D250

main67001-0D340iNSP151..TAIW201404-201802

main67001-0D360iNCP150..MA201310-201812

sub67001-0D250

main67001-0D390iNSP150,151..PH201404-201807

sub67001-0D250

main67001-0D430iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)201708-202207

main67001-0D440iNSP151..MA201901-202011

main67001-0D450iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main67001-0D460iNSP150,151..D201807-201910

main67001-0D470iNSP151..F201803-202101

main67001-0D480iNSP151..G201804-201908

sub67001-0D430

main67001-0D490iNSP151..H201807-201910

main67001-0D560iNSP150,151..I202003-202406

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iNCP15#..MA,VN201304-202406

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0D160iNCP15#..PH,VN201304-201712

main67002-0D300iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

sub67002-0D160

main67002-0D350iNSP151..TAIW201404-201802

main67002-0D370iNCP150..MA201310-201812

sub67002-0D160

main67002-0D400iNSP150,151..PH201404-201807

sub67002-0D160

main67002-0D430iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202207

main67002-0D440iNSP151..MA201901-202011

main67002-0D450iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main67002-0D460iNSP150,151..D201807-201910

main67002-0D470iNSP151..F201803-202101

main67002-0D480iNSP151..G201804-201908

sub67002-0D430

main67002-0D490iNSP151..H201807-201910

main67002-0D560iNSP150,151..I202003-202406

67111PANEL, FRONT DOOR, OUTER RH

main67111-K0010iNCP15#,NSP150,151..(GCC,GEN,TAIW)..(B,C)201308-201802

main67111-K0030iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C201708-202406

67112PANEL, FRONT DOOR, OUTER LH

main67112-K0010iNCP15#,NSP150,151..(GCC,GEN,TAIW)..(B,C)201308-201802

main67112-K0030iNSP151..F201708-202406

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0D130iNCP15#..(GCC,GEN,TH)..B201304-202406

main67403-0D150iNSP151..TAIW201404-202101

main67403-0D160iNCP15#..C201312-202207

main67403-0D200iNSP151..G201804-201908

main67403-0D210iNSP151..H201807-201910

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0D130iNCP150..IDN..B201304-202406

main67404-0D150iNSP151..F201404-202101

main67404-0D160iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main67404-0D200iNSP151..G201804-201908

main67404-0D210iNSP151..H201807-201910

67811PAD, FRONT DOOR SILENCER

main67811-02380iNSP151..H201807-201910

main67811-0D010iNCP15#..(GCC,GEN,TH)..B201304-202406

main67811-0D120iNSP151..G201804-201908

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0D260iNSP150..VN201304-201812

main67831-0D280iNCP150..TAIW..D201404-201604

main67831-0D290iNSP150..PH..D201307-201806

main67831-0D300iNCP15#..D..C201312-201712

main67831-0D310iNSP150..RHD;NSP151..CVT..GEN;NSP151..5F..GEN..(G,R);NSP150..LHD..GEN..(G,R);NSP150..LHD..CVT..GEN..D201304-201812

main67831-0D320iNCP150..TAIW..(R,V)201404-201802

main67831-0D330iNSP150,151..PH..(G,R)201307-201806

main67831-0D360iNCP15#..(G,R)..C201312-201712

main67831-0D430iNSP152..HTWC;NSP151..(G,R)..A;NSP150..5F..R..A;NSP150..CVT..(G,R)..A201710-202207

main67831-0D440iNSP150,151..(G,R)..C201801-202207

main67831-0D450iNSP150,151..(G,R)..D201807-201910

main67831-0D460iNSP151..(R,V)..F201803-202101

main67831-0D470iNSP151..D..G201804-201908

main67831-0D480iNSP151..D..H201807-201910

main67831-0D490iNSP15#..(G,R)..A201708-201902

main67831-0D500iNSP150,151..(G,R)..C201801-201902

main67831-0D510iNSP150,151..(G,R)..D201807-201902

main67831-0D520iNSP151..(R,V)..F201803-201902

main67831-0D530iNSP151..(G,R,V)..G201804-201902

main67831-0D540iNSP151..(G,R,V)..H201807-201910

main67831-0D550iNSP150..E201808-201912

main67831-0D560iNSP151..E201808-201902

main67831-0D610iNSP150,151..I202003-202406

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0D160iNSP150,151..5F..GEN..D201304-201812

main67832-0D180iNCP150..TAIW..D201404-201604

main67832-0D190iNCP151..PH..D201307-201806

main67832-0D200iNSP150,151..5F..D..C201312-201712

main67832-0D210iNSP151..VN201304-201812

main67832-0D220iNCP150..TAIW..(R,V)201404-201802

main67832-0D230iNSP150,151..PH..(G,R)201307-201806

main67832-0D300iNSP150..5F..GCC..D..A201710-202207

main67832-0D310iNSP151..5F..D..C;NSP150..CVT..D..C201801-202207

main67832-0D320iNSP150..D..D201807-201910

main67832-0D330iNSP151..D..F201803-202101

main67832-0D340iNSP151..D..G201804-201908

main67832-0D350iNSP151..D..H201807-201910

main67832-0D360iNSP151..TH..G..C201312-201712

main67832-0D370iNSP15#..(G,R)..A201708-201902

main67832-0D380iNSP150,151..(G,R)..C201801-201902

main67832-0D390iNSP150,151..(G,R)..D201807-201902

main67832-0D400iNSP151..(R,V)..F201803-201902

main67832-0D410iNSP151..(G,R,V)..G201804-201902

main67832-0D420iNSP151..(G,R,V)..H201807-201910

main67832-0D430iNSP151..E201808-201912

main67832-0D440iNSP151..E201808-201902

main67832-0D610iNSP150,151..I202003-202406

67837KSEAL, FRONT DOOR VENT

main67481-0D030iNCP150..TAIW201304-202406

main67481-0D070iNSP151..H201807-201910

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0D150iNCP150..IDN..B201304-202207

main67861-0D170iNCP150..TAIW201404-202101

main67861-0D180iNSP151..MA201310-202011

main67861-0D190iNSP150,151..D201307-201910

main67861-0D200iNSP151..G201804-201908

main67861-0D210iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main67861-0D230iNSP151..H201807-201910

main67861-0D250iNSP150,151..I202003-202406

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0D150iNSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)201304-202207

main67862-0D170iNCP150..TAIW201404-202101

main67862-0D180iNSP151..MA201310-202011

main67862-0D190iNCP15#..PH201307-201910

main67862-0D200iNSP151..G201804-201908

main67862-0D210iNSP151..TH..G..C201312-202207

main67862-0D230iNSP151..H201807-201910

main67862-0D250iNSP150,151..I202003-202406

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iNSP150,151..PH201304-202406

main67868-0D050iNSP150..5F..D..C;NSP151..CVT..D..C201708-202207

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iNCP15#..(GCC,GEN,TH)..B201304-202406

main67868-0D060iNSP150,151..C201708-202207

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034iNCP15#..PH201304-202406

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iNCP150..IDN..B201304-202406

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0D070iNSP151..TH..B201304-201807

main67923-0D090iNSP151..TAIW201404-201802

main67923-0D100iNCP150..MA201310-201812

main67923-0D110iNCP15#..C201312-201712

main67923-0D160iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202406

main67923-0D170iNSP151..MA201901-202011

main67923-0D180iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main67923-0D190iNSP151..F201803-202101

main67923-0D200iNSP151..G201804-201908

main67923-0D210iNSP151..H201807-201910

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0D060iNSP150,151..PH201304-201807

main67924-0D100iNCP150..TAIW201404-201802

main67924-0D110iNCP150..MA201310-201812

main67924-0D120iNSP151..TH..G..C201312-201712

main67924-0D170iNSP152..HTWC;NSP150,151..D,E,I201708-202406

main67924-0D180iNSP151..MA201901-202011

main67924-0D190iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main67924-0D200iNSP151..F201803-202101

main67924-0D210iNSP151..G201804-201908

main67924-0D220iNSP151..H201807-201910

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-0D170iNSP150..5F..C;NSP151..RHD..(D,R)..C201312-202207

main68110-0D240iNCP150..IDN..(D,R)..B201304-201708

sub68110-0D241

main68110-0D241iNSP150,151..GEN..(D,R)201708-202207

main68110-0D250iNSP151..D..F201404-202101

main68110-0D260iNSP151..MA..D201310-202011

main68110-0D270iNCP151..PH201307-201910

main68110-0D290iNSP15#..(GEN,TH,VN)..(G,V)..B201304-201707

sub68110-0D291

main68110-0D291iNSP150..5F..R..A;NSP151..(GEN,TH,VN)..(G,R)..(A,E);NSP150,152..CVT..(GEN,TH)..(G,R)..A201708-202207

main68110-0D310iNSP151..MA..(G,V)201310-202011

main68110-0D320iNSP151..PH201307-201910

main68110-0D350iNSP151..TAIW..V201404-202101

main68110-0D370iNSP150..5F..R..C;NSP151..IDN..(G,R)201312-202207

main68110-0D380iNSP150..CVT..D..C201610-202207

main68110-0D390iNSP15#..CVT..GCC..(D,R)..B201604-201707

sub68110-0D391

main68110-0D391iNSP150..CVT..GCC..D..A201708-202207

main68110-0D400iNSP15#..GCC..G..B201604-201707

sub68110-0D401

main68110-0D401iNSP150,151..CVT..GCC..(G,R)..A201708-202207

main68110-0D470iNSP151..D..H201807-201910

sub68110-0D471

main68110-0D480iNSP151..(G,R,V)..H201807-201910

sub68110-0D481

main68110-0D490iNSP151..D..G201804-201908

main68110-0D510iNSP151..(G,R,V)..G201804-201908

main68110-0D520iNSP150,151..GCC..G..C201610-202207

main68110-0D540iNSP150,151..I202003-202310

main68110-0D550iNSP150,151..I202310-202406

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-0D170iNCP15#..(D,R)..C201312-202207

main68120-0D240iNCP15#..5F..VN201304-201708

sub68120-0D241

main68120-0D241iNSP150..5F..GCC..B201708-202207

main68120-0D250iNSP151..D..F201404-202101

main68120-0D260iNCP150..MA..(D,R)201310-202011

main68120-0D270iNSP150..PH201307-201910

main68120-0D290iNCP15#..(GCC,GEN,TH)..(G,V)..B201304-201707

sub68120-0D291

main68120-0D291iNSP150..5F..R..A;NSP151..(GEN,TH,VN)..(G,R)..(A,E);NSP150,152..CVT..(GEN,TH)..(G,R)..A201708-202207

main68120-0D310iNSP151..MA..(G,V)201310-202011

main68120-0D320iNCP150..PH201307-201910

main68120-0D350iNCP150..TAIW..V201404-202101

main68120-0D370iNSP150..5F..R..C;NSP151..IDN..(G,R)201312-202207

main68120-0D380iNSP150..CVT..D..C201610-202207

main68120-0D390iNSP15#..CVT..GCC..(D,R)..B201604-201707

sub68120-0D391

main68120-0D391iNSP150..CVT..GCC..D..A201708-202207

main68120-0D400iNSP15#..GCC..G..B201604-201707

sub68120-0D401

main68120-0D401iNSP150,151..GCC..G..B201708-202207

main68120-0D470iNSP151..D..H201807-201910

sub68120-0D471

main68120-0D480iNSP151..(G,R,V)..H201807-201910

sub68120-0D481

main68120-0D490iNSP151..D..G201804-201908

sub68120-0D510

main68120-0D510iNSP151..(G,R,V)..G201804-201908

main68120-0D520iNSP150,151..GCC..G..C201610-202207

main68120-0D540iNSP150,151..I202003-202310

main68120-0D550iNSP150,151..I202310-202406

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D190iNSP151..TH..B201304-202406

main68141-0D220iNSP151..F201404-202101

main68141-0D230iNSP151..MA201310-202011

main68141-0D240iNSP151..G201804-201908

main68141-0D250iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main68141-0D320iNSP151..H201807-201910

68151DRUN, FRONT DOOR GLASS, LH

main68151-0D180iNSP150..5F..G..A;NSP150..5F..GCC..D..A201304-202406

main68151-0D200iNSP151..F201404-202101

main68151-0D210iNSP151..MA201310-202011

main68151-0D220iNSP151..G201804-201908

main68151-0D230iNSP151..TH..G..C201312-202207

main68151-0D280iNSP151..H201807-201910

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0D200iNCP150..IDN..B201304-202406

main68160-0D220iNSP151..F201404-202101

main68160-0D240iNSP150,151..PH201307-201910

main68160-0D251iNSP151..G201804-201908

main68160-0D260iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main68160-0D340iNSP151..H201807-201910

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0D200iNCP15#..MA,VN201304-202406

main68210-0D220iNSP151..F201404-202101

main68210-0D240iNSP150,151..PH201307-201910

main68210-0D251iNSP151..G201804-201908

main68210-0D260iNCP15#..C201312-202207

main68210-0D340iNSP151..H201807-201910

68610CHECK ASSY, FRONT DOOR

main68610-0D130iNCP15#..B201304-201404

sub68610-0D131

main68610-0D131iNCP15#..(GCC,GEN,TH)..B201405-202406

main68610-0D161iNSP151..TAIW201404-202101

main68610-0D170iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main68610-0D210iNSP151..G201804-201908

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-0D040iNSP150,151..GCC..G..B201304-202207

main69911-0D060iNSP150,151..(G,R)..C201312-202207

main69911-0D080iNSP151..(G,R,V)..H201807-201910

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0D110iNCP15#..VN201304-202406

main75921-0D130iNSP151..F201404-202101

main75921-0D140iNCP150..MA201310-202011

main75921-0D150iNCP15#..PH201307-201606

BLACK OUT TAPE-WITHOUT

main75921-0D150iNSP150,151..PH201307-201806

LIMO PACKAGE

main75921-0D150iNSP150,151..D201807-201910

main75921-0D170iNSP150..CVT..D..C201801-202207

J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))

main75921-0D170iNCP15#..(G,R)..C;NCP150..TH..D..C201312-202207

main75921-0D210iNSP151..G201804-201908

main75921-0D220iNSP151..H201807-201910

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0D110iNSP151..A;NSP152..HTWCB;NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A201304-202406

main75922-0D130iNCP150..TAIW201404-202101

main75922-0D140iNCP150..MA201310-202011

main75922-0D150iNSP150,151..PH201307-201806

LIMO PACKAGE

main75922-0D150iNCP15#..PH201307-201606

BLACK OUT TAPE-WITHOUT

main75922-0D150iNSP150,151..D201807-201910

main75922-0D170iNSP151..R..C;NSP150..(G,R)..C;NSP151..TH..D..C;NSP151..(GCC,IDN)..G..C201312-202207

main75922-0D170iNSP150,151..(G,R)..C201801-202207

J-HI PACKAGE(DOOR OUTSIDE HANDLE(PAINT))

main75922-0D210iNSP151..G201804-201908

main75922-0D220iNSP151..H201807-201910

9010506255

main90105-06255

90105T0056

main90105-T0056

90105T0276

main90105-T0276

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906351

main90119-06351

9011906983

main90119-06983

90119T0141

main90119-T0141

90119T0262

main90119-T0262

9095001620

main90950-01620

9095001958

main90950-01958

9095006105

main90950-06105

9167380616

main91673-80616

91673A0620

main91673-A0620

44 parts on this diagram · 5 diagrams in section
