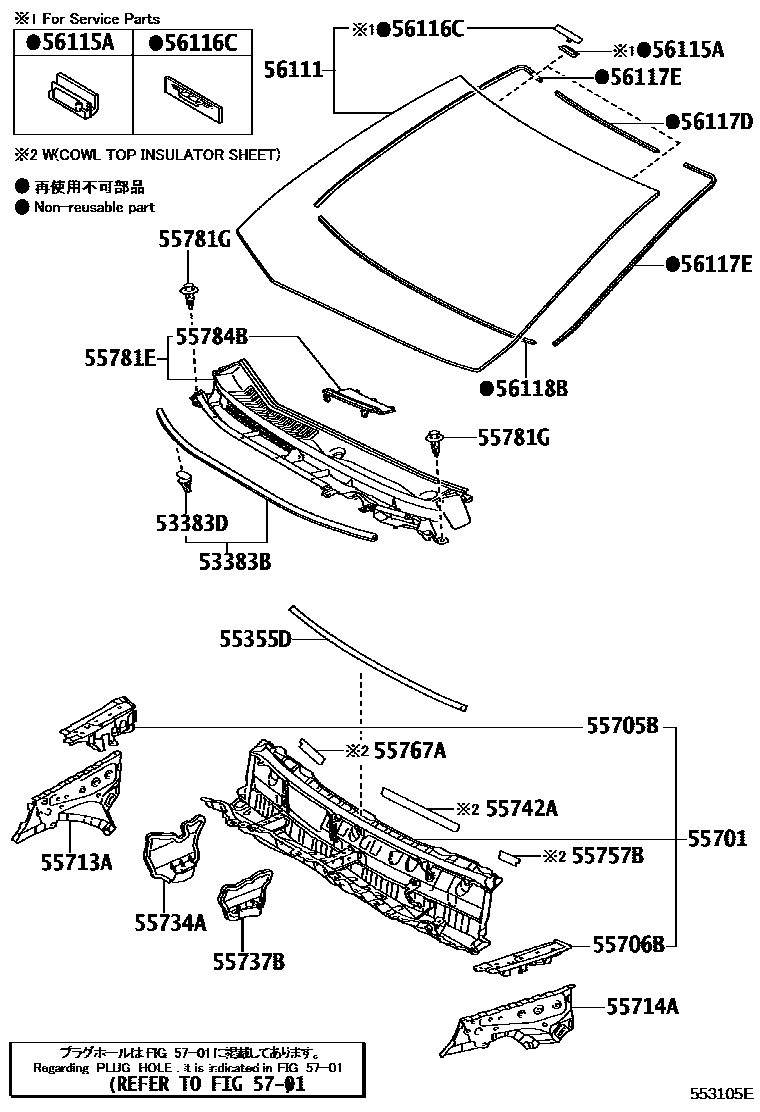

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1 0004 1

53383BSEAL, HOOD TO COWL TOP

main53383-0D150iNSP150,151..GCC..B201304-202207

main53383-0D170iNSP151..TAIW201404-202101

main53383-0D180iNCP150..MA201310-202011

main53383-0D190iNSP150,151..PH201307-201910

main53383-0D200iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201312-202207

main53383-0D220iNSP151..G201804-201908

main53383-0D230iNSP151..H201807-201910

main53383-0D250iNSP150,151..I202003-202406

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0D070iNCP150..IDN..B201304-202406

main67867-0D130iNSP151..TH..G..C201312-202207

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-0D160iNSP150,151..VN201304-202207

main55355-0D240iNSP151..TAIW201404-201802

main55355-0D260iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201312-202207

main55355-0D380iNSP151..G201804-201908

main55355-0D390iNSP151..H201807-201910

main55355-0D480iNSP150..5F..G..A201708-202406

main55355-0D490iNSP151..CVT..D..C201801-202207

main55355-0D500iNSP151..F201803-202101

55701PANEL SUB-ASSY, COWL

main55700-0D210iNCP15#..PH201307-201701

sub55700-0D211

main55700-0D211iNSP150,151..VN201702-201807

main55700-0D220iNCP15#..GCC..B201308-201701

sub55700-0D221

main55700-0D221iNSP150,151..GCC..B201702-201712

main55700-0D230iNCP150..IDN..B201304-201701

sub55700-0D231

main55700-0D231iNSP150..RHD201702-201812

main55700-0D260iNCP15#..GCC..C201402-201712

sub55700-0D261

main55700-0D261iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main55700-0D270iNCP150..RHD..C201312-201712

sub55700-0D271

main55700-0D271iNSP151..CVT..D..C201801-202207

main55700-0D290iNSP151..TAIW201404-201701

sub55700-0D291

main55700-0D291iNSP151..TAIW201702-202101

main55700-0D311iNSP150,151..LHD..(GEN,VN)..(A,E)201710-202207

main55700-0D321iNSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..A201801-202207

main55700-0D331iNSP150..5F..G..A201708-202207

main55700-0D350iNSP15#..PH201407-201701

sub55700-0D351

main55700-0D351iNSP150,151..D201702-201910

main55700-0D400iNSP151..G201804-201908

main55700-0D410iNSP151..H201807-201910

main55700-0D450iNSP151..MA201901-202011

main55700-0D460iNSP150,151..I202003-202406

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0D120iNSP150,151..PH201304-202207

main55705-0D140iNSP151..TH..G..C201312-202207

main55705-0D150iNCP150..TAIW201404-202101

main55705-0D170iNSP151..G201804-201908

main55705-0D180iNSP151..H201807-201910

main55705-0D200iNSP150,151..I202003-202406

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0D120iNSP151..TH..B201304-202207

main55706-0D140iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main55706-0D150iNCP150..TAIW201404-202101

main55706-0D170iNSP151..G201804-201908

main55706-0D180iNSP151..H201807-201910

main55706-0D200iNSP150,151..I202003-202406

55713APANEL, COWL TOP SIDE, RH

main55713-0D110iNCP15#..PH201304-201701

sub55713-0D190

main55713-0D130iNSP151..TH..G..C201312-201712

main55713-0D140iNSP151..TAIW201404-201802

main55713-0D160iNSP151..G201804-201908

main55713-0D170iNSP151..H201807-201910

main55713-0D190iNSP150,151..GCC..B201702-202207

main55713-0D200iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main55713-0D210iNSP151..F201803-202101

main55713-0D220iNSP150,151..E201808-201912

main55713-0D250iNSP151..MA201901-202011

main55713-0D260iNSP150,151..I202003-202406

55714APANEL, COWL TOP SIDE, LH

main55714-0D110iNCP15#..(GCC,GEN,TH)..B201304-201701

sub55714-0D190

main55714-0D130iNCP15#..C201312-201712

main55714-0D140iNSP151..TAIW201404-201802

main55714-0D160iNSP151..G201804-201908

main55714-0D170iNSP151..H201807-201910

main55714-0D190iNSP151,152..A,D;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH)..(D,R)..(A,D)201702-202207

main55714-0D200iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main55714-0D210iNSP151..F201803-202101

main55714-0D220iNSP150,151..E201808-201912

main55714-0D250iNSP151..MA201901-202011

main55714-0D260iNSP150,151..I202003-202406

55734APLATE, WATER GUARD, RH

main55734-0D070iNCP15#..PH201307-202207

main55734-0D090iNSP151..F201404-202101

main55734-0D110iNSP150..5F..D..C201402-202207

main55734-0D130iNSP151..H201807-201910

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0D170iNSP151..TH..B201304-202406

main55737-0D180iNCP15#..PH201307-202207

main55737-0D200iNCP150..MA201310-202011

main55737-0D210iNSP151..F201404-202101

main55737-0D220iNSP151..5F..D..C;NSP151..IDN..(G,R)201312-202207

main55737-0D230iNSP150..5F..D..C201402-202207

main55737-0D280iNSP151..G201804-201908

main55737-0D290iNSP151..H201807-201910

55742ASHEET, COWL TOP INSULATOR

main55767-0D020iNSP151..CVT..VN201604-201812

main55767-0D050iNSP151..TAIW201605-201802

main55767-0D080iNSP150..CVT..C;NSP151..CVT..(D,R)..C;NSP151..CVT..(GCC,IDN)..G..C201610-201712

55757BSHEET COWL TOP INSULATOR

main55767-0D030iNSP151..CVT..VN201604-201812

main55767-0D060iNSP151..TAIW201605-201802

main55767-0D090iNSP151..TH..G..C201610-201712

55767ASHEET, COWL TOP INSULATOR, NO.5

main55767-0D010iNSP150,151..CVT..GCC..B201604-201812

main55767-0D040iNSP151..TAIW201605-201802

main55767-0D070iNSP151..TH..G..C201610-201712

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-0D270iNCP15#..RHD..(GEN,TH)..B201304-201709

main55708-0D272iNSP15#..RHD..CVT..A201708-202207

main55708-0D280iNSP150,151..VN201307-201807

main55708-0D282iNSP150..5F..GCC..D..A201710-202207

main55708-0D310iNSP151..TAIW201404-201802

main55708-0D312iNSP151..F201803-202101

main55708-0D320iNSP151..MA201310-201812

main55708-0D322iNSP151..MA201901-202011

main55708-0D340iNSP150,151..GCC..C201402-201712

main55708-0D342iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

main55708-0D350iNSP151..TH..G..C201312-201712

main55708-0D352iNSP151..CVT..D..C201801-202207

main55708-0D421iNSP151..G201804-201908

main55708-0D430iNSP151..H201807-201910

main55708-0D490iNSP150,151..D201807-201910

main55708-0D500iNSP150,151..I202003-202406

55781GCLIP, COWL TOP VENTILATOR LOUVER

main52161-0K040iNCP150..IDN..B¥120201304-202406

main52161-0K040iNSP151..G,H¥120201804-201910

(L)

main52161-0K060iNCP150..TAIW201404-202101

main52161-16010iNSP151..G,H¥120201804-201910

(J)

sub52161-0K040¥120

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-0D070iNCP15#..RHD..(GEN,TH)..B201304-202207

main55784-0D080iNSP151..LHD..(A,E);NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(A,E)201307-202207

main55784-0D100iNSP151..F201404-202101

main55784-0D110iNSP151..MA201310-202011

main55784-0D130iNSP150,151..GCC..C201402-202207

main55784-0D140iNSP151..IDN..G;NSP151..RHD..(D,R)..C201312-202207

main55784-0D160iNSP151..G201804-201908

main55784-0D170iNSP151..H201807-201910

main55784-0D260iNSP150,151..D201807-201910

main55784-0D270iNSP150,151..I202003-202406

56111GLASS, WINDSHIELD

main56101-0D300iNSP150..PH201307-201910

main56101-0D310iNSP150,151..(G,R)..D201307-201910

main56101-0D320iNSP151..D..F201404-202101

main56101-0D330iNSP151..(R,V)..F201404-202101

main56101-0D360iNCP15#..GCC..(D,R)..B201308-202108

main56101-0D370iNSP150..5F..GCC..R..A201308-202207

main56101-0D380iNSP150,151..LHD..(GEN,VN)..D..(A,E)201308-202207

main56101-0D390iNCP150..VN..G201308-202207

main56101-0D400iNSP15#..RHD..(GEN,TH)..(D,R)..B201304-201707

sub56101-0D401

main56101-0D401iNSP150..RHD..(D,R)201708-202310

main56101-0D410iNCP150..IDN..G..B201304-201707

sub56101-0D411

main56101-0D411iNSP151..I;NSP152..HTWC201708-202310

main56101-0D420iNCP150..MA..(D,R)201310-202011

main56101-0D430iNSP151..MA..(G,V)201310-202011

main56101-0D460iNSP151..5F..D..C201312-202207

main56101-0D470iNSP151..TH..G..C201312-202207

main56101-0D480iNSP150..5F..D..C201402-202108

main56101-0D490iNCP15#..GCC..G..C201402-202207

main56101-0D540iNCP150..TH..(D,R)..B201410-201603

sub56101-0D541

main56101-0D550iNCP150..TH..(G,V)..B201410-201603

sub56101-0D551

main56101-0D710iNSP151..MA..(G,V)201901-202011

main56101-0D720iNSP151..D..G201804-201908

main56101-0D730iNSP151..(G,V)..G201804-201908

main56101-0D740iNSP151..D..H201807-201910

sub56101-0D741

main56101-0D760iNSP151..AGT..R201807-201910

sub56101-0D761

main56101-0D770iNSP151..AGT..G;NSP151..(BZ,GEN)..(G,R)..H201807-201910

sub56101-0D771

main56101-0D780iNSP151..V..H201807-201910

sub56101-0D781

main56101-0D850iNSP150..CVT..GCC..D..A201604-202207

main56101-0D860iNSP150,151..GCC..G..B201604-202207

main56101-0D880iNSP150..CVT..D..C201610-202207

main56101-0D890iNSP150,151..CVT..GCC..(G,R)..C201610-202207

main56101-0DA30iNSP151..R..G201804-201908

sub56101-0D720

main56101-0DG90iNSP150..I202310-202406

main56101-0DJ00iNSP151..I202310-202406

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNSP150,151..PH¥130201304-202406

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C¥120201304-202406

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-0D160iNCP150..IDN..B201304-202406

L=549

main56117-0D160iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

L=549,ECO PACKAGE

main56117-0D220iNCP15#..PH201307-201910

L=549

main56117-0D250iNCP15#..VN201403-201912

L=549

main56117-0D300iNSP151..F201404-202101

*D,L=549

main56117-0D310iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

L=549

main56117-0D450iNSP151..G201804-201908

L=549

main56117-50130iNSP151..H¥1,610201807-201910

L=549

56117EDAM, WINDOW GLASS ADHESIVE

main56117-0D170iNSP152..HTWC;NSP150,151..MA,PKN201304-202406

L=915

main56117-0D170iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

L=915,ECO PACKAGE

main56117-0D230iNCP15#..PH201307-201910

L=915

main56117-0D260iNCP15#..VN201403-201912

L=915

main56117-0D300iNSP151..F201404-202101

*D,L=915

main56117-0D320iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

L=915

main56117-0D460iNSP151..G201804-201908

L=915

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-0D180iNSP152201304-202406

L=1182

main56117-0D180iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202207

L=1182,ECO PACKAGE

main56117-0D240iNSP150,151..D201307-201910

L=1182

main56117-0D270iNCP15#..VN201403-201912

L=1182

main56117-0D300iNSP151..TAIW201404-202101

L=1182

main56117-0D330iNSP151..TH..G..C201312-202207

L=1182

main56117-0D470iNSP151..G201804-201908

L=1182

5701

23 parts on this diagram · 4 diagrams in section
