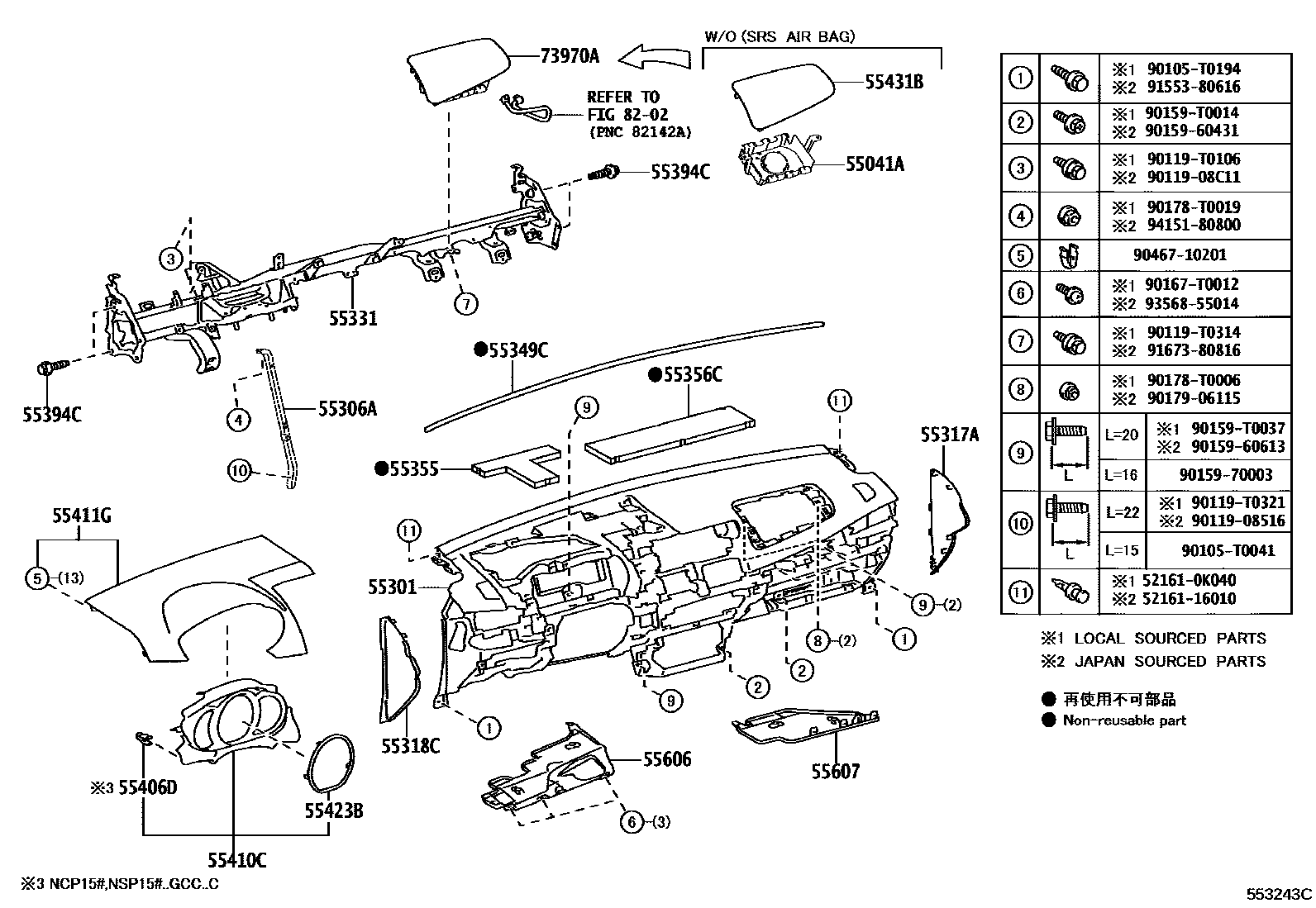

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0003 1 0006 1 0007 1 0012 1 0015 1DRIVER SIDE 0017 1DRIVER SIDE 0020 1DRIVER SIDE 0021 1DRIVER SIDE 0026 1DRIVER SIDE 0029 1DRIVER SIDE 0030 1CENTER 0032 1CENTER 0035 1CENTER 0036 1CENTER 0041 1CENTER 0044 1CENTER 0045 1PASSENGER SIDE 0047 1PASSENGER SIDE 0050 1PASSENGER SIDE 0051 1PASSENGER SIDE 0056 1PASSENGER SIDE 0059 1PASSENGER SIDE

55041ABRACKET SUB-ASSY, AIRBAG PASSENGER MOUNTING

main55041-0D070iNCP151..D..C201308-201609

55301PANEL SUB-ASSY, INSTRUMENT

main55310-0D080-C0iNCP150..(GCC,GEN,PH,VN)..B;NCP151..LHD..(GCC,GEN,PH)..B201307-201507

BLACK,TRIM0#,2#

main55310-0D081-C0iNCP15#..PH201508-201606

BLACK,TRIM2#

main55310-0D090-C0iNCP150..IDN..(G,R)..B201304-201506

BLACK,TRIM2#

main55310-0D091-C0iNCP151..RHD;NCP150..TH..(G,R)..B201508-201603

BLACK,TRIM2#

main55310-0D110-C0iNCP150..TAIW..(D,V)201404-201507

BLACK,TRIM2#

main55310-0D111-C0iNCP150..TAIW..(D,V)201508-201604

BLACK,TRIM2#

main55310-0D120-C0iNCP150..MA..V201310-201507

BLACK,TRIM2#

main55310-0D121-C0iNCP150..MA201508-201607

BLACK,TRIM2#

main55310-0D122-C0iNSP151..MA201608-201812

BLACK,TRIM2#

main55310-0D130-C0iNCP15#..GCC..C201402-201509

BLACK,TRIM0#,2#

main55310-0D131-C0iNSP150,151..GCC..C201510-201712

BLACK,TRIM0#,2#

main55310-0D140-C0iNCP150..IDN..D..C201312-201509

BLACK,TRIM2#

main55310-0D141-C0iNSP151..TH..R..C201510-201712

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D220iNCP150..TAIW201307-201604

main55306-0D230iNSP151..TH..B201304

main55306-0D260iNSP150,151..GCC..C201402-201712

main55306-0D270iNSP151..IDN..G;NSP151..RHD..(D,R)..C201312-201712

main55306-0D390iNSP150..5F..G..A201708-202108

main55306-0D400iNSP151..LHD..(A,D);NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,PH)..(A,D)201710-202207

main55306-0D410iNSP151..CVT..D..C201801-202108

main55306-0D420iNSP150..5F..D..C201801-202108

main55306-0D430iNSP151..G201804-201908

main55306-0D440iNSP151..H201807-201910

main55306-0D450iNSP151..TAIW201605-201802

main55306-0D460iNSP150,151..E201808-201912

main55306-0D470iNSP151..F201803-202101

main55306-0D480iNSP150,151..I202003-202406

55317APANEL, INSTRUMENT SIDE, RH

main55317-0D090-C0iNSP150..PH201403-201806

BLACK,TRIM2#

main55317-0D110-C0iNSP151..TH..(D,V)..B201304

BLACK,TRIM2#

main55317-0D120-C0iNCP150..TAIW..(D,V)201404-201604

BLACK,TRIM2#

main55317-0D130-C0iNCP15#..GCC..C201402-201609

BLACK,TRIM0#,2#

main55317-0D140-C0iNSP151..TH..R..C201312-201712

BLACK,TRIM2#

main55317-0D150-C0iNSP151..MA201310-201812

BLACK,TRIM2#

main55317-0D260-C0iNSP150..5F..G..A201708-202108

BLACK,TRIM0#,2#

main55317-0D280-C0iNSP151..MA201901-202011

BLACK,TRIM2#

main55317-0D290-C0iNSP151..5F..D..C201801-202207

BLACK,TRIM2#

main55317-0D330-C0iNSP151..G201804-201908

BLACK,TRIM0#

main55317-0D350-C0iNSP150,151..I202003-202406

BLACK,TRIM0#

main55318-0D220-C0iNSP151..E201808-201912

BLACK,TRIM2#

main55318-0D270-C0iNSP150..5F..D..C201801-202108

BLACK,TRIM0#,2#

main55318-0D280-C0iNSP151..(D,V)..F201803-202101

BLACK,TRIM2#

main55318-0D300-C0iNSP151..H201807-201910

BLACK,TRIM2#

main55318-0D310-C0iNSP150,151..D201807-201910

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-0D270-C0iNSP151..E201808-201912

BLACK,TRIM2#

main55317-0D300-C0iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

BLACK,TRIM0#,2#

main55317-0D310-C0iNSP151..H201807-201910

BLACK,TRIM2#

main55317-0D320-C0iNSP151..(D,V)..F201803-202101

BLACK,TRIM2#

main55317-0D340-C0iNSP150,151..D201807-201910

BLACK,TRIM2#

main55318-0D070-C0iNSP150,151..LHD..GEN201307-201709

BLACK,TRIM0#,2#

main55318-0D090-C0iNSP151..TH..(D,V)..B201304

BLACK,TRIM2#

main55318-0D100-C0iNSP151..TAIW..R201404-201802

BLACK,TRIM2#

main55318-0D110-C0iNCP15#..GCC..C201402-201609

BLACK,TRIM0#,2#

main55318-0D120-C0iNCP150..IDN..D..C201312-201609

BLACK,TRIM2#

main55318-0D130-C0iNCP150..MA..V201310-201608

BLACK,TRIM2#

main55318-0D200-C0iNSP150..5F..G..A201708-202108

BLACK,TRIM0#,2#

main55318-0D240-C0iNSP151..MA201901-202011

BLACK,TRIM2#

main55318-0D260-C0iNSP151..IDN..G201801-202207

BLACK,TRIM2#

main55318-0D290-C0iNSP151..G201804-201908

BLACK,TRIM0#

main55318-0D330-C0iNSP150,151..I202003-202406

BLACK,TRIM0#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D350iNCP150..MA201310-201608

main55330-0D370iNCP150..TAIW201404-201604

main55330-0D380iNCP15#..VN201403-201608

main55330-0D480iNCP15#..5F..GEN..D201308-201603

LATIN AMERICA SPEC&SRS AIR BAG-WITHOUT

main55330-0D490iNCP15#..RHD..(GEN,IDN,TH)..B201304-201603

main55330-0D510iNCP15#..GCC..C201402-201509

main55330-0D520iNCP150..RHD..C201312-201509

main55330-0D530iNCP15#..PH201307-201606

main55330-0D660iNSP150,151..VN201608-201807

main55330-0D670iNSP150,151..RHD..(GEN,TH)..B201604

main55330-0D680iNSP150,151..LHD..(GCC,GEN)..B201604-201712

main55330-0D690iNSP151..MA201608-201812

main55330-0D700iNSP150,151..PH201607-201806

main55330-0D720iNSP151..TAIW201605-201802

main55330-0D750iNSP15#..RHD..A201708-202008

main55330-0D751iNSP15#..RHD..CVT..A202009-202207

main55330-0D760iNSP150..5F..GCC..D..A201710-202108

main55330-0D770iNSP151..MA201901-201912

main55330-0D771iNSP151..MA202001-202011

main55330-0D780iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main55330-0D790iNSP150..5F..D..C201801-202108

main55330-0D800iNSP150,151..D201807-201910

main55330-0D810iNSP151..F201803-202101

main55330-0D820iNSP151..G201804-201908

main55330-0D830iNSP151..H201807-201910

main55330-0D840iNCP15#,NSP150,151..GCC..C201509-201712

main55330-0D850iNCP150,NSP151..RHD..C201509-201712

main55330-0DA00iNSP150,151..E201808-201912

main55330-0DA10iNSP150,151..I202003-202406

main55330-0D360iNCP151..PH..D201307-201606

SRS AIR BAG-WITHOUT

55349CCUSHION, INSTRUMENT PANEL

main55349-0D170iNSP150,151..PH201307-201806

main55349-0D190iNSP151..TH..B201304

main55349-0D200iNCP150..TAIW201404-201604

main55349-0D210iNCP15#..GCC..C201402-201609

main55349-0D220iNCP150..RHD..C201312-201609

main55349-0D240iNSP152..HTWCB;NSP151..(GEN,TH)..A;NSP150..CVT..GEN..A;NSP150..LHD..5F..GEN..A201708-202207

main55349-0D260iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main55349-0D280iNSP151..F201803-202101

main55349-0D290iNSP151..G201804-201908

main55349-0D300iNSP151..H201807-201910

main55349-0D320iNSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..A201801-202207

main55349-0D340iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D170iNSP151..TH..B201304

main55355-0D230iNSP151..TAIW201404-201802

main55355-0D250iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-201712

main55355-0D280iNSP150,151..PH201307-201806

main55355-0D400iNSP151..E;NSP150..E,I;NSP152..HTWC;NSP151..MA,PKN201708-202406

main55355-0D410iNSP150,151..D201807-201910

main55355-0D420iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

main55355-0D430iNSP151..F201803-202101

main55355-0D440iNSP151..G201804-201908

main55355-0D460iNSP151..H201807-201910

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D160iNSP150,151..VN201304-201807

main55356-0D200iNCP150..TAIW201404-201604

main55356-0D210iNCP15#..C201312-201609

main55356-0D220iNSP150,151..PH201307-201806

55394CBOLT, INSTRUMENT PANEL

main55394-52010×4iNSP151..F201708-202101

55406DCLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)

main90467-10203×4iNCP150..TAIW201312-201604

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-0D070iNSP150,151..GCC..B201307-201712

main55410-0D080iNCP150..IDN..B201304-201506

main55410-0D100iNCP150..MA201310-201608

main55410-0D110iNSP151..TAIW201404-201802

main55410-0D120iNCP15#..GCC..C201402-201609

main55410-0D130iNCP150..RHD..C201312-201609

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55410-0D190-C0iNSP150..5F..G..A201708-202108

BLACK,TRIM0#,2#

main55410-0D200-C0iNSP150..5F..GCC..D..A201710-202108

BLACK,TRIM0#,2#

main55410-0D210-C0iNSP151..MA201901-202011

BLACK,TRIM2#

main55410-0D220-C0iNSP151..IDN..G201801-202207

BLACK,TRIM2#

main55410-0D230-C0iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201801-202207

BLACK,TRIM0#,2#

main55410-0D240-C0iNSP151..(D,V)..F201803-202101

BLACK,TRIM2#

main55410-0D250-C0iNSP151..G201804-201908

BLACK,TRIM0#

main55410-0D260-C0iNSP151..H201807-201910

BLACK,TRIM2#

main55410-0D270-C0iNSP150,151..I202003-202406

BLACK,TRIM0#

main55411-0D170-C0iNSP150..PH201403-201806

BLACK,TRIM2#

main55411-0D180-C0iNSP150..RHD201304-201709

BLACK,TRIM0#,2#

main55411-0D210-C0iNCP150..MA..V201310-201608

BLACK,TRIM2#

main55411-0D220-C0iNCP150..TAIW..(D,V)201404-201604

BLACK,TRIM2#

main55411-0D230-C0iNSP150,151..GCC..C201402-201712

BLACK,TRIM0#,2#

main55411-0D240-C0iNSP151..TH..R..C201312-201712

BLACK,TRIM2#

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-0D030iNSP150,151..GEN201304-201709

main55423-0D050iNSP151..MA201310-201812

main55423-0D070iNSP151..TH..G..C201312-201707

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55431-0D040-C0iNCP151..GCC..D..B201308-201603

BLACK,TRIM0#,2#

main55431-0D060-C0iNCP151..D..C201402-201609

BLACK,TRIM0#,2#

main55431-0D050-C0iNCP150..IDN..D..B201304-201506

SRS AIR BAG-WITHOUT,BLACK,TRIM2#

main55431-0D070-C0iNCP150..IDN..D..C201312-201609

SRS AIR BAG-WITHOUT,BLACK,TRIM2#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-0D090iNCP15#..LHD..(GCC,GEN,PH,VN)..B201307-201508

DRIVER SIDE

main55606-0D091iNSP150,151..PH201509-201806

DRIVER SIDE

main55606-0D100iNCP150..IDN..B201304-201506

DRIVER SIDE

main55606-0D120iNCP150..MA201310-201606

DRIVER SIDE

main55606-0D121iNSP151..MA201607-201812

DRIVER SIDE

main55606-0D130iNCP150..TAIW201404-201506

DRIVER SIDE

main55606-0D131iNSP151..TAIW201507-201802

DRIVER SIDE

main55606-0D140iNCP15#..GCC..C201402-201509

DRIVER SIDE

main55606-0D141iNSP150,151..GCC..C201510-201712

DRIVER SIDE

main55606-0D150iNCP150..RHD..C201312-201609

DRIVER SIDE

main55606-0D180iNSP15#..RHD..CVT..A201708-202207

main55606-0D190iNSP151..LHD..(A,E);NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(A,E)201710-202207

main55606-0D200iNSP151..MA201901-202011

main55606-0D210iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main55606-0D220iNSP150..5F..D..C201801-202108

main55606-0D230iNSP151..F201803-202101

main55606-0D240iNSP151..G201804-201908

main55606-0D250iNSP151..H201807-201910

main55606-0D260iNSP150,151..D201807-201910

main55606-0D270iNSP150,151..I202003-202406

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-0D100iNCP15#..VN201307-201608

PASSENGER SIDE

main55607-0D110iNCP150..IDN..B201304-201506

PASSENGER SIDE

main55607-0D130iNSP151..MA201310-201812

PASSENGER SIDE

main55607-0D140iNCP150..TAIW201404-201604

PASSENGER SIDE

main55607-0D150iNSP150,151..GCC..C201402-201712

PASSENGER SIDE

main55607-0D160iNSP151..TH..G..C201312-201707

PASSENGER SIDE

main55607-0D190iNSP150..5F..G..A201708-202108

main55607-0D200iNSP150..5F..GCC..D..A201710-202108

main55607-0D210iNSP151..MA201901-202011

main55607-0D220iNSP151..5F..D..C;NSP151..IDN..(G,R)201801-202207

main55607-0D230iNSP150..5F..D..C201801-202108

main55607-0D240iNSP151..F201803-202101

main55607-0D250iNSP151..G201804-201908

main55607-0D260iNSP151..H201807-201910

main55607-0D270iNSP150,151..D201807-201910

main55607-0D280iNSP150,151..I202003-202406

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0D130-C0iNSP151..VN201307-201807

BLACK,TRIM0#,2#

main73970-0D140-C0iNCP150..TH..V201304-201603

BLACK,TRIM2#

8202

521610K040CUSHION, REAR BUMPER GUARD, NO.1

main52161-0K040

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

90105T0041

main90105-T0041

90105T0194

main90105-T0194

9011908516

main90119-08516

9011908C11

main90119-08C11

90119T0106

main90119-T0106

90119T0314

main90119-T0314

90119T0321

main90119-T0321

9015960431

main90159-60431

9015960613

main90159-60613

9015970003

main90159-70003

90159T0014

main90159-T0014

90159T0037

main90159-T0037

90167T0012

main90167-T0012

90178T0006

main90178-T0006

90178T0019

main90178-T0019

9017906115

main90179-06115

9046710201

main90467-10201

9155380616

main91553-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

42 parts on this diagram · 23 diagrams in section
