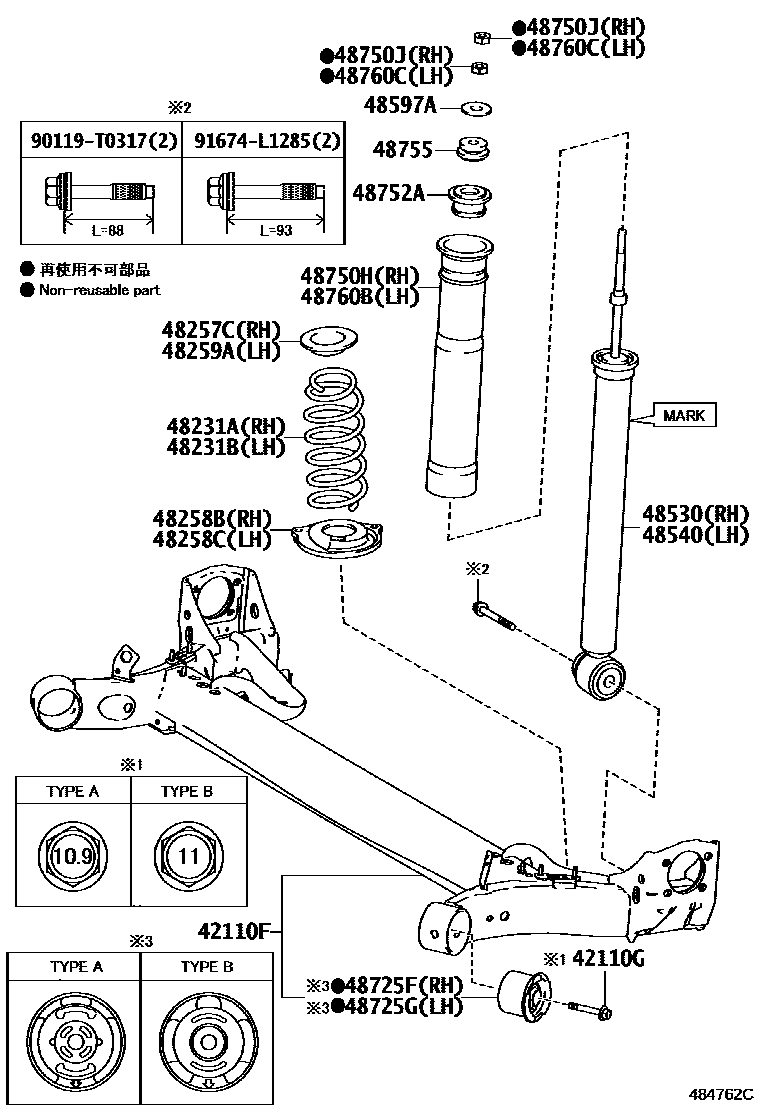

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-0D421iNCP150..IDN..(D,R)..B201304-201508

sub42110-0D422

main42110-0D422iNSP151..MA..(D,R)201509-202406

main42110-0D431iNCP150..IDN..G..B201304-201508

sub42110-0D432

main42110-0D432iNSP151..PH201509-202207

main42110-0D432iNCP151..5F..G;NCP151..LHD..GEN..G;NCP150..TH..(G,V)..B201509-201603

SINGAPORE SPEC

main42110-0D490iNCP151..C;NCP150..TH..D..C;NCP150..GCC..G..C;NCP150..(GCC,IDN)..(D,R)..C201312-201509

sub42110-0D491

main42110-0D491iNSP150..5F..D..C;NSP151..CVT..D..C201801-202207

main42110-0D491iNCP150..TH..R..C201510-201712

BRUNEI SPEC

main42110-0D500iNCP150..TH..R..C201312-201509

sub42110-0D501

main42110-0D501iNCP150..TH..R..C;NCP150..RHD..G..C201510-201712

main42110-0D501iNSP151..IDN..G201801-202207

BRUNEI SPEC

main42110-0D560iNSP151..MA..(D,R)201911-202011

main42110-0D580iNSP151..H201807-201910

main42110-0D600iNSP151..MA..(G,V)201911-202011

42110GBOLT (FOR REAR AXLE BEAM)

main90119-12385iNSP151..TH..B201404-202406

TYPE B:REFER ILLUST.

main90119-12385iNSP151..F,H201803-202101

main90119-T0350iNCP15#..PH201304-201710

TYPE A:REFER ILLUST.

sub90119-T0597

main90119-T0598iNSP150,151..PH201708-202406

TYPE A:REFER ILLUST.

48231ASPRING, COIL, REAR RH

main48231-0D470iNCP15#..(GCC,GEN,TH)..D..B201304-201608

main48231-0D480iNSP150,151..VN201304-202207

main48231-0D500iNSP150..D..I202003-202406

main48231-0D520iNCP150..4FC..MA..D201310-201608

main48231-0D530iNSP151..CVT..MA201310-201812

main48231-0D540iNCP150..TAIW..D201404-201604

main48231-0D550iNCP150..TAIW..(R,V)201404-201802

main48231-0D620iNCP15#..D..C201312-201609

main48231-0D630iNCP15#..(G,R)..C201312-201712

main48231-0D690iNSP151..F201803-202101

main48231-0DA10iNSP151..5F..PH201604-202207

main48231-0DA20iNSP151..MA201608-202011

main48231-0DA30iNSP151..5F..G..C201610-201712

main48231-0DA40iNSP150,151..G..I201710-202406

main48231-0DA40iNSP150..CVT..GEN..(G,R);NSP151..LHD..CVT..GEN..A;NSP150,151..LHD..5F..GEN..(G,R)201710-202207

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48231-0DA40iNSP150..CVT..GEN..(G,R);NSP151..LHD..CVT..GEN..A;NSP150,151..LHD..5F..GEN..(G,R)201710-202207

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main48231-0DA40iNSP150..CVT..GEN..(G,R);NSP151..LHD..CVT..GEN..A;NSP150,151..LHD..5F..GEN..(G,R)201710-202207

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)

main48231-0DA50iNSP151..G201804-201908

main48231-0DA80iNSP151..AGT201807-201910

URUGUAY SPEC

main48231-0DB00iNSP151..(BZ,GEN)..H201807-201910

main48231-0DB20iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

48231BSPRING, COIL, REAR LH

main48231-0D470iNCP150..IDN..D..B201304-201608

main48231-0D480iNSP151..TH..B201304-202207

main48231-0D500iNSP150..D..I202003-202406

main48231-0D520iNCP150..4FC..MA..D201310-201608

main48231-0D530iNSP151..CVT..MA201310-201812

main48231-0D540iNCP150..TAIW..D201404-201604

main48231-0D550iNCP150..TAIW..(R,V)201404-201802

main48231-0D620iNCP15#..D..C201312-201609

main48231-0D630iNCP15#..(G,R)..C201312-201712

main48231-0D690iNSP151..F201803-202101

main48231-0DA10iNSP151..5F..GEN..G201604-202207

main48231-0DA20iNSP151..5F..MA201608-202011

main48231-0DA30iNSP151..5F..G..C201610-201712

main48231-0DA40iNSP150..CVT..GEN..(G,R);NSP151..LHD..CVT..GEN..A;NSP150,151..LHD..5F..GEN..(G,R)201710-202207

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)

main48231-0DA40iNSP151..RHD..GEN201710-202207

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48231-0DA40iNSP151..RHD..GEN201710-202207

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main48231-0DA40iNSP150,151..G..I201710-202406

main48231-0DA50iNSP151..G201804-201908

main48231-0DA80iNSP151..AGT201807-201910

URUGUAY SPEC

main48231-0DB00iNSP151..(BZ,GEN)..H201807-201910

main48231-0DB20iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0D041iNCP150..TAIW201304-202406

main48257-0D060iNCP150..MA201310-202011

main48257-0D130iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main48257-0D140iNSP151..G201804-201908

main48257-0D150iNSP151..H201807-201910

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0D120iNCP15#..(GCC,GEN,TH)..B201304-202406

main48258-0D130iNSP150..C;NSP151..(D,R)..C;NSP151..(GCC,IDN)..G..C201312-202207

main48258-0D140iNSP151..G201804-201908

main48258-0D150iNSP151..H201807-201910

main48258-0D160iNSP150,151..E201808-201912

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0D120iNSP151..D;NSP150..D,I;NSP152..HTWC;NSP151..MA,PKN201304-202406

main48258-0D130iNCP15#..C201312-202207

main48258-0D140iNSP151..G201804-201908

main48258-0D150iNSP151..H201807-201910

main48258-0D160iNSP150,151..E201808-201912

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0D041iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201304-202406

main48257-0D060iNSP151..MA201310-202011

main48257-0D130iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main48257-0D140iNSP151..G201804-201908

main48257-0D150iNSP151..H201807-201910

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-0D570iNCP150..IDN..(D,R)..B;NCP15#..(GCC,GEN,PH,TH,VN)..(D,G,R)..B201304-201608

MARK 48530-0D570

main48530-0D580iNCP150..TH..V;NCP150..IDN..G..B201304-201603

MARK 48530-0D580

main48530-0D660iNCP150..TAIW201404-201604

MARK 48530-0D660

main48530-0D700iNCP150..MA201310-201608

MARK 48530-0D700

main48530-0D780iNCP150..4FC..TH..C201312-201609

MARK 48530-0D780

main48530-0D790iNCP151..C;NCP150..TH..D..C;NCP150..GCC..G..C;NCP150..(GCC,IDN)..(D,R)..C201312-201609

MARK 48530-0D790

main48530-0DC50iNSP150,151..(GCC,GEN,PH,TH,VN)..B201604

MARK 48530-0DC50

main48530-0DC70iNSP151..MA201608-201812

MARK 48530-0DC70

main48530-0DC80iNSP151..TAIW201605-201802

MARK 48530-0DC80

main48530-0DC90iNSP150,151..C201610-201712

MARK 48530-0DC90

main48530-0DD40iNSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)201708-202207

MARK 48530-0DD40

main48530-0DD80iNSP151..F201803-202101

MARK 48530-0DD80

main48530-0DE00iNSP151..MA201901-202011

MARK 48530-0DE00

main48530-0DE20iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

MARK 48530-0DE20

main48530-0DE50iNSP151..G201804-201908

MARK 48530-0DE50

main48530-0DE70iNSP151..H201807-201910

MARK 48530-0DE70

main48530-0DF60iNSP150,151..I202003-202406

MARK 48530-0DF60

main48530-0DG70iNSP151..TH..B201903

MARK 48530-0DG70

main48530-0DG80iNSP151..TH..B201903

MARK 48530-0DG80

main48530-0DG90iNSP152..HTWCB;NSP150..LHD..(G,R)..(A,C);NSP150..RHD..CVT..(G,R)..A;NSP150,151..5F..(GEN,IDN)..D;NSP151..(GCC,GEN,IDN)..(G,R)..(A,C);NSP150,151..CVT..(GCC,GEN)..D..(201903-202406

MK.-0DG90 OR -0DF50

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-0D570iNCP150..IDN..(D,R)..B;NCP15#..(GCC,GEN,PH,TH,VN)..(D,G,R)..B201304-201608

MARK 48530-0D570

main48530-0D580iNCP150..TH..V;NCP150..IDN..G..B201304-201603

MARK 48530-0D580

main48530-0D660iNCP150..TAIW201404-201604

MARK 48530-0D660

main48530-0D700iNCP150..MA201310-201608

MARK 48530-0D700

main48530-0D780iNCP150..4FC..TH..C201312-201609

MARK 48530-0D780

main48530-0D790iNCP150..4FC..TH..C201312-201609

MARK 48530-0D790

main48530-0DC50iNSP150,151..(GCC,GEN,PH,TH,VN)..B201604

MARK 48530-0DC50

main48530-0DC70iNSP151..MA201608-201812

MARK 48530-0DC70

main48530-0DC80iNSP151..TAIW201605-201802

MARK 48530-0DC80

main48530-0DC90iNSP150,151..C201610-201712

MARK 48530-0DC90

main48530-0DD40iNSP150..5F..G..A;NSP150..5F..GCC..D..A201708-202207

MARK 48530-0DD40

main48530-0DD80iNSP151..F201803-202101

MARK 48530-0DD80

main48530-0DE00iNSP151..MA201901-202011

MARK 48530-0DE00

main48530-0DE20iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201801-202207

MARK 48530-0DE20

main48530-0DE50iNSP151..G201804-201908

MARK 48530-0DE50

main48530-0DE70iNSP151..H201807-201910

MARK 48530-0DE70

main48530-0DF60iNSP150,151..I202003-202406

MARK 48530-0DF60

main48530-0DG70iNSP151..TH..B201903

MARK 48530-0DG70

main48530-0DG80iNSP151..TH..B201903

MARK 48530-0DG80

main48530-0DG90iNSP150,151..(AGT,BZ,GEN,IND,MA,PH,PKN,VN)..(B,D,E,G,H,I)201903-202406

MK.-0DG90 OR -0DF50

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320iNCP15#..(GCC,GEN,TH)..B201304-202406

48725FBUSH, REAR AXLE CARRIER, RH

main48725-0D120iNSP152..HTWC;NSP150,151..D,E,I201708-202406

TYPE A:REFER ILLUST.

main48725-0D120iNSP150..5F..G..B;NSP151..VN..R..B;NSP150..LHD..GEN..G..B;NSP151..(MA,PH,TH,VN)..(G,V)..B;NCP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304-202011

main48725-0D140iNSP151..F201803-202101

TYPE B:REFER ILLUST.

main48725-0D140iNCP150..TAIW201404-201604

main48725-0D150iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201312-202207

main48725-0D180iNSP151..G201804-201908

main48725-0D190iNSP151..H201807-201910

48725GBUSH, REAR AXLE CARRIER, LH

main48725-0D120iNSP151..MA201708-202406

TYPE A:REFER ILLUST.

main48725-0D120iNSP150..5F..G..B;NSP151..VN..R..B;NSP150..LHD..GEN..G..B;NSP151..(MA,PH,TH,VN)..(G,V)..B;NCP15#..(GCC,GEN,IDN,MA,PH,TH,VN)..B201304-202011

main48725-0D140iNCP150..TAIW201404-201604

main48725-0D140iNSP151..F201803-202101

TYPE B:REFER ILLUST.

main48725-0D150iNSP150..5F..D..C;NSP151..CVT..D..C201312-202207

main48725-0D180iNSP151..G201804-201908

main48725-0D190iNSP151..H201807-201910

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0D060iNCP15#..B201304-201508

sub48750-0D061

main48750-0D061iNSP151..MA;NSP150,152..A,D,E;NSP151..LHD..GEN..A;NSP151..(GCC,PH,TAIW,TH,VN)..(A,D,E,F)201509-202006

sub48750-0D210

main48750-0D160iNCP15#..C201312-201503

sub48750-0D161

main48750-0D161iNCP15#,NSP150,151..C201504-202006

main48750-0D190iNSP151..G201804-201908

main48750-0D210iNSP150..5F..G..A;NSP150..5F..GCC..D..A202007-202207

main48750-0D220iNSP150..5F..D..C;NSP151..CVT..D..C202007-202207

main48750-52161iNSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN201710-202207

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)

main48750-52161iNSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN201710-202207

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48750-52161iNSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN201710-202207

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main48750-52161iNSP150,151..I201710-202406

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-T0011iNCP150..TAIW201304-202406

(L)

main90170-T0011iNCP150..MA201310-202011

main94130-61000iNCP150..IDN..B201304-202406

(J)

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-0D020iNSP151..D,E;NSP152..HTWC;NSP150..D,E,I;NSP151..MA,PKN201304-202406

main48752-0D120iNSP151..TH..G..C201312-202207

main48752-0D130iNSP151..G201804-201908

main48752-0D140iNSP151..H201807-201910

48755SUPPORT, REAR SUSPENSION

main48755-0D100iNCP150..IDN..B201304-202406

main48755-0D200iNCP15#..C201312-202207

main48755-0D220iNSP151..G201804-201908

main48755-0D230iNSP151..H201807-201910

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-0D060iNCP15#..B201304-201508

sub48750-0D061

main48750-0D061iNSP151..MA;NSP150,152..A,D,E;NSP151..LHD..GEN..A;NSP151..(GCC,PH,TAIW,TH,VN)..(A,D,E,F)201509-202006

sub48750-0D210

main48750-0D160iNCP15#..C201312-201503

sub48750-0D161

main48750-0D161iNCP15#,NSP150,151..C201504-202006

main48750-0D190iNSP151..G201804-201908

main48750-0D210iNSP151..TH..A;NSP151..LHD..GEN;NSP150,152..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A;NSP151..(GCC,MA)..(A,B)202007-202207

main48750-0D220iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C202007-202207

main48750-52161iNSP151..RHD..GEN201710-202207

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)

main48750-52161iNSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN201710-202207

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48750-52161iNSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN201710-202207

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

main48750-52161iNSP150,151..I201710-202406

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-T0011iNCP150..IDN..B201304-202406

(L)

main90170-T0011iNCP150..MA201310-202011

main94130-61000iNSP151..TH..B201304-202406

(J)

90119T0317

main90119-T0317

91674L1285

main91674-L1285

21 parts on this diagram · 1 diagram in section
