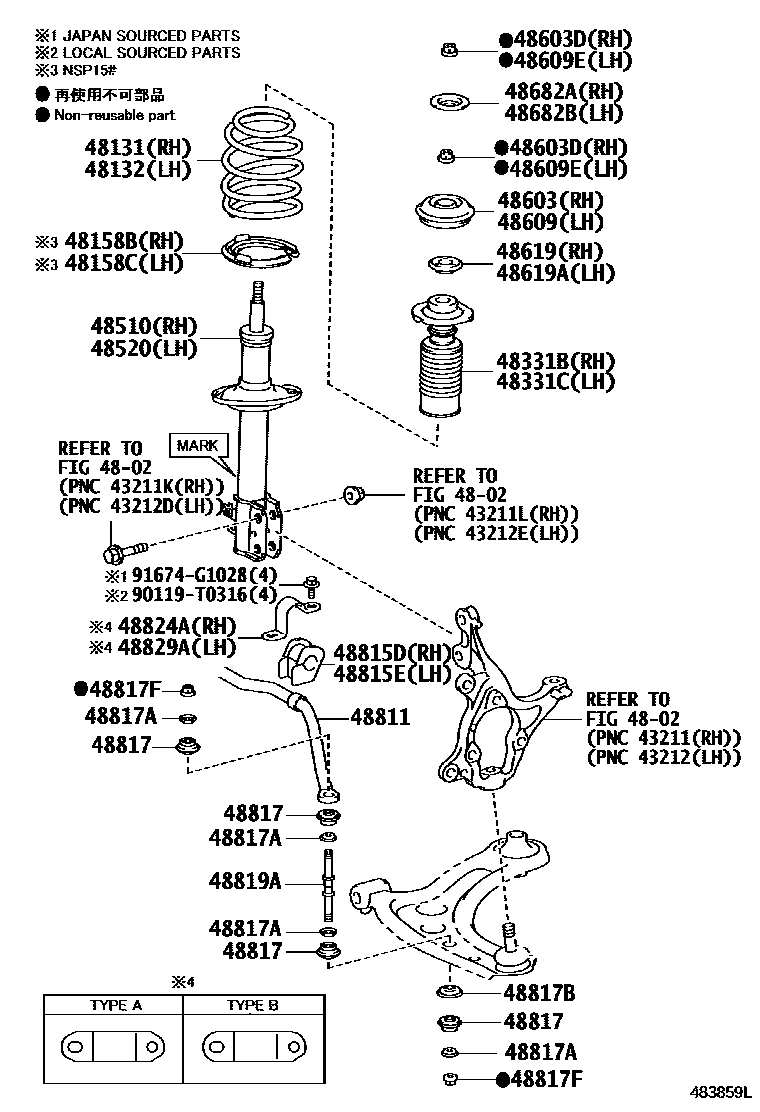

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
main48131-0DE20iNSP151..CVT..R..E;NSP150..CVT..GEN..G;NSP151..LHD..CVT..(GEN,PH,VN)..G..(A,D,E)201710-202207
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)
ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)
URUGUAY SPEC
URUGUAY SPEC
48132SPRING, FRONT COIL, LH
main48131-0DE20iNSP151..CVT..R..E;NSP150..CVT..GEN..G;NSP151..LHD..CVT..(GEN,PH,VN)..G..(A,D,E)201710-202207
ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)
ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
URUGUAY SPEC
URUGUAY SPEC
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-0D080iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201604-202406
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
main48304-0D240iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201708-202406
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0D470
MARK 48510-0D500
MARK 48510-0D582,SINGAPORE SPEC
MARK 48510-0D582
MARK 48510-0D591
sub48510-0D592
MARK 48510-0D592
MARK 48510-0D730
MARK 48510-0D740
MARK 48510-0DC40
MARK 48510-0DC50
MARK 48510-0DD00
MARK 48510-0DD30,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)
MARK 48510-0DD30
MARK 48510-0DD30,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)
MARK 48510-0DD30,ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
MARK 48510-0DD40
MARK 48510-0DD60
MARK 48510-0DD80
MARK 48510-0DE10
MARK 48510-0DE30
MARK 48510-0DE80
MARK 48510-0DF10
MARK 48510-0DF80
MARK 48510-0DJ00
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-0D470
MARK 48510-0D500
MARK 48510-0D582,SINGAPORE SPEC
MARK 48510-0D582
MARK 48510-0D591
sub48510-0D592
MARK 48510-0D592
MARK 48510-0D730
MARK 48510-0D740
MARK 48510-0DC40
MARK 48510-0DC50
main48510-0DD00iNSP150..CVT..G..A;NSP151..LHD..GEN..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP151..(GCC,PH,TH,VN)..(A,D,E);NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)201708-202207
MARK 48510-0DD00
MARK 48510-0DD30,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP)
MARK 48510-0DD30
MARK 48510-0DD30,ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
MARK 48510-0DD30,ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)
MARK 48510-0DD40
MARK 48510-0DD60
MARK 48510-0DD80
MARK 48510-0DE10
MARK 48510-0DE30
MARK 48510-0DE80
MARK 48510-0DF80
MARK 48510-0DJ00
MARK 48520-0D460
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
(L)
(J)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
(L)
(J)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
48815DBUSH, FRONT STABILIZER BAR, RH
main48815-0D190iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201304-202406
sub48815-0D211
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
main90948-02179iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C¥100201304-202406
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817FNUT(FOR FRONT STABILIZER BAR)
main90177-T0007iNSP150..E,I;NSP152..HTWC;NSP151..5F..E;NSP151..RHD..MTM..(B,G,I);NSP151..CVT..(GEN,VN)..(E,H);NSP151..CVT..(AGT,BZ,IND,MA,PKN)201708-202406
(L)
(J)
48819ABOLT, FRONT STABILIZER
LIMO PACKAGE
48824ABRACKET, FRONT STABILIZER, NO.1 RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
LIMO PACKAGE
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-0D030iNSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A201304-202406
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
LIMO PACKAGE
90119T0316
main90119-T0316
91674G1028
29 parts on this diagram · 2 diagrams in section
