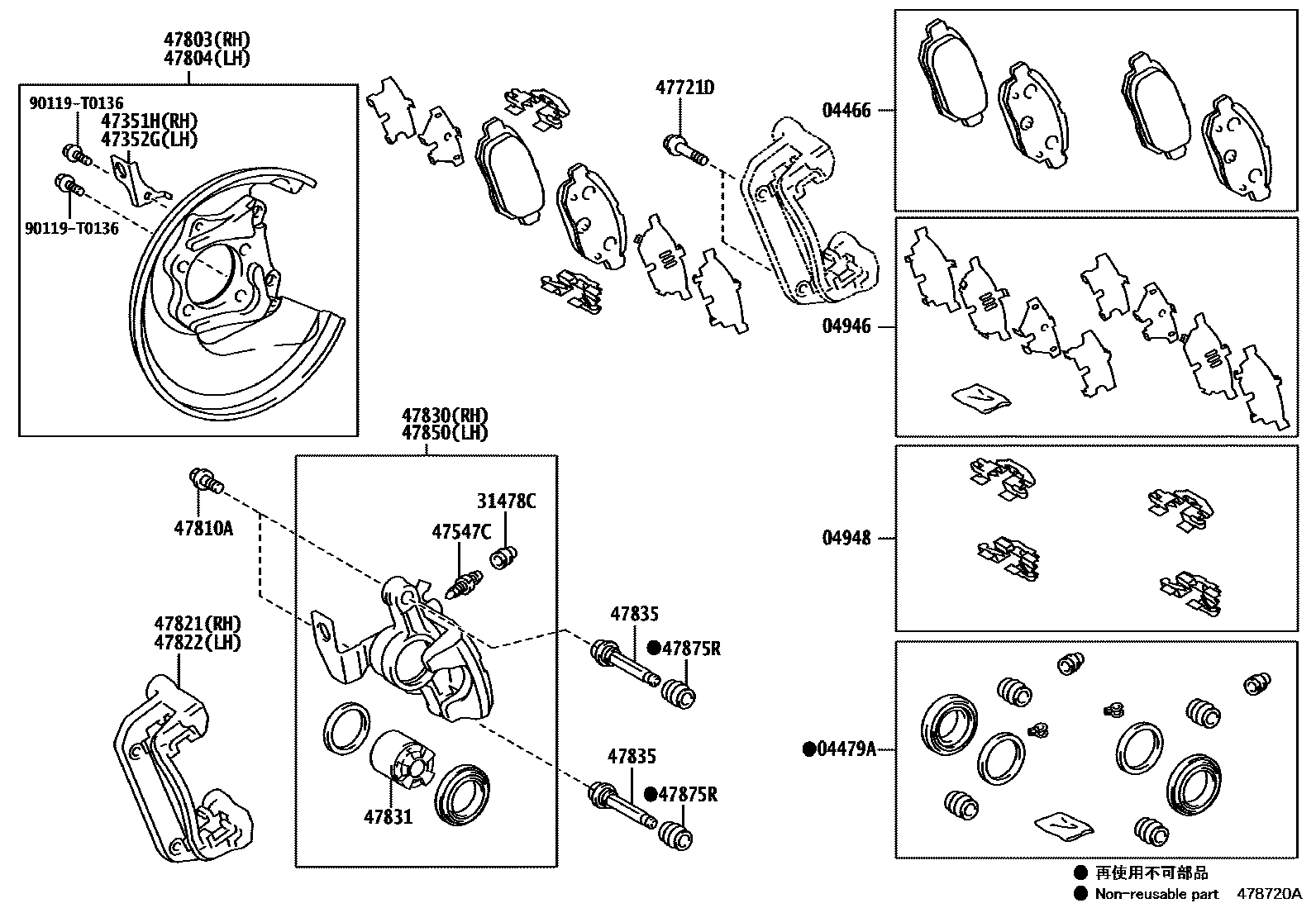

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52170iNCP150..RHD..G..C¥6,100201304-202207

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52250iNCP150..IDN..G..B201304-202207

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080iNCP150..IDN..G..B¥620201304-202207

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iNCP150..IDN..G..B¥1,040201304-202207

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iNCP150..IDN..G..B¥160201304-202207

47351HBRACKET, FLEXIBLE HOSE, RH

main47351-0D160iNCP151..5F..G;NCP151..LHD..GEN..G;NCP150..TH..(G,V)..B201304-202207

main47351-0D210iNSP151..IDN..G;NSP151..TH..R..C201312-201712

main47351-0D210iNCP150..TH..R..C201501-202207

BRUNEI SPEC

47352GBRACKET, FLEXIBLE HOSE, LH

main47352-0D130iNCP150..PH201304-202207

main47352-0D180iNSP151..CVT..IDN..R201501-202207

BRUNEI SPEC

main47352-0D180iNCP150..RHD..G..C201312-201712

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iNCP150..IDN..G..B¥220201304-202207

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404iNSP151..(G,V)..G¥100201804-201908

*10-1.25PX24-21.5

main90105-T0180iNCP151..5F..G;NCP151..LHD..GEN..G;NCP150..TH..(G,V)..B201304-202207

*10-1.25PX24-21.5

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-0D040iNCP150..IDN..G..B201304-202207

main47803-0D050iNSP151..TH..G..C201312-201712

main47803-0D050iNCP150..TH..R..C201501-202207

BRUNEI SPEC

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-0D040iNSP151..VN201304-202207

main47804-0D050iNSP151..CVT..IDN..R201501-202207

BRUNEI SPEC

main47804-0D050iNCP150..RHD..G..C201312-201712

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iNSP151..TH..G..C¥90201304-202207

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151iNCP150..IDN..G..B¥5,200201304-202207

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iNCP150..IDN..G..B¥5,200201304-202207

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52200iNSP151..TH..G..C201304-202207

47831PISTON, REAR DISC BRAKE

main47831-52090iNCP150..IDN..G..B¥670201304-202207

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iNCP150..IDN..G..B¥400201304-202207

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52200iNCP150..IDN..G..B¥26,100201304-202207

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iNCP150..IDN..G..B¥220201304-202207

90119T0136

main90119-T0136

20 parts on this diagram · 1 diagram in section
