BRAKE BOOSTER & VACUUM TUBE

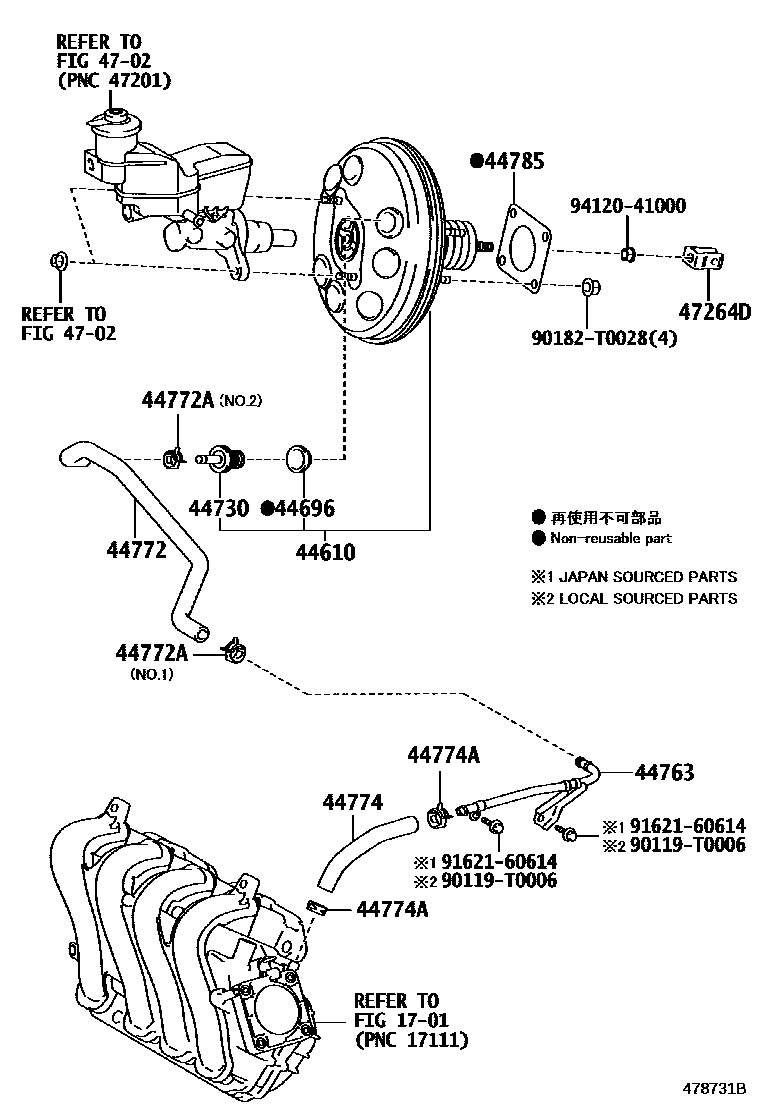

Parts diagram
1701
44610BOOSTER ASSY, BRAKE
main44610-09F50i201807-201910
main44610-09F60i201807-201910
main44610-0D380i201501-201609
BRUNEI SPEC
main44610-0D380i201304-201609
main44610-0D390i201304-201609
main44610-0D390i201304-201603
ABS-WITH(W/BRAKE ASSIST)
main44610-0D400i201304-201609
main44610-0D400i201501-201603
SINGAPORE SPEC
main44610-0D410i201304-201609
main44610-0D420i201304-201603
main44610-0D430i201304-201609
main44610-0D440i201307-201606
main44610-0D450i201307-201606
main44610-0D460i201307-201609
main44610-0D470i201307-201609
main44610-0D480i201308-201603
ABS-WITHOUT
main44610-0D480i201307-201608
main44610-0D510i201404-201604
main44610-0D680i201604-202406
main44610-0D680i201710-202207
LATIN AMERICA SPEC
main44610-0D690i201604-202207
main44610-0D710i201604-202207
main44610-0D730i201604-202108
main44610-0D740i201710-202207
PERU SPEC
main44610-0D740i201710-202207
ECUADOR SPEC
main44610-0D740i201710-202207
CHILE SPEC
main44610-0D740i201710-202207
LATIN AMERICA SPEC
main44610-0D740i201710-202207
MEXICO SPEC
main44610-0D740i201710-202207
BAHAMA SPEC
main44610-0D740i201807-201910
main44610-0D740i201710-202109
BOLIVIA SPEC
main44610-0D740i201604-201709
LATIN AMERICA SPEC&ECUADOR SPEC&VSC-WITH
main44610-0D740i202009-202207
COSTA RICA SPEC
main44610-0D750i201604-202207
main44610-0D750i201710-202207
ASEAN GENERAL SPEC
main44610-0D750i201710-202207
LAOS SPEC
main44610-0D760i201710-202207
PERU SPEC
main44610-0D760i201604-201709
LATIN AMERICA SPEC&ECUADOR SPEC&VSC-WITH
main44610-0D760i201807-201912
main44610-0D760i201710-202207
LATIN AMERICA SPEC
main44610-0D760i201710-202109
ASEAN GENERAL SPEC
main44610-0D760i201710-202109
BOLIVIA SPEC
main44610-0D760i202009-202207
COSTA RICA SPEC
main44610-0D760i201710-202207
LAOS SPEC
main44610-0D760i201710-202207
CHILE SPEC
main44610-0D760i201710-202207
ECUADOR SPEC
main44610-0D760i201710-202207
MEXICO SPEC
main44610-0D770i201604-202207
main44610-0D780i201604-202207
main44610-0D790i201604-202207
main44610-0D800i201604-201709
LATIN AMERICA SPEC&ABS-WITHOUT
main44610-0D800i201607-201807
main44610-0D810i201604-202207
main44610-0D820i201607-201807
main44610-0D830i201610-201712
BRUNEI SPEC
main44610-0D840i201610-201712
main44610-0D850i201610-201712
main44610-0D860i201610-201712
main44610-0D870i201610-201712
main44610-0D880i201610-201911
main44610-0D881i201911-202207
main44610-0D890i201610-201911
main44610-0D891i201911-202207
main44610-0DA00i201605-201802
main44610-0DB50i201608-202406
main44610-0DB80i201804-201908
main44610-0DB90i201804-201908
main44610-0DC10i201801-201911
main44610-0DC11i201911-202207
main44610-0DC20i201801-201911
main44610-0DC21i201911-202207
main44610-0DC30i201801-201911
BRUNEI SPEC
main44610-0DC31i201911-202207
BRUNEI SPEC
main44610-0DC40i201801-201911
main44610-0DC41i201911-202207
main44610-0DC50i201803-202101
main44610-0DD20i201804-201908
main44610-0DD30i201804-201908
main44610-0DD40i201804-201908
main44610-0DD50i201804-201908
main44610-0DD80i201911-202207
44696GROMMET, CHECK VALVE
main90016-AT003i201304-202406
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
main44730-09080i201807-201910
main44730-0D040i201804-201908
main44730-14050i201604-201911
NO.1:REFER ILLUST.
main44730-20080i201604-202101
NO.1:REFER ILLUST.
main44730-20170i201304-201911
main44730-20170i201604-201911
NO.2:REFER ILLUST.
main44730-28010i201804-201908
main44730-30060i201911-202207
NO.1:REFER ILLUST.
main44730-30060i201911-202108
main44730-30060i201907-202207
NO.1,2:REFER ILLUST.
main44730-52010i201907-202406
NO.1,2:REFER ILLUST.
main44730-52010i201911-202207
NO.2:REFER ILLUST.
main44730-52010i201911-202108
main44730-60070i201304-202406
main44730-60070i201604-202101
NO.2:REFER ILLUST.
44763TUBE, BOOSTER VACUUM
main44763-0D080i201304-201609
main44763-0D100i201404-201604
main44763-52080i201307-201609
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
main44772-0D120i201304-201608
main44772-0D130i201307-201608
main44772-0D140i201304-201910
NO.1:REFER ILLUST.
main44772-0D150i201304-201910
NO.2:REFER ILLUST.
main44772-0D180i201307-202207
NO.2:REFER ILLUST.
main44772-0D190i201307-202207
NO.1:REFER ILLUST.
main44772-0D230i201404-201802
NO.2:REFER ILLUST.
main44772-0D240i201404-201802
NO.1:REFER ILLUST.
main44772-0D250i201312-201609
main44772-0D260i201312-201609
NO.1:REFER ILLUST.
main44772-0D270i201312-201609
NO.2:REFER ILLUST.
main44772-0D280i201402-201609
NO.2:REFER ILLUST.
main44772-0D290i201402-201609
NO.1:REFER ILLUST.
main44772-0D300i201402-201609
main44772-0D360i201807-201910
NO.1:REFER ILLUST.
main44772-0D370i201807-201910
NO.2:REFER ILLUST.
main44772-0D380i201807-201910
main44772-0D410i201604-202406
main44772-0D450i201604-202207
main44772-0D460i201801-202207
NO.1:REFER ILLUST.
main44772-0D460i201610-201712
main44772-0D470i201610-202207
NO.2:REFER ILLUST.
main44772-0D480i201610-202207
NO.1:REFER ILLUST.
main44772-0D510i201804-201908
main44772-0D580i201803-202101
NO.2:REFER ILLUST.
main44772-0D590i201803-202101
NO.1:REFER ILLUST.
main44772-0D680i201911-202207
NO.1:REFER ILLUST.
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
main90467-16014i201304-202406
main90467-16014i201304-201609
NO.2:REFER ILLUST.
main96133-41500i201304-201609
NO.1:REFER ILLUST.
44774HOSE, UNION TO CONNECTOR TUBE
main44774-0D090i201708-201910
main44774-0D170i201807-201910
main44774-0D200i201604-202207
main44774-0D230i201610-202207
main95446-09130i201304-201609
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
main90466-T0018i201304-201609
main90467-16014i201604-202207
main96133-41500i201307-201604
main96136-41801i201502-201609
44785GASKET, BRAKE BOOSTER
main44785-0D020i201304-202406
main44785-0D030i201310-202011
main44785-0D040i201804-201908
main44785-12040i201807-201910
main44785-16020i201404-202101
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
main47264-0D020i201804-201908
main47264-0D030i201404-202101
main47264-0D040i201304-202406
90119T0006
main90119-T0006
90182T0028
main90182-T0028
9162160614
main91621-60614
9412041000
main94120-41000

16 parts on this diagram · 13 diagrams in section
