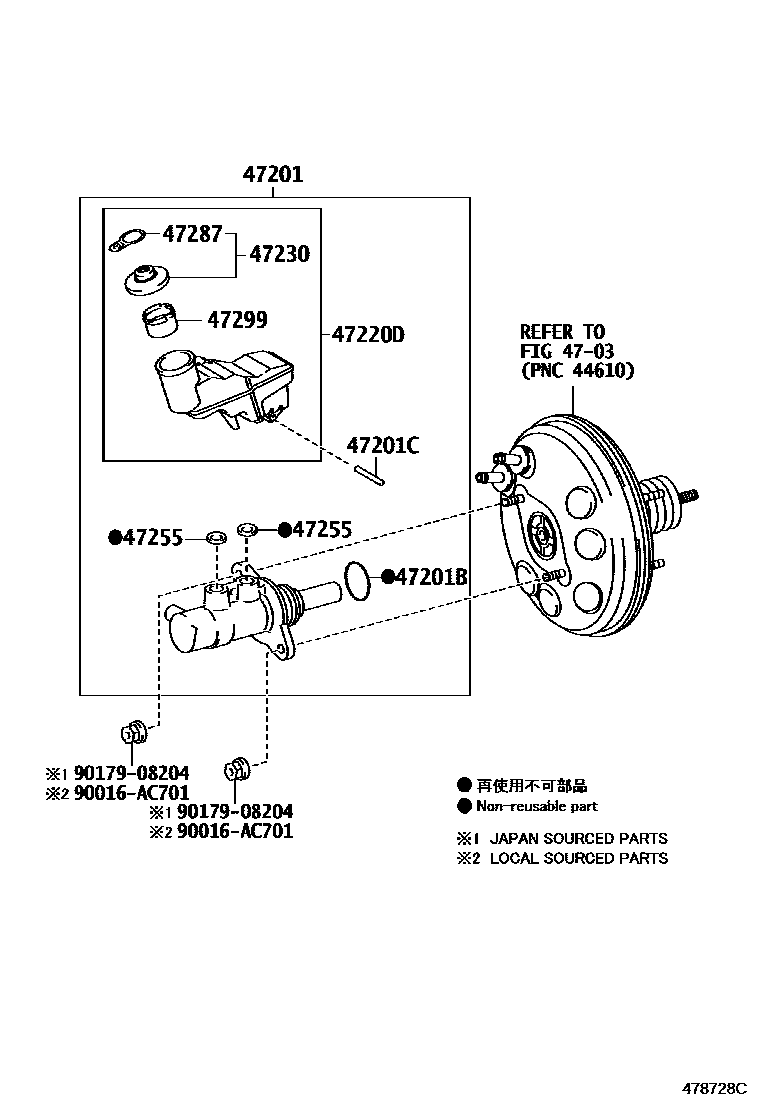

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09870iNSP151..CVT..H201807-201910

sub47201-09B50

main47201-09880iNSP151..6F..H201807-201910

sub47201-09B60

main47201-0D410iNCP150..4FC..IDN..R..B201304-202207

main47201-0D420iNCP150..5F..TH..B201304-201609

main47201-0D430iNCP150..RHD..4FC..G..C201304-201609

main47201-0D440iNSP150..5F..G..A201304-202108

main47201-0D450iNCP151..GCC..G..B;NCP150..4FC..(GCC,GEN)..B;NCP151..LHD..4FC..(GCC,GEN)..(D,R)..B201307-201609

main47201-0D460iNCP15#..LHD..5F..(GCC,GEN)..B201307-201609

main47201-0D470iNCP150..VN..G201307-201608

main47201-0D480iNCP150..VN..R201307-201608

main47201-0D490iNCP150..TAIW201404-201604

main47201-0D610iNSP151..TH..(D,R)..B201604-202406

main47201-0D620iNSP151..MA..(G,V)201604-202207

main47201-0D630iNSP151..GCC..A;NSP150..CVT..(GCC,PH)..(A,D)201604-202207

main47201-0D640iNSP150..5F..GCC..R..A;NSP150,151..5F..(D,R)..(D,E)201604-202207

main47201-0D650iNSP150,151..LHD..5F..GEN201604-202207

main47201-0D660iNSP151..CVT..IDN..(D,R)201610-201712

BRUNEI SPEC

main47201-0D670iNSP151..5F..(D,R)..C201610-201712

main47201-0D680iNSP151..TH..G..C201610-201712

main47201-0D690iNSP151..5F..G..C201610-201712

main47201-0D700iNSP150,151..CVT..GCC..C201610-201911

main47201-0D701iNSP150,151..CVT..GCC..C201911-202207

main47201-0D710iNSP150..5F..C201610-201911

main47201-0D711iNSP150..5F..D..C201911-202207

main47201-0D720iNSP151..TAIW201605-201802

main47201-0D740iNSP150..CVT..PH201604-202207

main47201-0D760iNSP151..CVT..PH201604-202207

main47201-0D770iNSP151..5F..PH201607-201807

main47201-0D810iNSP151..5F..MA201608-202406

main47201-0D820iNSP151..CVT..(D,E)201807-201912

main47201-0D830iNSP151..CVT..(D,R)..G201804-201908

main47201-0D840iNSP151..6F..(D,R)..G201804-201908

main47201-0D870iNSP151..CVT..G..G201804-201908

main47201-0D880iNSP151..6F..G..G201804-201908

main47201-0D890iNSP151..CVT..V..G201804-201908

main47201-0DA00iNSP151..6F..V201804-201908

main47201-0DA10iNSP151..CVT..IDN..(D,R)201801-201911

main47201-0DA11iNSP151..CVT..IDN..R201911-202207

main47201-0DA20iNSP151..5F..(D,R)..C201801-201911

main47201-0DA21iNSP151..5F..(D,R)..C201911-202207

main47201-0DA30iNSP151..CVT..IDN..G201801-201911

BRUNEI SPEC

main47201-0DA31iNSP151..CVT..IDN..G201911-202207

BRUNEI SPEC

main47201-0DA40iNSP151..5F..G..C201801-201911

main47201-0DA41iNSP151..5F..G..C201911-202207

main47201-0DA50iNSP151..F201803-202101

main47201-0DB00iNSP151..5F..D201807-201910

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iNSP151..G201804-201908

main90015-AH002iNCP150..TAIW201404-202101

main90016-AH903iNSP150,151..VN201304-202406

47201CRING PIN, BRAKE MASTER CYLINDER

main90015-AE401iNSP151..G,H201804-201910

main90029-15803iNCP151..5F..G;NCP150..(GCC,GEN,TH)..B;NCP151..LHD..(GCC,GEN)..B201304-202406

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D220iNSP151..TH..B201304-202406

main47220-0D230iNSP150..5F..G201304-202406

main47220-0D240iNCP15#..4FC..GCC..C201307-201609

main47220-0D250iNCP15#..LHD..5F..(GCC,GEN)..B201307-201609

main47220-0D260iNCP150..TAIW201404-201604

main47220-0D370iNSP150,151..CVT..GCC..B201604-202207

main47220-0D380iNSP150,151..LHD..5F..GEN201604-202207

main47220-0D390iNSP151..CVT..IDN..G;NSP151..RHD..CVT..(D,R)..C201610-202207

main47220-0D400iNSP151..5F..C201610-202207

main47220-0D410iNSP150,151..CVT..GCC..C201610-202207

main47220-0D420iNSP150..5F..C201610-202207

main47220-0D430iNSP151..TAIW201605-201802

main47220-0D450iNSP151..CVT..G201804-201908

main47220-0D460iNSP151..6F..G201804-201908

main47220-0D470iNSP151..F201803-202101

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D140iNSP151..G201804-201908

main47230-0D160iNSP151..H201807-201910

main47230-0D220iNCP151..LHD;NCP151..5F..G;NCP150..GCC,GEN,IDN,MA,PH,TH,VN201304-201505

sub47230-0D221

main47230-0D221iNCP15#..PH201505-202406

main47230-0D430iNSP151..TAIW201605-201707

main47230-0D440iNSP151..TAIW201707-202101

main47230-0K060iNCP150..TAIW201404-201604

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09050iNSP151..H201807-201910

main90016-AT001iNCP15#..MA,VN201304-202406

main90016-AT004iNSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C201610-202207

main90029-48001iNSP151..F201404-202101

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNSP150,151..PH201505-202406

main47287-20010iNCP151..LHD;NCP151..5F..G;NCP150..GCC,GEN,IDN,MA,PH,TH,VN201304-201707

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iNCP15#..(GCC,GEN,TH)..B201304-202406

main47299-0K010iNSP152201911-202207

(L)

main47299-20060iNSP151..F201803-202101

main47299-25010iNSP151..TAIW201404-201802

main47299-25010iNSP152201911-202207

(J)

90016AC701

main90016-AC701

9017908204

main90179-08204

11 parts on this diagram · 3 diagrams in section
