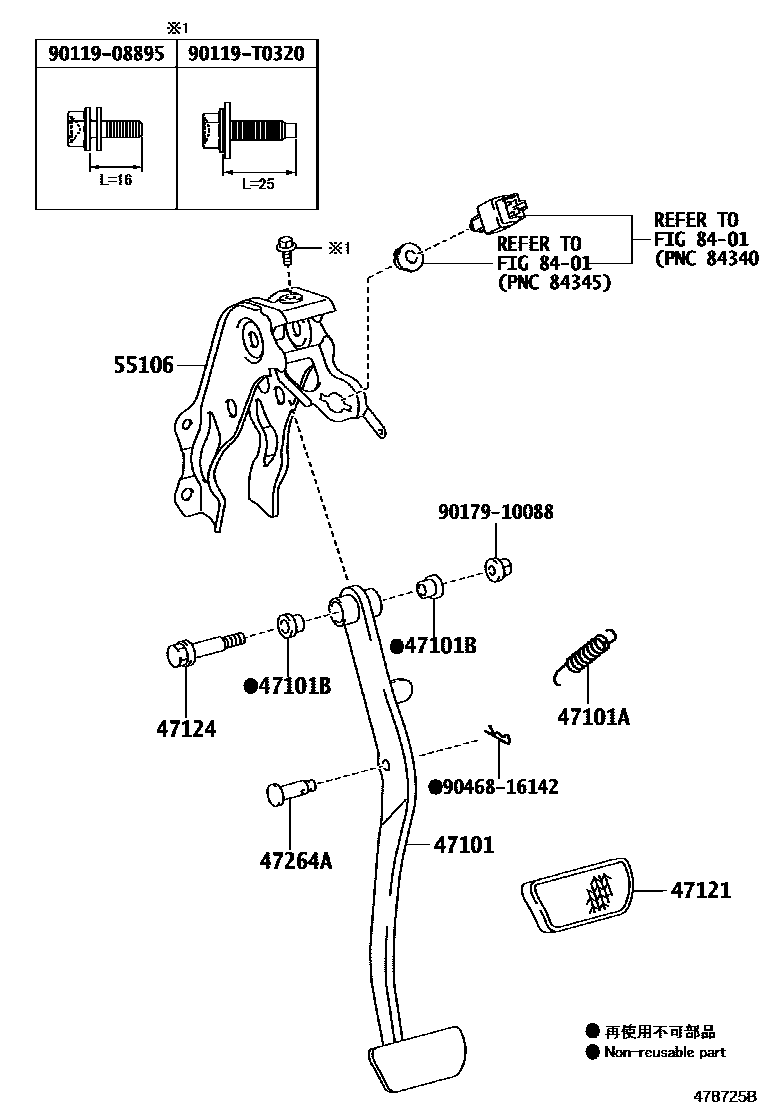

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0005 1

47101PEDAL SUB-ASSY, BRAKE

main47101-0D330iNSP150..5F..GCC..B201308-202207

main47101-0D340iNCP15#..LHD..4FC..(GCC,GEN)..B201308-202207

main47101-0D350iNSP150,151..RHD..5F..(A,B)201304-202108

main47101-0D360iNSP151..TH..B201304-202207

main47101-0D380iNCP15#..5F..PH201307-201912

main47101-0D390iNSP150,151..CVT..(D,E)201307-201912

main47101-0D410iNSP151..5F..C201312-202207

main47101-0D420iNCP150..RHD..4FC..C201312-202207

main47101-0D430iNSP150..5F..R..C201402-202207

main47101-0D440iNCP15#..4FC..GCC..C201402-202207

main47101-0D560iNSP151..6F..G201804-201908

main47101-0D570iNSP151..CVT..G201804-201908

main47101-0D610iNSP150,151..CVT..I202003-202406

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iNSP151..TAIW¥120201304-202406

(J)

main90506-14088iNSP151..H¥120201807-201910

main90506-T0015iNCP150..IDN..B201304-202406

(L)

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C¥120201304-202406

47121PAD, BRAKE PEDAL

main31321-02010iNSP151..6F..H201807-201910

main31321-0D050iNSP151..6F..G201804-201908

main31321-0D060iNSP150,151..5F..I202003-202406

main31321-0D070iNSP150..5F..G..A;NSP150..5F..GCC..D..A201801-202207

(L)

main31321-52010iNSP150..5F..D..C¥200201304-202207

main31321-52010iNSP151..5F..D..B¥200201801-202207

(J)

main47121-02010iNSP151..CVT..H201807-201910

main47121-02020iNSP151..TAIW201404-202101

main47121-0D060iNSP150,151..CVT..I202003-202406

main47121-0D070iNSP151..TH..B201801-202207

(L)

main47121-52010iNSP151..TH..G..C¥260201304-202207

main47121-52010iNSP151..TH..A;NSP150,152..CVT..A;NSP151..CVT..(GCC,GEN,MA)..(A,B)¥260201801-202207

(J)

47124SHAFT, BRAKE PEDAL

main90109-10167iNSP150,151..VN¥190201307-202207

main90109-10167iNSP150,151..CVT..I¥190202009-202406

(J)

main90109-T0044iNCP150..MA201304-202207

main90109-T0044iNSP150,151..CVT..I202009-202406

(L)

47264APIN(FOR PUSH ROD)

main90249-08051iNCP150..IDN..B¥170201304-202406

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D170iNSP151..LHD..A;NSP150..LHD..GEN..D;NSP150..LHD..(G,R)..A;NSP150..CVT..GCC..D..A201308-202207

main55106-0D180iNSP151..TH..A;NSP151..RHD..(GEN,MA);NSP150,152..RHD..CVT..A201304-202207

main55106-0D200iNSP151..IDN..G;NSP151..RHD..(D,R)..C201312-202207

main55106-0D210iNSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C201402-202207

main55106-0D220iNSP150,151..VN201307-201912

main55106-0D250iNSP150,151..CVT..I202003-202406

main55106-0D310iNSP151..G201804-201908

8401

9011908895

main90119-08895¥100

90119T0320

main90119-T0320

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

12 parts on this diagram · 4 diagrams in section
