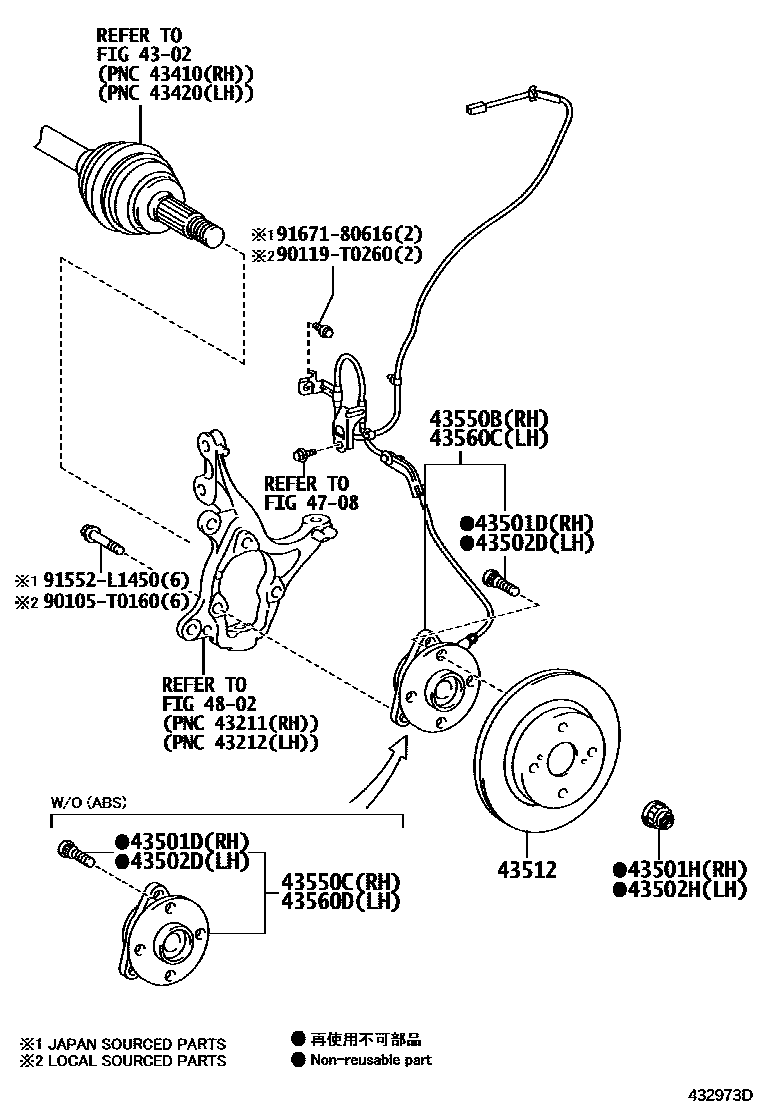

FRONT AXLE HUB

4302

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNSP151..F201312-202101

main90942-02081iNCP15#..(GCC,IDN)..C;NCP150..TH..(D,R)..C201304-202406

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNCP15#..MA,VN201304-202406

main90177-22001iNSP151..F201802-202207

(J)

main90177-T0017iNSP151..F201802-202207

(L)

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNCP150..TH..G..C201312-202101

main90942-02081iNCP150..TH..G..C201304-202406

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNSP150,151..GEN201304-202406

main90177-22001iNSP151..F201802-202207

(J)

main90177-T0017iNSP151..F201802-202207

(L)

43512DISC, FRONT

main43512-0D100iNSP151..MA..(G,V)201304-202207

main43512-0D150iNSP151..(D,R)..G201804-201908

main43512-0D170iNSP151..H201807-201910

main43512-0D180iNSP151..F201404-202101

main43512-0D190iNCP151..C;NCP150..TH..D..C;NCP150..GCC..G..C;NCP150..(GCC,IDN)..(D,R)..C201304-202207

main43512-0D280iNSP150,151..I202003-202406

43550BHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, RH

main43550-0D050iNCP150..TH..D..C;NSP151..CVT..D..C;NSP151..IDN..(G,R);NCP150..(GEN,MA)..D;NCP151,NSP150..PH..R..B;NCP151,NSP150..(GCC,GEN)..(B,C);NSP151..(GCC,GEN,MA,PH,TH,VN)..(B,201304-202406

main43550-0D060iNSP151..F201404-202101

main43550-0D150iNSP151..G201804-201908

main43550-0D160iNSP151..CVT..H201807-201910

sub43550-0D161

main43550-0D170iNSP151..6F..H201807-201910

sub43550-0D171

43550CHUB & BEARING ASSY, FRONT AXLE, RH

main43550-0D070iNCP150,NSP151..5F..IDN..D..C;NCP15#,NSP150..(IDN,PH,TH,VN)..D..B201304-201807

43560CHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, LH

main43560-0D050iNSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)201304-202406

main43560-0D060iNCP150,NSP151..TAIW201404-202101

main43560-0D100iNSP151..G201804-201908

main43560-0D110iNSP151..CVT..H201807-201910

sub43560-0D111

main43560-0D130iNSP151..6F..H201807-201910

sub43560-0D131

43560DHUB & BEARING ASSY, FRONT AXLE, LH

main43550-0D070iNCP150,NSP151..5F..IDN..D..C;NCP15#,NSP150..(IDN,PH,TH,VN)..D..B201304-201807

4708

4802

90105T0160

main90105-T0160

90119T0260

main90119-T0260

91552L1450

main91552-L1450

9167180616

main91671-80616

16 parts on this diagram · 1 diagram in section
